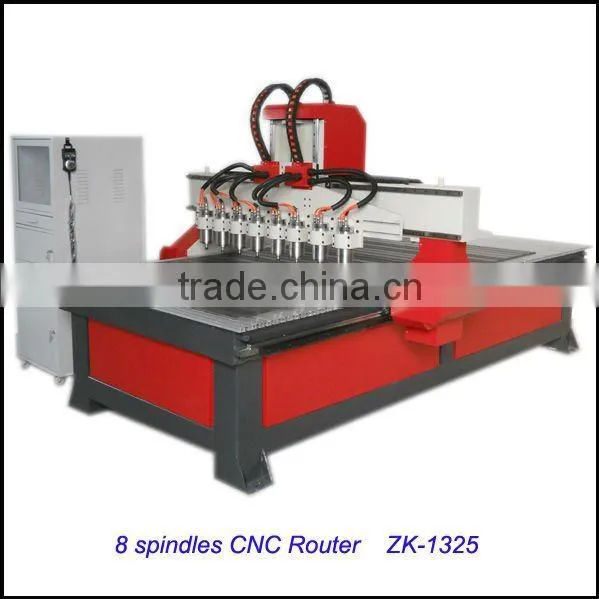

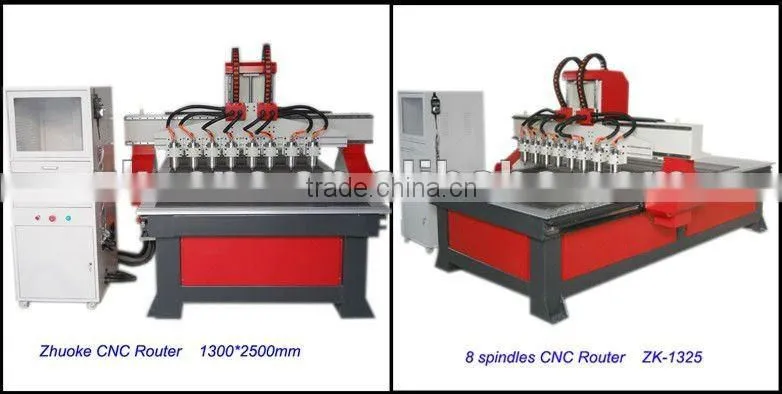

8 Heads CNC Engraving Machine 1300*2500mm
Machine featuers
1.Equipped with 8 heads (each has 1.5kw water-cooling spindle)can processing several workpieces by one time,
saving time and improving the efficiency.
The spindle heads distance is adjustable according to the workpiece processing size.
it also can just use one head if need.
2.T type gantry and cast iron machine bed. (we make machine bed more thick than usual)

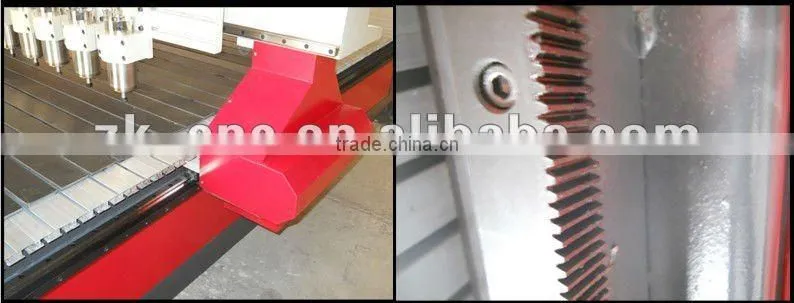

3.Hiwin linear square guide rail and oblique rack transmission

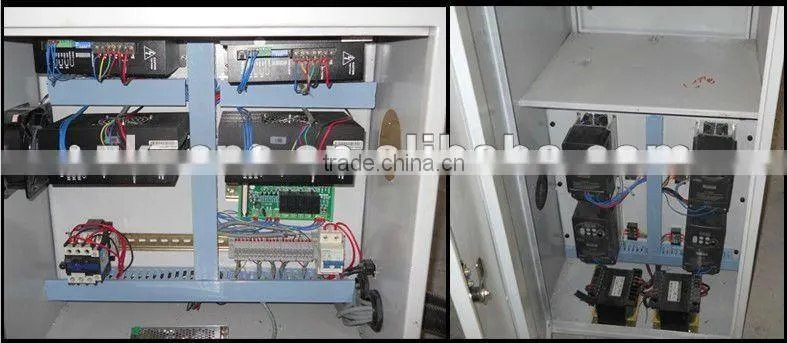

4. high precise control cabinet

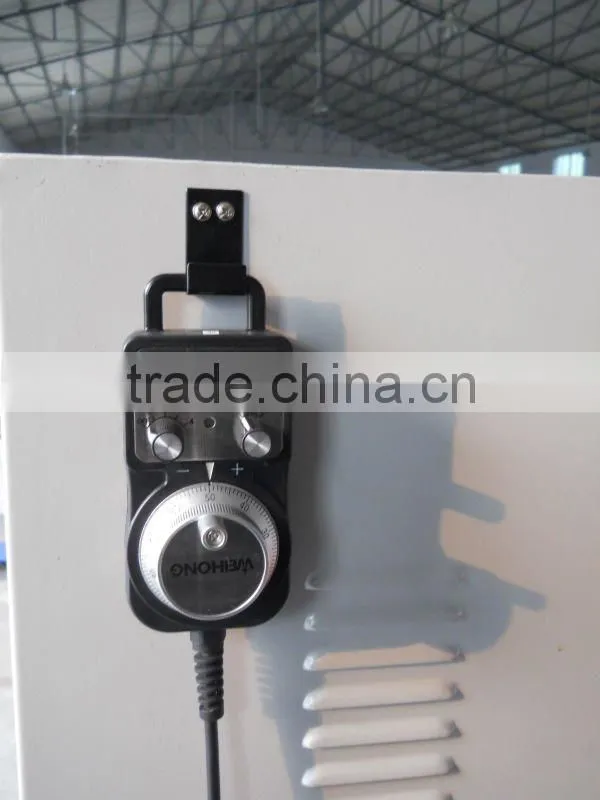

5.Equipped with the hand wheel, can control the machine in the distant.
Technical parameters
Items |
Description |
Items |
Description |
|
|
X Y-axis working area |
1300*2500mm |
Z-axis working area |
150mm or higher |
|
Transmission |
Rack and opinion |
Driving mode |
Stepper motor |
|
Spindle power |
1.5kw*8 |
Spindle speed |
0-24000rpm |
|
Traveling speed |
0-18000m/min |
Engraving speed |
0-10000mm/min |
|
Engraving command |
G code, *.Uoo, *.mmg, .plt |
Voltage |
AC 220V/50Hz |
|
Control system |
PCI NcStudio
|
Guide way |
Linear square guide way |
|
Optional items |
Vacuum adsorption table, water slot for metal/stone, rotary axis for cylindrical materials, dust collector,... |
|||
Applications

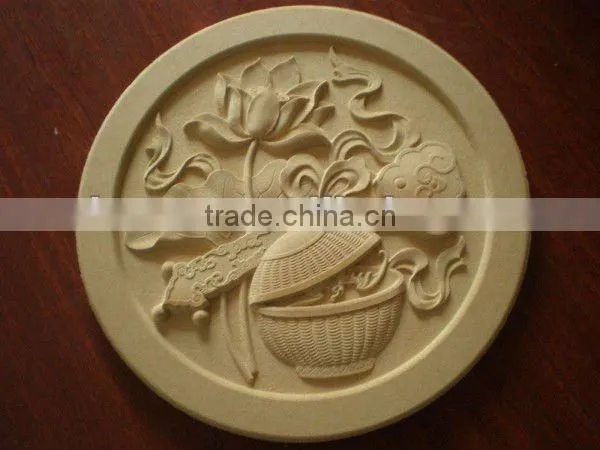

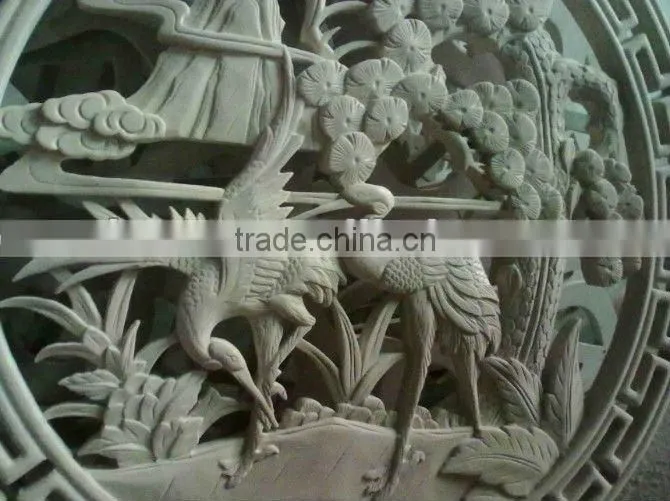

This series products are designed specially for rosewood,classical furniture processing 3D relief sculpture in a large amount and small workpiece processing .suitable to process wood cabinet, art relief screen, craft fan window ,relief craft gift ,solid wood art wall painting ,wood calligraphy engraving , art photo frame , the table of electrical equipment , sports equipment violin cambered surface, non-ferrous metal engraving and cutting Working samples
We also have other models , you can chose 2,4,6 heads .
1200*1200mm 1300*1300mm 1200*1500mm 1200*1800mm 1200*2400mm etc.
