CNC Wood Router 2 spindles (ZK-1325-2)
Applications
Woodworking industry: wave plate processing, wood cabinet, cupboard door, fine pattern’s engraving, carving of the antique furniture, craft wood door, paint-free door, byobu, craft casement,etc.
Also can be used in
Advertising industry: advertising signs& label making, engraving of Acrylic, crystal words’ processing, plastic molding’s making, etc.
Crafts& gifts: toys, and processing of copper, aluminum, plastic, double-color board, marble
Machine features

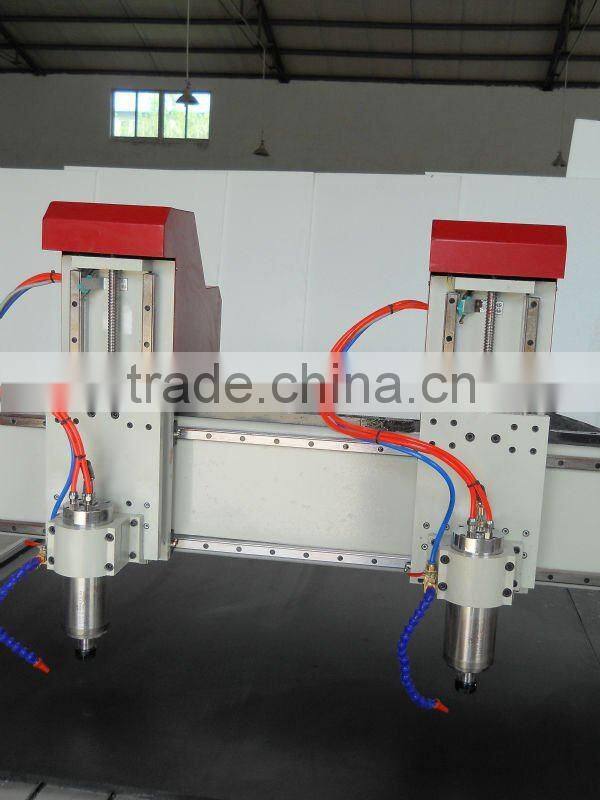

1.Two water-cooling spindles with each has 2.2kw power

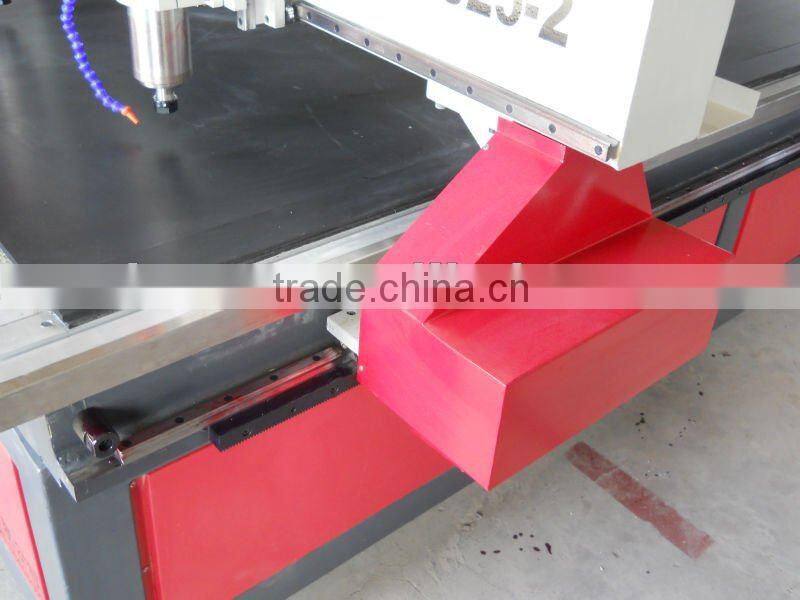

2.Cast iron machine bed , T type gantry, and linear square guide rail

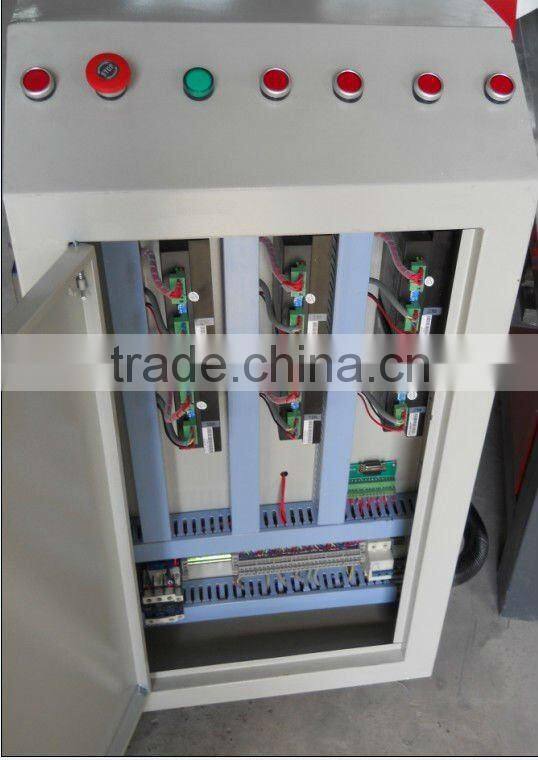

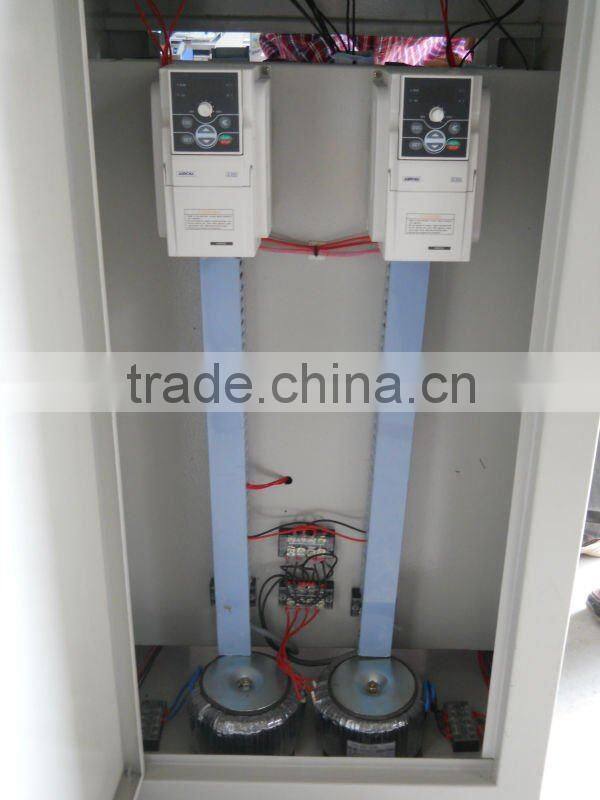

3.Control cabinet with high efficiency accessories
4.Ncstudio control system , can operated by computer .
Technical Data
Effective working area | 1300(X)mm*2500(Y)mm*200(Z)mm |
Max. thickness of the materials | ≤200mm(the distance between Z-axis and the bottom of the working station) |
Materials | iron casting machine bed |
Guide rail | Linear square guide rail |
Transmission | Rack for X Y-axis, ball screw for Z-axis |
Driving mode | Stepper motor |
Spindle motor | 2.2kw water cooling( or air cooling) |
Spindle speed | 0-18000rpm/min |
Empty traveling speed | 0-60000mm/min |
Engraving speed | 0-25000mm/min |
Voltage | AC 220V 50/60Hz or AC 380V 50/60Hz |
Resetting accuracy | 0.05mm |

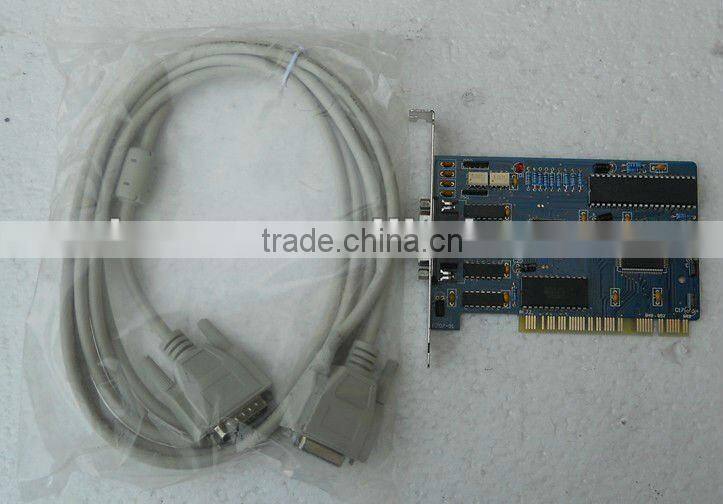

Control system | NcStudio card |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Packing dimension | 3200*2050*1800mm |
Samples display
Option accessories:
1. Rotary axis
----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials’ length and diameter. Then we can add right rotary axis to the machine.
2. DSP control
----For more convenient , offline computer .
3. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing the materials on the working table, especially for bigger working table.
4. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
Warranty:
One year for machine
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
