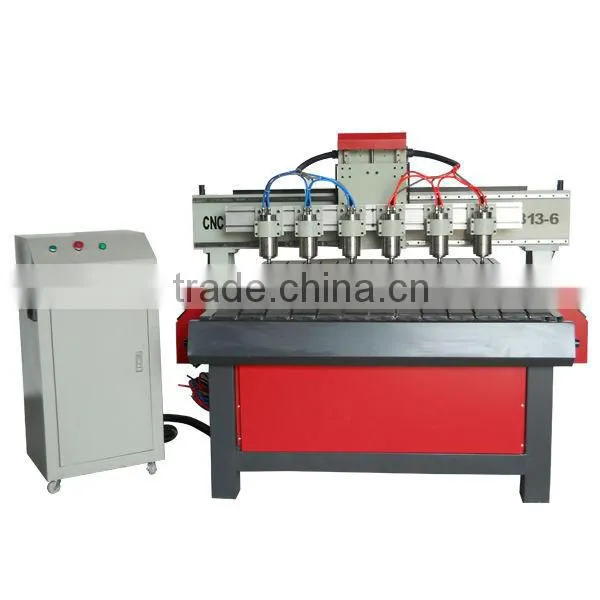

6 Heads Embossment CNC Router ZK-1313-6
Application
Mainly used for relief processing, wood door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving, screen, calligraphy tablet design, wood furniture, computer tables, and so on.
Features
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped with T type gantry and thickening cast iron machine bed
3. Equipped with 6 spindle heads, can processing several work pieces by one time, saving time and improving the efficiency.
4. The spindle heads distance is adjustable according to the work piece processing size.
5. It can also just open any one spindle head when working.
6. Can be controlled by computer, showing the processing path and estimated processing time.
7. Linear square guide rail, high precision and long life time, rack and pinion transmission, high speed
8.Function of re-carving after break point and power off, reducing the materials wasting.
9. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Technical parameters
Items |
Description |
Optional items |
Effective working area |
1300(X)mm*1300(Y)mm*200(Z)mm |
|
Max.thickness of the materials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
|
Materials |
Square steel tube machine bed, cast iron gantry |
|
Guide rail |
Linear square guide rail |
round guide rail |
Transmission |
Rack and pinion transmission |
|
Driving mode |
Stepper motor |
|
Spindle heads |
6 |
|
Spindle motor |
1.5kw*6 water cooling |
Or air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-60000mm/min |
|
Engraving speed |
0-25000mm/min |
|
Resetting accuracy |
0.05mm |
|
Control system |
PCI NcStudio |
Or DSP offline or MACH 3 |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Compatible software |
Artcam, Type 3, Ucancam,etc |
|
Packing size |
2000*2050*1800mm |
|
Gross weight |
1000kg |

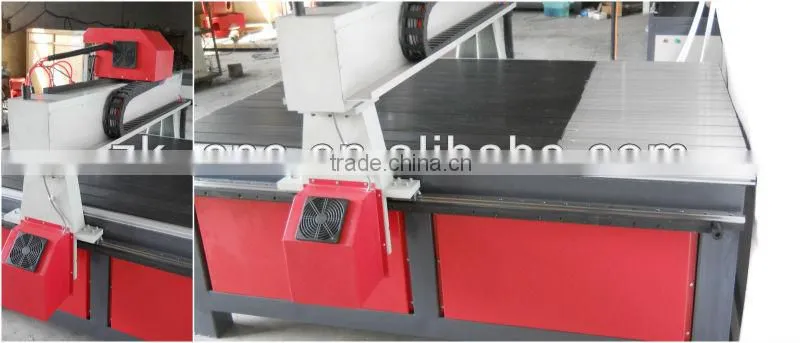

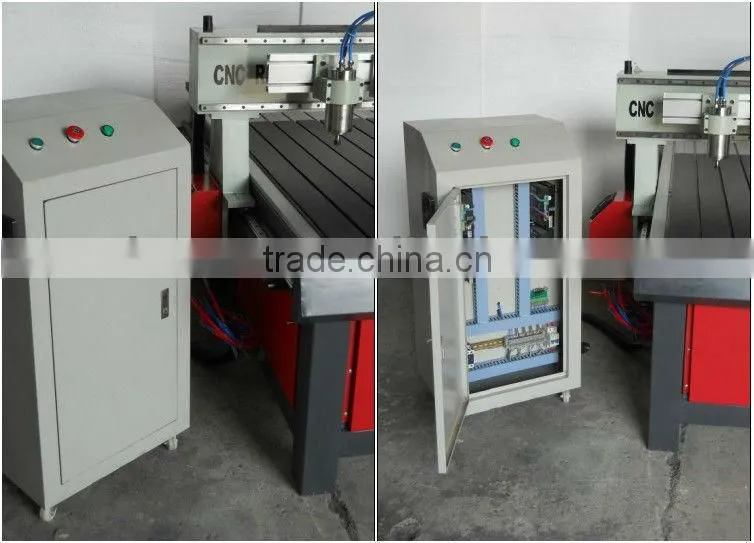

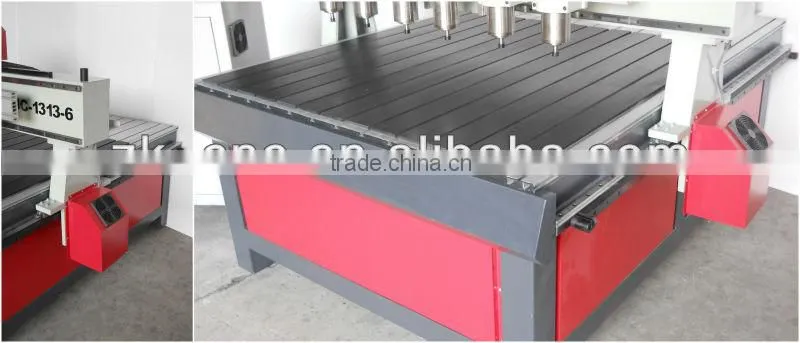

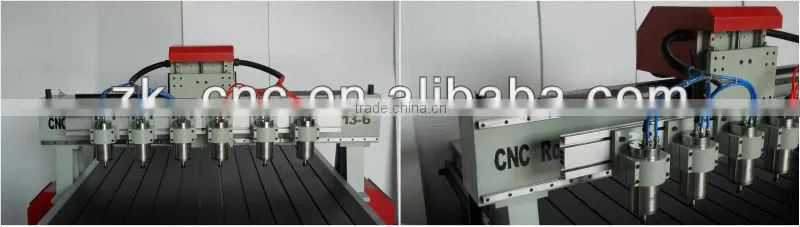

Reference machine pictures
Samples
OUR CNC ROUTER CAN BE CUSTOMIZED JUST ACCORDING TO YOUR NEED!
