hobby 4 axis metal sheet metal/wood/acrylic cutting machine 6090 with Mach3 controller

Specifications

3.0kw water cooling spindle
stainless steel water slot
linear square guide rail
4 axis
Mach3 controller

hobby 4 axis metal sheet metal/wood/acrylic cutting machine 6090 with Mach3 controller

Application



The Computerized CNC Metal Engraving and Cutting Machine is suitable for various metal, metal tag, nameplate, dog tag, metal artware engraving and sheet metal cutting, materials such as copper, aluminum, iron, steel, stainless steel…

Also can for wood, MDF, PVC, PMMA, acrylic, plywood engraving& cutting, stone, glass, plastic engraving…



Features



1. Simple operation and installation, when delivery we will provide the videos for training.



2. More steady and strong equipped with cast iron machine bed.



3. Water cooling system, ensuring the processing for the metal/stone/glass cooling.

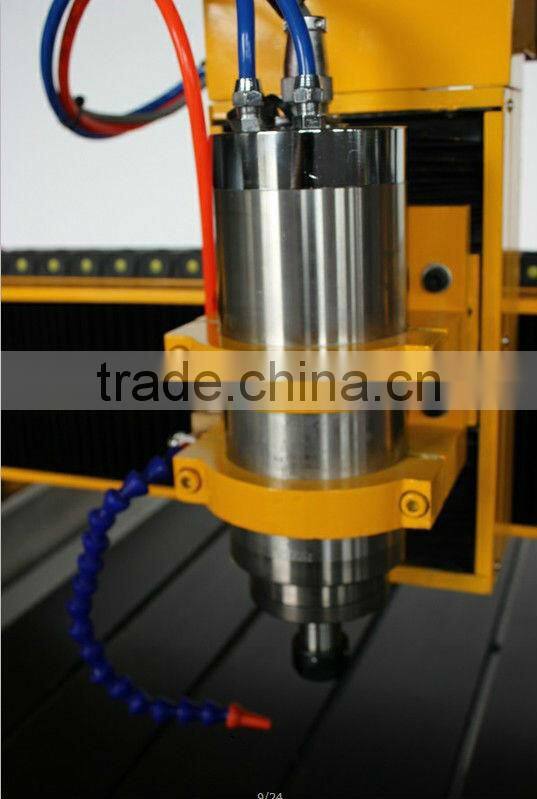

4. 3.0kw water cooling spindle, more powerful. Linear square guide rail, higher precision.

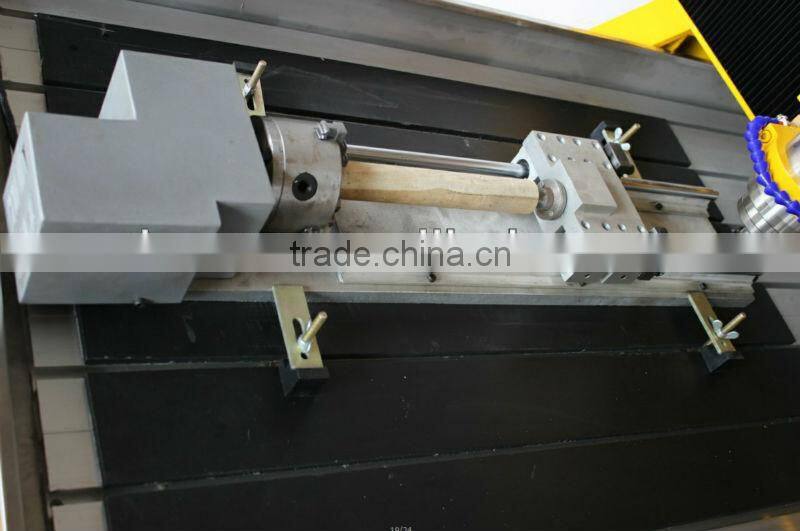

5.Rotary axis for cylinder processing, diameter 100mm, working length 400mm, gear transmission



6.Mach3 control system, with USB port for both desktop and laptop computer, simple operation, more convenient, control stepper motor or servo motor driver, running enviroment is WIN XP/7.

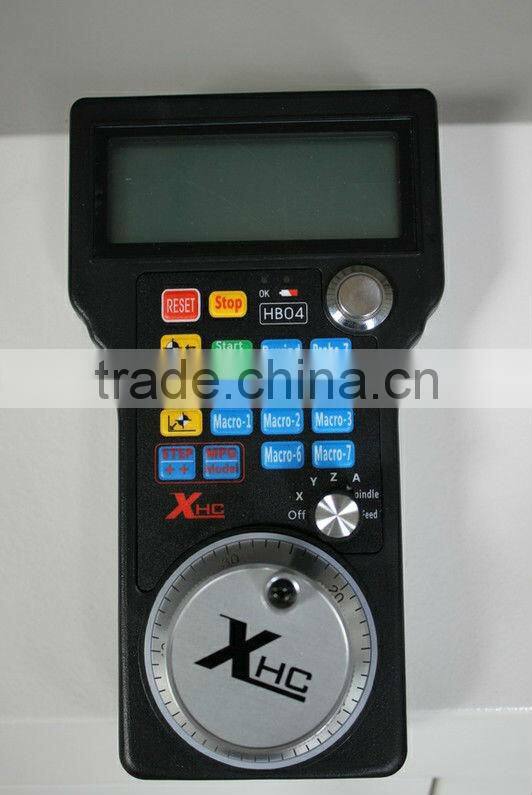

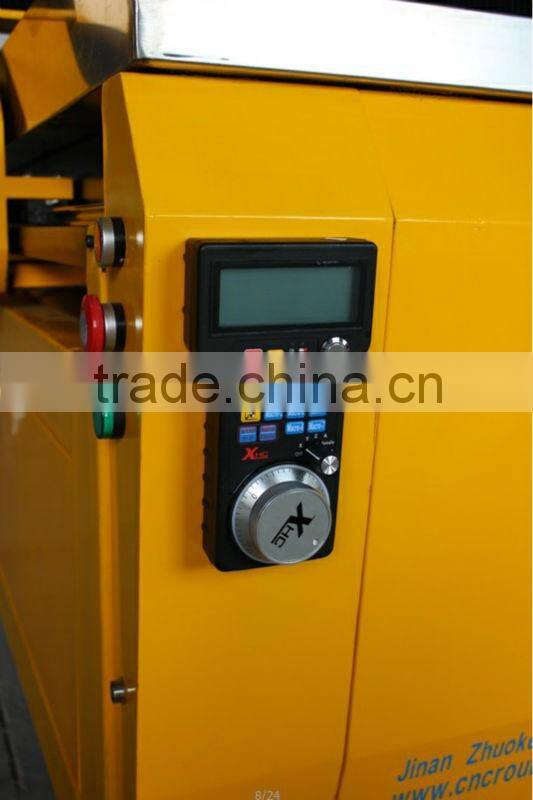

7.HB04 handwheel control the machine move back and froward, like TV's remote control, more convenient.

8. Function of re-carving after break point and power off, reducing the materials wasting.



9.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.



 Technical parameters

Effective working area	600(X)mm*900(Y)mm*200(Z)mm
Max.thickness of the materials	≤200mm(the distance between Z-axis and the bottom of the working station)
Materials	Cast iron machine bed, cast aluminum gantry
Water cooling system	Stainless steel water slot
Working table	Aircraft aluminum T slot

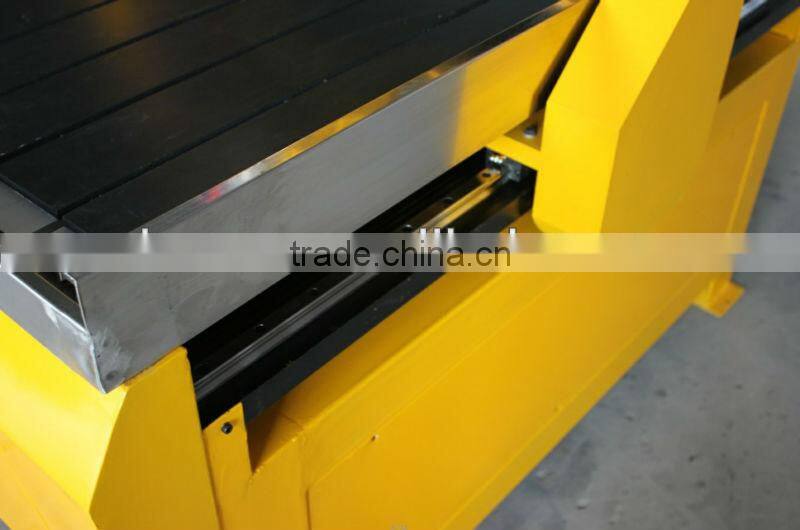

Guide rail	Linear square guide rail
Transmission	Ball screw for X Y Z-axis
Driving mode	Stepper motor
Spindle motor	3.0kw water cooling
Spindle speed	0-24000rpm/min
Empty traveling speed	0-8000mm/min
Engraving speed	0-6000mm/min
Resetting accuracy	0.05mm
Control system	Mach3 (or DSP offline)
Carving Instructions	G code *Uoo *mmg *plt HPGL
Software environment	Windows 2000 / XP
Packing size	1500*1200*1630mm
Gross weight	370kg

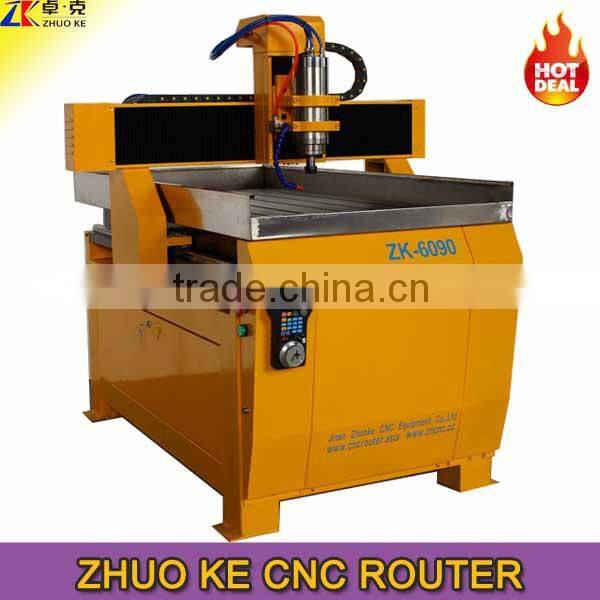

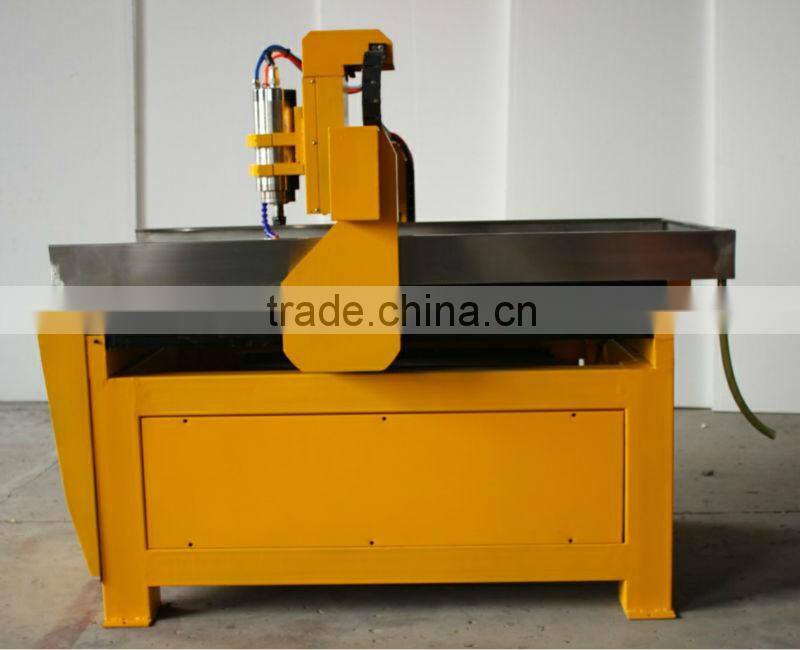

Reference machine pictures

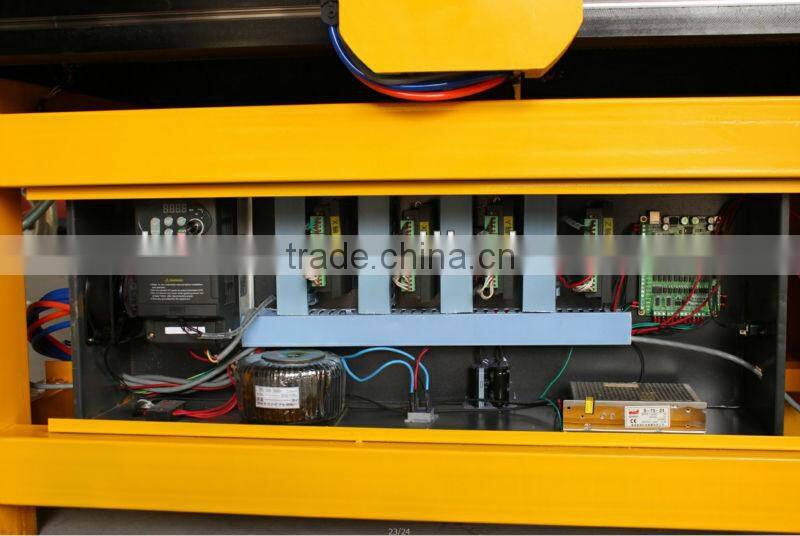

 accessories                                                        cabinet

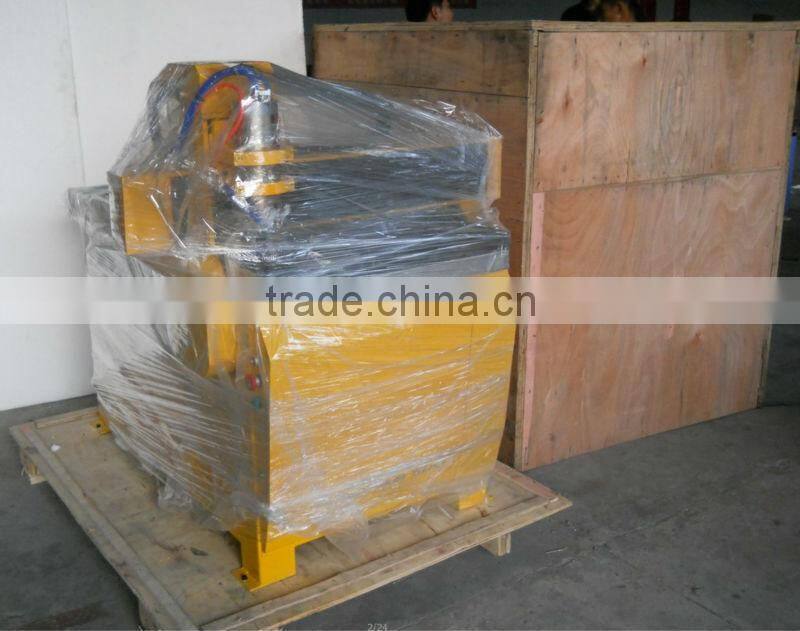

machine package





Sample pictures









Also have other models





ZK-3030(300*300MM),ZK-4040(400*400mm),ZK-5060(500*600mm), ZK-6060(600*600mm),



ZK-6090(600*900mm), ZK-1212(1200*1200mm),ZK-1215(1200*1500mm),



ZK-1218(1200*1800mm), ZK-1224(1200*2400mm), ZK-1325(1300*2500mm )

or we can design according to your need!
