Help Center2.2kw Cnc Engraving Machine for Iron (400*400*120mm)
Related Products
-
2.2kw Cnc Engraving Machine for Stainless Steel (400*400*120mm)US$ 2,000 - 2,999MOQ: 1 Set -
2.2kw Cnc Engraving Machine for Aluminum (400*400*120mm)US$ 2,000 - 2,999MOQ: 1 Set
-
Cnc Aluminum Engraving Machine With Rotary Axis (ZK-6090)US$ 2,000 - 3,500MOQ: 1 Set
-
Cnc 3D Engraving Machine With Rotary Axis (ZK-6090)US$ 2,000 - 3,500MOQ: 1 Set
-
Cnc Metal Engraving Machine With Rotary Axis (ZK-6090)US$ 2,000 - 3,500MOQ: 1 Set
Specifications
cast iron machine bedaircraft aluminum T slot
linear round guide rail
ball screw
2.2kw water cooling

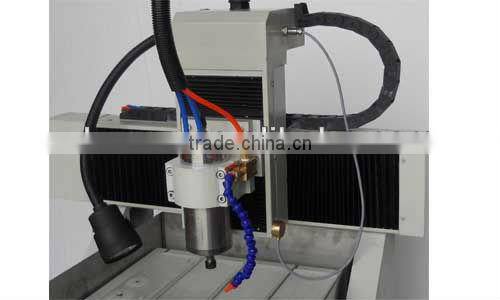

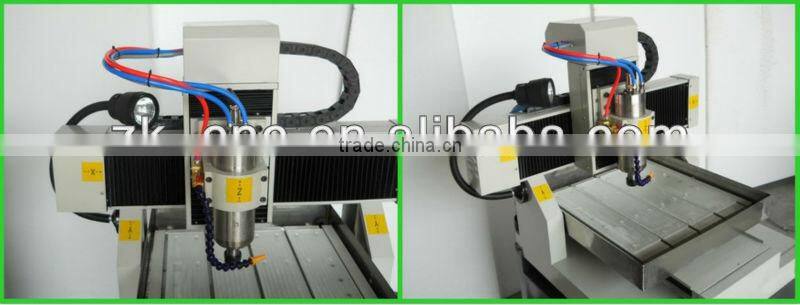

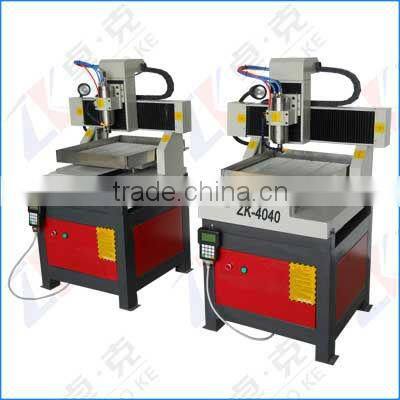

2.2kw cnc engraving machine for iron(400*400*120mm)
Application
The Computerized small metal cnc router is suitable for various metal engraving and sheet metal cutting, such as copper, brass, aluminum, iron, stainless steel, steel, etc.
Also can for wood, MDF, PMMA, acrylic, advertising signs, PCB, nameplates, double color board, PVC, stone, glass, etc.
Features
1. Simple operation and installation, when delivery we will provide the videos for training.

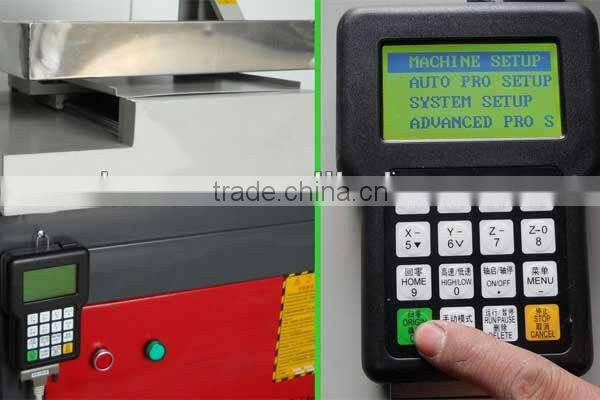

2. DSP offline control system, when working no need the computer, more convenient.
3. Water cooling system, ensuring the processing for the metal, avoiding high temperature breaking cutters.

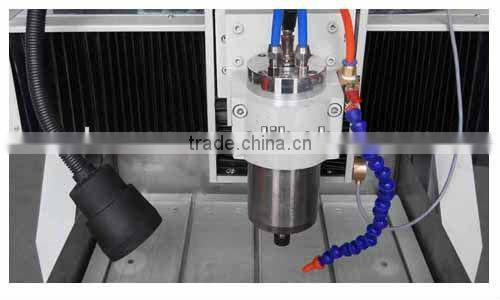

4. 2.2KW water cooling spindle, low noise, more powerful.
5. Head lamp, ensuring the night working, more convenient.
6.Emergency stop button enhance security.
7. Function of re-carving after break point and power off, reducing the materials wasting.
8. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam, Artcut engraving software, Coredraw, etc.
9. Optional items: rotary axis for cylindrical materials, PCI NcStudio control system, connecting with the computer.
Other available models
ZK-3030 300*300mm ZK-5060 500*600mm ZK-6090 600*900mm ZK-9012 900*1200mm ZK-1212 1200*1200mm ZK-1215 1200*1500mm ZK-1218 1200*1800mm ZK-1224 1200*2400mm ZK-1530 1500*3000mm ZK-2030 2000*3000mm
Or CNC Router can be customized just according to your requirement!
Machine technical parameters
Effective working area |
400(X)mm*400(Y)mm*120(Z)mm |
Max. thickness of the materials |
≤120mm(the distance between Z-axis and the bottom of the working station) |
Materials |
Cast iron machine bed, cast aluminum gantry |
Working table |
Aircraft aluminum T slot |
Water cooling system |
Stainless steel water slot |
Guide rail |
Linear round guide rail |
Transmission |
Ball screw for X Y Z-axis |
Driving mode |
Stepper motor |
Spindle motor |
2.2kw water cooling |
Spindle speed |
0-24000rpm/min |
Empty traveling speed |
0-8000mm/min |
Engraving speed |
0-6000mm/min |
Resetting accuracy |
0.05mm |
Control system |
DSP offline( or PCI NcStudio) |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
Software environment |
Windows 2000 / XP |
Packing size |
950*850*1600mm |
Gross weight |
155kg |
Samples as follow:
Guarantee and After Sales Service
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.
If you have any need, please contact us, thank you very much!
