Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Engraving Machinery > China ZK-4040 Whole Cast Iron Mini Engraving Metal Cnc Machine

China ZK-4040 Whole Cast Iron Mini Engraving Metal Cnc Machine

Name: China ZK-4040 Whole Cast Iron Mini Engraving Metal Cnc Machine
Brand: Zhuoke
SKU: 123076427
Availability: InStock

Jinan Zhuoke CNC Equipment Co., Ltd.

China ZK-4040 Whole Cast Iron Mini Engraving Metal Cnc Machine thumbnail-1

China ZK-4040 Whole Cast Iron Mini Engraving Metal Cnc Machine photo-1

US$ 3,000 - 3,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Zhuoke

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Guangzhou Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name Zhuoke

Model Number ZK-4040

Rated Power 2.5kw

Engraving Speed 0-6000mm/min

Main Axle Rotational Speed 0-24000rpm/min

Feeding Height 80mm

Milling Cutter Diameter 3.175mm 4mm 6mm

Application metal

Dimensions 950*850*1600mm

Weight 155kg

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

2.2kw water cooling
linear square guide rail
cast iron machine bed
stepper motor
CE certification

Product Description

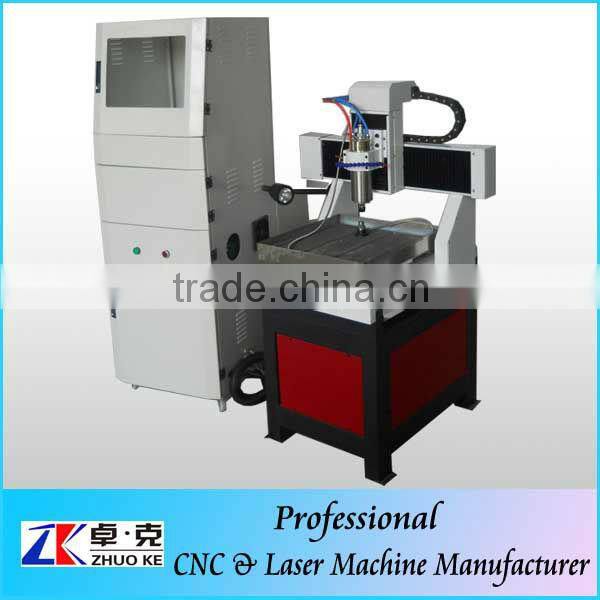

ZK-4040 whole cast iron mini engraving metal cnc machine

Specifications

Main technical parameters

Effective working area	400(X)mm400(Y)mm80(Z)mm
Max. thickness of the materials	≤80mm(the distance between Z-axis and the bottom of the working station)
Materials	Whole cast iron
Working table	Aircraft aluminum T slot
Water cooling system	Stainless steel water slot
Guide rail	Linear square guide rail (Hiwin, Taiwan)
Transmission	Ball screw for X Y Z-axis
Driving mode	Stepper motor
Spindle motor	1.5kw water cooling
Spindle speed	0-24000rpm/min
Empty traveling speed	0-8000mm/min
Engraving speed	0-6000mm/min
Resetting accuracy	0.05mm
Control system	PCI NcStudio
Carving Instructions	G code Uoo mmg *plt HPGL
Software environment	Windows 2000 / XP
Packing size	9508501600mm
Gross weight	155kg

Main Introduction

Features

1. Simple operation and installation, when delivery we will provide the videos for training.

2.Whole cast iron materials, good stability and long life time.

3. Water cooling system, ensuring the processing for the metal, avoiding high temperature breaking cutters.

4.2.2KW water cooling spindle, low noise, more powerful.

5.Hiwin linear square guide rail for X Y Z-axis, higher precision, long life time.

6.Has the computer cabinet, for the machine control cabinet, computer cabinet, keyboard and displayer, and keeping the machine clean.

7.Emergency stop button enhance security.

8. Function of re-carving after break point and power off, reducing the materials wasting.

9. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam, Artcut engraving software, Coredraw, etc.

10. Optional items: DSP offline control system, when working no need the computer, rotary axis for cylinder engraving…

Application

Application

The Computerized metal cnc engraving machine is suitable for various metal engraving and sheet metal cutting, such as copper, brass, aluminum, iron, stainless steel, steel, etc.

Also can for wood, MDF, PMMA, acrylic, advertising signs, PCB, nameplates, double color board, PVC, stone, glass, etc.

Samples

Other available models

300*300mm 600*600mm 600*900mm 900*1500mm 1200*1200mm 1200*1500mm 1200*1800mm 1200*2400mm 1300*2500mm 2000*3000mmm…

Our Services

Guarantee and After Sales Service

1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement

5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.

Any questions, just feel free to contact us!
