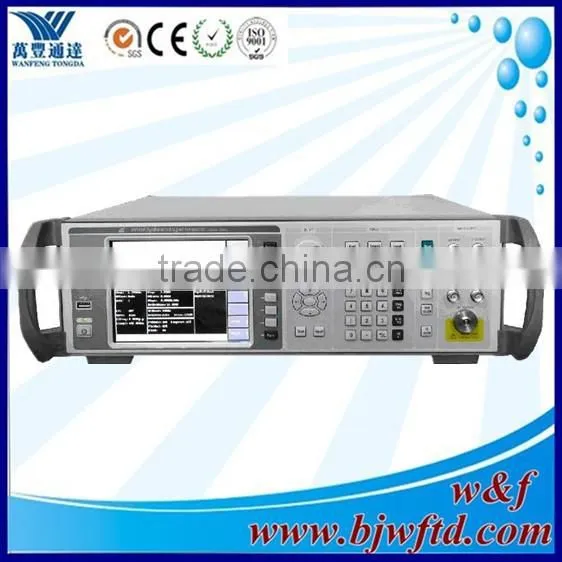

AV1464 Series Synthesized Signal Generators

Name: AV1464 Series Synthesized Signal Generators
Brand: China Institute
SKU: 123068293
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

China Institute

Model Number:

AV1464

Beijing W&F Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

BeiJing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name China Institute

Model Number AV1464

AV1464 Series Synthesized Signal Generators

Main Features:

High Accurate Power Output in -120∼+11dBm Large Dynamic Range

Standard Internal Modulation Signal Generator and Pulse Generator

Excellent Broadband DCFM & DCØM Function

High Accurate Linear AM and Exponential AM

High-performance Pulse Modulation

170GHz Frequency Multiplying Source Module Spread Spectrum

Chinese/English Operation Interface, Large TFT LCD

Frequency Step & List Sweep

Frequency Performance

Frequency Range	AV1464A: 250kHz∼20GHz AV1464B: 250kHz∼40GHz AV1464C: 250kHz∼50GHz AV1464 : 250kHz∼67GHz	Frequency				N
		250kHz ≤ f ≤ 250MHz				1/8
		250MHz < f ≤ 500MHz				1/16
		500MHz < f ≤ 1GHz				1/8
		1 GHz < f ≤ 2 GHz				1/4
		2 GHz < f ≤ 3.2GHz				1/2
		3.2 GHz < f ≤ 10GHz				1
		10 GHz < f ≤20GHz				2
		20 GHz < f ≤40GHz				4
		40 GHz < f ≤67GHz				8
Frequency Resolution	0.001Hz
Harmonic 2	250kHz ≤ f ≤ 10MHz		-28dBc (typical value)
	10MHz < f ≤2GHz		-28dBc
	2GHz < f ≤ 20GHz		-55dBc
	20GHz < f ≤ 40GHz		-50dBc
Sub-harmonic 2	250kHz ≤ f ≤ 10GHz		None
	10GHz < f ≤ 20GHz		-50dBc
	20GHz < f ≤ 40GHz		-40dBc
Non-harmonic 3	250kHz ≤ f ≤ 2GHz		-65dBc
	2GHz ≤ f ≤ 20GHz		-56dBc
	20GHz < f ≤ 40GHz		-50dBc
	40 GHz < f ≤67GHz		-44dBc
SSB Phase Noise (dBc/Hz)	Offset from carrier Frequency		1Hz	10Hz	100Hz		1kHz	10kHz	100kHz
	250kHz ≤ f ≤ 250MHz (Measurement at +10dBm)		58	87	–101		–121	–130	–130
	250MHz < f ≤ 500MHz		61	88	–108		–126	–132	–132
	500MHz < f ≤ 1GHz		57	84	–101		–121	–130	–130
	1GHz < f ≤ 2 GHz		51	79	–96		–115	–124	–124
	2GHz < f ≤3.2GHz		46	74	–92		–111	–120	–120
	3.2GHz < f ≤ 10GHz		37	65	–81		–103	–110	–110
	10GHz < f ≤20GHz		31	59	–75		–95	–104	–104
	20GHz < f ≤40GHz		25	53	–69		–89	–96	–96
	40GHz < f ≤67GHz		20	47	–64		–83	–92	–92

Power Performance

Output Power Range (25±10℃)	AV1464A:+13dBm ∼ -20dBm Adding option 1: +11dBm ∼ -120dBm (-135dBm is available) AV1464B:+10dBm ∼ -20dBm Adding option 1: +8dBm ∼ -110dBm (-135dBm is available) AV1464C/AV1464:+6dBm ∼ -20dBm Adding option 2: +3dBm ∼ -90dBm(-110dBm is available)
Power Accuracy (25±10℃)
	250kHz ≤ f ≤ 2GHz		±1.0dB		±1.0dB		±2.0dB (typical)
	2GHz< f ≤20GHz		±1.2dB		±1.0dB		±2.0dB(typical)
	20GHz< f ≤40GHz		/		±1.2dB		±2.2dB(typical)
	40GHz< f ≤50GHz		/		±1.5dB		±2.2dB(typical)
	50GHz< f ≤67GHz		/		±1.8dB		±2.5dB(typical)
	Power Frequency	> +10 dBm		+10∼-10dBm		-10∼-60dBm		-60∼-90dBm
	250kHz ≤ f ≤ 2GHz	±1.0dB		±1.0dB		±1.5dB		±1.8dB (typical)
	2GHz< f ≤20GHz	±1.2dB		±1.0dB		±1.5dB		±2.0dB (typical)
	20GHz< f ≤40GHz	/		±1.2dB		±1.8dB		±2.2dB (typical)

Modulation Performance

Modulation Performance	Pulse Modulation	500MHz∼3.2GHz	>3.2GHz
		>60dB	>80dB
		<150ns	<20ns
		2μs
		1μs	100ns
		10MHz∼3.2GHz	>3.2GHz
		Pulse modulation on/ off ratio	Pulse modulation on/ off ratio
		Pulse modulation rise/fall time	Pulse modulation rise/fall time
		Min. pulse width ( level hold, ALC off with power search)	Min. pulse width ( level hold, ALC off with power search)
