Cable and Antenna Analyzer WF CA-100

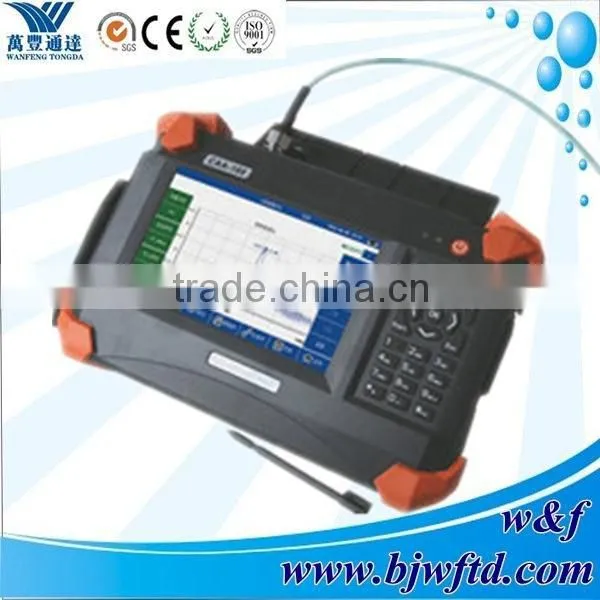

CA-100 Cable & Antenna Analyzer

Application

CA-100 Cable and Antenna Analyzer is desinged for the wireless service application of instalation and maintenance. It can

measure Return Loss, VSWR, Cable Loss, DTF Return Loss, DTF VSWR and deliver easy and quick result presentation.

Measurements: DTF Return Loss / VSWR, Frequency Return Loss /

VSWR and Cable Loss

Preset frequency bands / cable types or manual configuration

On-site cable calibration (propagation constant, cable loss etc.)

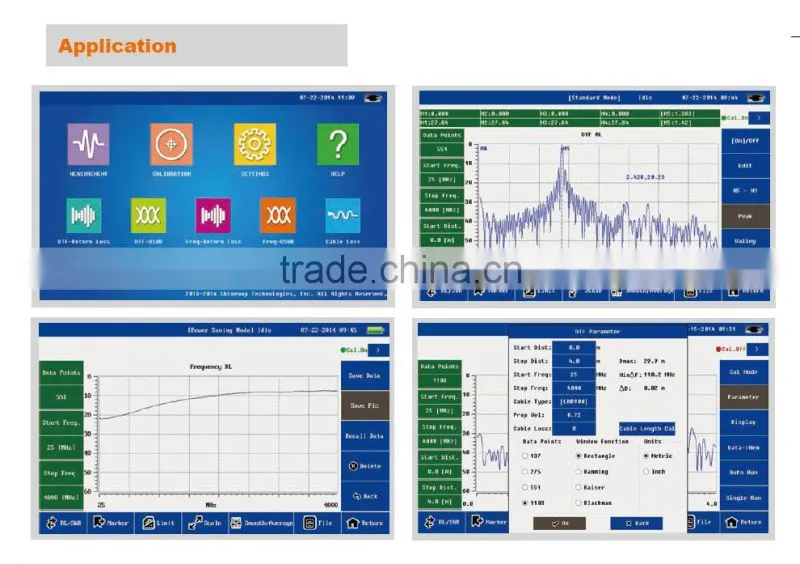

Convenient analysis tools: Marker, Limit, Scale, Smooth/Average

Up to 1103 data points

Professional test analysis and management software

CSV file format and JPEG screenshot

2GB memory space

7” color touch screen

8 hours+ continuous operating time

Compact and robust

Standard Package

Instrument, USB cables, Carrying case, Warranty card, User manual. Calibration component
