Used rubber/tire pyrolysis machine under normal pressure
Waste plastic/tire/rubber recycling pyrolysis machine
This waste plastic recycling pyrolysis machine is mainly used to recyle oil from waste tire, rubber and plastic, since there is no pollution produces during the process, it is one type of environment friendly equipment
Main parts of the waste plastic/tire/rubber recycling pyrolysis machine
1. Reactor 2. Full auto sealed slag extractor system 3. Heat preservation cover 4. Oil seperator 5. Condenser system 6. Light oil tank 7. Heavy oil tank 8. Water sealing tank 9. Induced draft fan 10. Speed reducer 11. Desulfuration dust removal system 12. Waste gas recycle buring system 13. Blower 14. Electric cabinet 15. Pressure alarm 16 Water pump 17. Anti-explosion oil pump and so on ystem
or B
g S
Tecnnical Parameter:

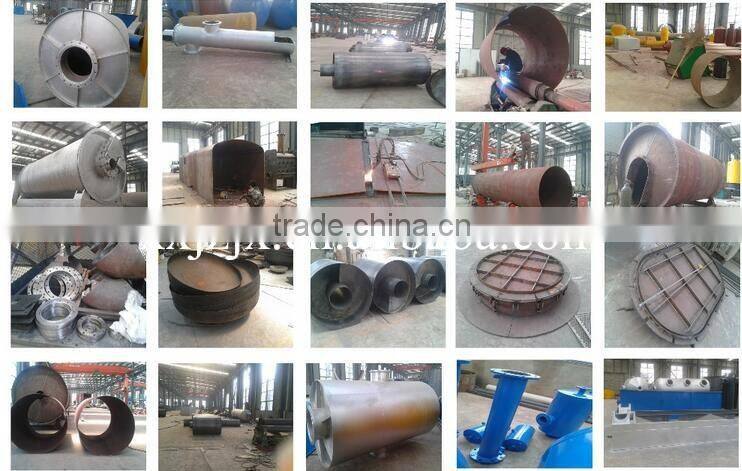

facturing workshop:
Advantage of scrap tyre recycling machines :
Ø Advantage
1. Well sealing for heating system and specific operating tech to heating which can improve the output rate by 5%.
2. The exhaust gas will be recycled for reactor heating, this system will enable you don't need to add fuel after there is gas vapour generated during the production of Waste tire recycling machine to oil .
Ø Long service life
1.Material: Q245R/345R special steel plate ,thickness 16 mm.
2.Welding: Automatic welding Waste tire recycling machine to oil and experienced welder will guarantee the quality and life of the reactor
3.The life of the reactor will be 5-6 years, One of our customers in Philippines has approved it.
Ø Safety
1. With auto welding machine for the machine, it can not only greatly improve working efficiency but also guarantee the welding quality.
2. Specific operating tech of Waste tire recycling machine to oil to deal with all the bug during the production (free for our customers).

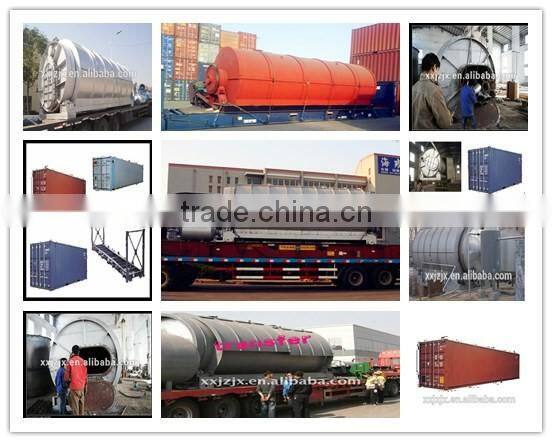

1*40FR and 1*40HQ for 10 tons
2*40 HQ for 5 tons
Weight: about 30tons
All goods are packed with export standard package to make sure
no damage during transportation.
1.Installation and Training: Our Company will send 1 technician for guiding your installation, testing the machine and training your workers. The installation period shall be 15-20 days. You shall pay salary for the technician with $100 per day and also the round-trip ticket and accommodation.
2. Warranty: 1). the reactor guarantee period shall be 12 months.
Certification
Our company has passed the ISO9001:2008 and the ISO14001 2004, which marks the great progress it has made in the quality of the products and environmental protection.
About customers:
Our machines have been sold to many different countries, we are proud to be able to say that many of our customers have demonstrated their satisfaction with machines quality and our best service.
