WELCOME TO OUR WEBSITE
company information
our company located in the beautiful coastal city -Yantai,and established in 1992,we mainly produces various specifications of cold finished precision steel tube, wihich are widely used in hydraulic and pneumatic cylinder for automobile ,engineering machinery ,textil machinery ,printing machinery ,oil drilling and other filed ,our company was equipped with various advanced testing machine which can exhaustive analysisi of the product and promise the quality .so welcome to our company to visiting and negotiate business .
ABOUT OUR PRODUCTS
Article |
EN10305-2 cold drawn electric resistance welded tube |
Surface |
according to the customer’s aquirement |
Length |
1m - 6m or as your requirement |
W.T. |
2-30mm |
O.D. |
30-250mm |
Application |
Vehicles, engineering machinery hydraulic chassis, air piping system, etc |
Packing |
We usually bundle with steel strips ,branding parcel ,wooden box |
Terms conditions |
CIF,CFR,FOB |
Payment |
should be 30% in advance by T/T and the balance upon B/L copy or L/C. |
Delivery Time |
25 days after received the deposit by T/T |
Note |
we can produce other standard as the customers' requirement |
THE TOLERANCE OF DIMENSION
|
Size of I.D |
I.D Tolerance |
Tolerance of wall thickness |
||
H8 |
H9 |
H10 |
±7.5% >210mm ±10% |
|
30 |
+0.0330 |
+0.0520 |
+0.0840 |
|
>30-50 |
+0.0390 |
+0.0620 |
+0.1000 |
|
>50-80 |
+0.0460 |
+0.0740 |
+0.1200 |
|
>80-120 |
+0.0540 |
+0.0870 |
+0.1400 |
|
>120-180 |
+0.0630 |
+0.1000 |
+0.1600 |
|
>180-250 |
+0.0720 |
+0.1150 |
+0.1850 |
|
>250-315 |
+0.0810 |
+0.1300 |
+0.2100 |
|
ABOUT SOME DIMENSION
40*50 |
90*110 |
140*170 |
190*215 |
40*55 |
95*110 |
145*170 |
190*220 |
50*60 |
95*115 |
150*170 |
190*225 |
50*65 |
100*110 |
150*175 |
200*220 |
55*70 |
100*114 |
150*180 |
200*225 |
60*70 |
100*115 |
155*180 |
200*230 |
60*75 |
100*120 |
160*175 |
200*245 |
60*78 |
100*125 |
160*180 |
200*250 |
63*73 |
105*125 |
160*185 |
220*250 |
63*75 |
110*125 |
160*190 |
220*270 |
63*76 |
110*130 |
160*195 |
225*250 |
63*78 |
115*130 |
165*190 |
240*273 |
65*80 |
115*135 |
165*205 |
250*290 |
70*80 |
120*140 |
170*200 |
250*300 |
70*82 |
125*140 |
180*200 |
260*300 |
70*85 |
125*145 |
180*205 |
280*323 |
70*90 |
125*150 |
180*210 |
280*355 |
75*90 |
130*150 |
180*215 |
300*350 |
80*92 |
130*155 |
180*220 |
200*213 |
80*95 |
130*160 |
185*205 |
200*216 |
80*100 |
135*160 |
185*215 |
250*266 |
85*100 |
140*160 |
185*220 |
|
90*105 |
140*165 |
190*210 |

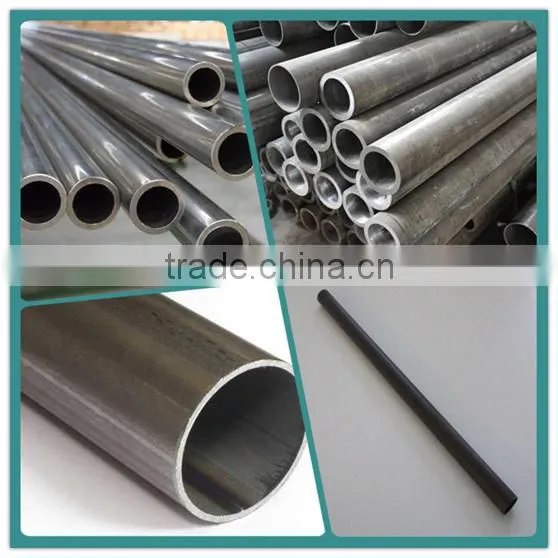

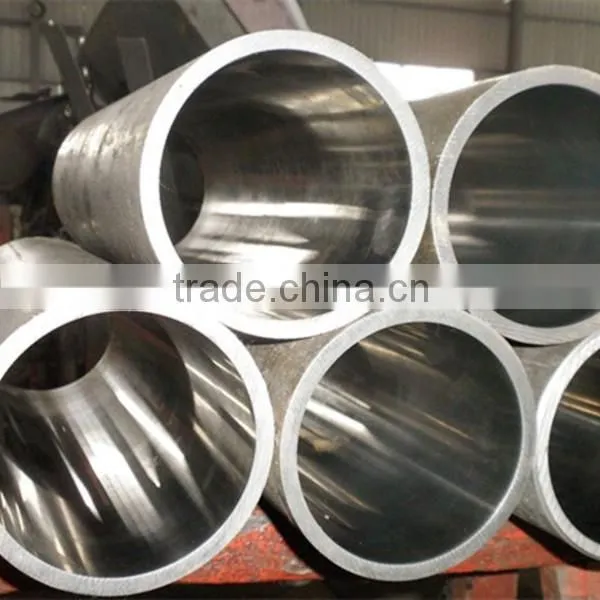

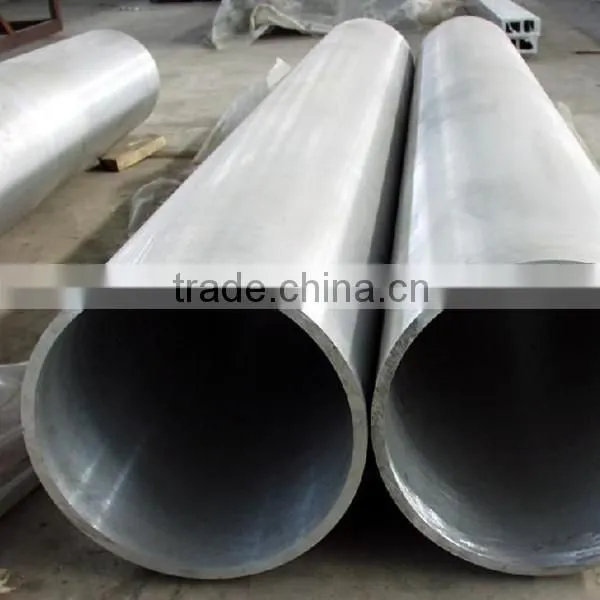

SOME FINISHED PRODUCTS

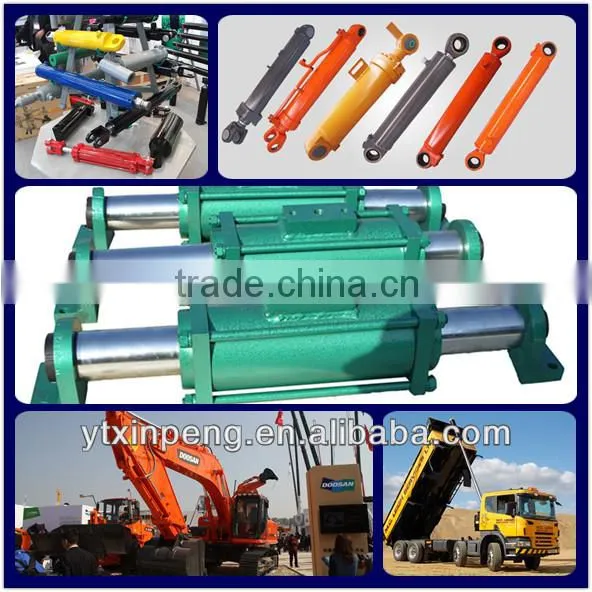

ABOUT APPLICATION
Application |
Cold drawn or cold rolled precision seamless steel tubes for hydraulic pressure and pneumatic services. |
For Auto use,machinery use,oil cylinder tube,motorcycle shock reducer use,auto shock reducer inner cylinder,gas spring use etc. | |
Seamless steel pipes for low and medium pressure boiler, high pressure boiler, ship-building,Liquid service, petroleum cracking, chemical fertilizer equipment,Drawing-oil-equipment and structure purposes. |
ABOUT OUR CERTIFICATE
ABOUT OUR SERVICES
1. Cargo track service during transporting and feedback service after cargo is loaded on board
2. Flexible terms of payment by
3. Big discount for repeat customers
4. Smooth delivering procedure
5. Payment Terms: T/T , L/C And so on.
OUR PROCESSING
PACKAGING AND SHIPPING
(1)Delivery time: In 20 days or according to client's requires
(2)Trade terms: EXW/FOB/CIF etc
(3)Payments: T/T or L/C or according to client's requires
(4)Port: Yantai or Qingdao
(5)MOQ: 5 metric tons or at customer's demands
(6)Packing: we usually bundle with steel strips ,branding parcel or wooden box outside ,or according to the customer’s acquirement
TESTING
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
2.100% Dimension & Visual Examination |
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
6.Straightness Test (optional) |
7.Roughness Test (optional) |
8.Intergranular Corrosion Test(optional) |
9.Impact Test (optional) |
10.Grain Size Determinations (optional) |
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
FAQ
why you choose us ?
1. Free sample can be provided
2. Small order is acceptable
3. Any third party testing is acceptable
4. 12Months quality guarantee
5. Factory price
6.we have various specification seamless steel tube
