Help CenterWF-DS026 Butterfly Type Steel Dust Protection Net
Related Products
-
WF-DS019 Windbreak Panel for Port Dust ControlUS$ 16 - 35MOQ: 1 Square Meter -
WF-DS020 Steel Windbreak Net for YardUS$ 16 - 32.5MOQ: 1 Square Centimeter
-
WF-DS027 Porous Steel Dust Controlling Wall for Coal YardUS$ 20 - 30MOQ: 500 Square Meters
-
WF-DS028 Popular Cheap Steel Pool Fence Made in ChinaUS$ 12 - 30MOQ: 500 Square Meters
-
SDB-DS022 Hot Sale Steel Sand Barrier Fence for RoadUS$ 16 - 35MOQ: 1 Square Meter
Benefits of steel dust protection net
*Economic benefit
Reducing loss of stock in the stock yard
Reduce the damage to facilities due to strong wind
Increase the operation rate of storage yard
*Social (environment) benefit
Improving living environment for neighboring inhabitants
Improving working environment for field men
Reducing dust pollution in neighboring environment and water area
How steel dust protection net work
Strong wind with large scale and high strength vortex in front of the windbreaker is combed into small scale and weak strength vortex. Only part of wind can go through the windbreaker. Its mechanical energy is decayed and turns into low speed airflow.

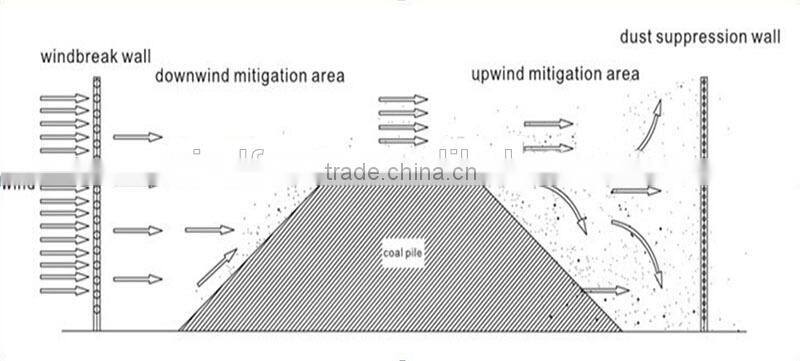

Schematic diagram of dust protection net
After the strong wind going through the dust protection wall, the lowered speed, weakened turbulence intensity wind flows across the storage yard. It becomes a wind with low gradient speed, low curl, weak vorticity and turbulence intensity, which greatly reduced the dust quantity in lower part of the storage yard. When the strong wind comes to dust suppression wall, airflow interference appears and the coming wind speed is reduced. Thus, the kinetic energy of coming wind is greatly reduced. The shearing stress and pressure on surface of the storage pile is reduced, thereby achieving the effect of reducing the fugitive dust pollution.
Schematic diagram of steel dust protection net

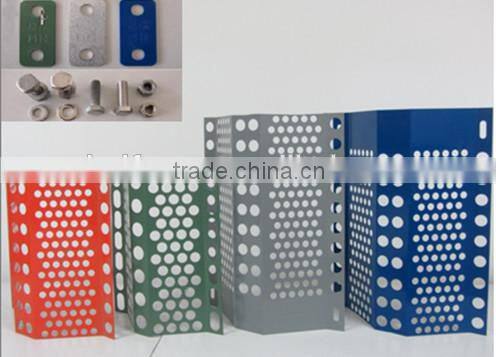

The steel dust protection net is formed by three parts: foundation, steel structure and steel dust proof net. The steel structure is designed mainly in accordance with height of storage pile, wind load, earthquake and other factors. Each structure post is completed in factory. The steel dust proof net are fastened on the structure by stainless bolts and nuts.
Item |
Specifications |
Aperture Opening Rate(%) |
Aperture type |
Gradient |
Aperture Diameter(mm) |
|||
Model |
Length(mm) |
Windth(mm) |
Thickness(mm) |
|
|
|
|
|
Windbreak Net |
GR-FFW-1001 |
4000-6000 |
300-500 |
0.8-1.5 |
30-40 |
Round |
Depending on climate and field conditions |
6-10 |
Dust S protection Net |
GR-YCW-1001 |
4000-6000 |
300-500 |
0.8-1.5 |
20-30 |
Oblong |
4-6 |
|

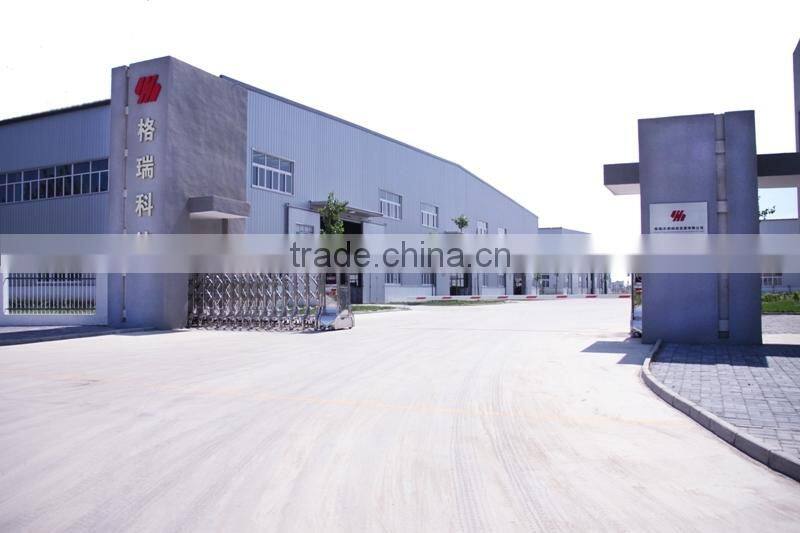

About Green-Tech
Green (Tianjin) Technology Development Co., Ltd. strictly follows the modern enterprise management mechanism and has passed the authorization and the audit of ISO9001: 2008, ISO14001: 2004, ISO: 18001:2001 system. The company owns the qualification of Environmental Engineering Contractor (Grade III) and Steel Structure Engineering Contractor (Grade III). "WALMAX" is the registered trademark. Green Technology possesses more than 20 patents concerning wind, sand, snow and dust protection net. The company is equipped with advanced automatic spraying production line, salt fog test machine and the static and dynamic load laboratory. Green Technology is striving for bringing blue sky to the earth and creating beautiful life for human beings through WALMAX brand wind, sand, snow and dust control systems.
For more information about Green Technology, welcome to visit our website:
If you have any other question,pls contact us directly!
