Name: Infrared Touch Screen Frame IR Touch Kit PQ Labs G4S
Brand: PQ Labs
SKU: 123036189
Availability: InStock

ALL CATEGORIES

Infrared Touch Screen Frame IR Touch Kit PQ Labs G4S

Send Inquiry to This Supplier

Mr. Mitat Acikgoz

Sales Manager

Guangzhou Top Power Electronics Techonology Ltd.

Istanbul, Turkey

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

Available Sizes	G4S Sizes: 21.5", 24", 27", 32", 40", 42", 46" 55" (actual diagonal: 54.6", for most LCD TVs) 55" (actual diagonal: 55", for Plasma) For 60", 65", 70", 80", 84", see G4 & Integration Kit product lines (32" - 84" all sizes) instead. * Customized sizes below 55" available upon request * Please measure actual diagonal of your display before placing 55" orders

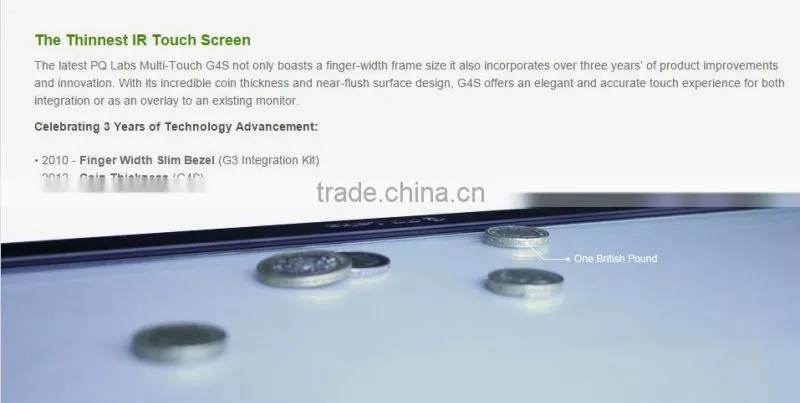

Overlay Thickness	• Touch Bezel Thickness (from glass to frame surface) 21.5" – 27": 4.7 mm 32" – 55": 4.9 mm • Frame Thickness (with glass) 21.5" – 27": 6.9 mm 32" – 55": 8.8 mm
Wireless Multi-Touch	Multi-Touch over Air (See AirScreen technology to learn more)
Touch Points	True Multi-Touch (Detects 32+ (unlimited) touch points simultaneously) G4S Plus: 32+ (unlimited) touch points G4S Standard: 12 Touch Points G4S Basic: 6 Touch Points G4S Dual: 2 Touch Points
Touch Glass	• Ultra-Smooth Mighty Glass • Glass Thickness 21.5" – 27": 2 mm 32" - 46": 3 mm 55": 4 mm
Sample Rate	Up to 200 fps

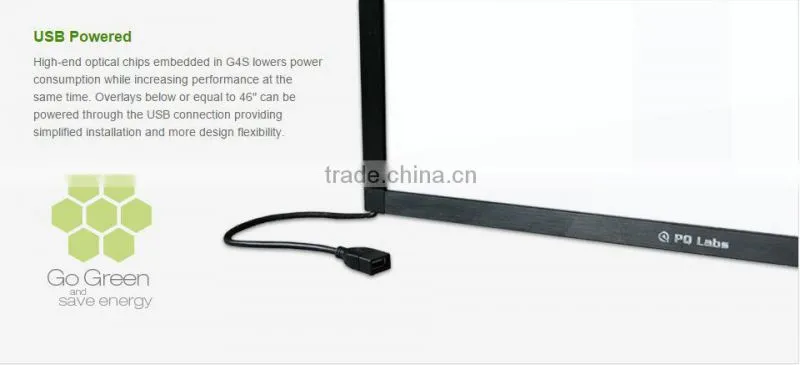

Power Supply	21.5" - 46": USB Powered 55": 5V/4A power adapter
Interface	USB 2.0 (Full speed), compatible with USB 1.1 port, HID compliant, plug-and-play compatible USB A Type Receptacle
Programming Interface	PQ Labs SDK / Windows Native Touch / TUIO
USB Extension	100 meters with Extender
Waterproof	IP64 Waterproof (free of charge), Customizable to IP66 Waterproof (better than IP65 Waterproof)
Supported OS	Windows 8/7/Vista/XP, Mac OS X, Ubuntu/Fedora, Android (Buy iStick, Download PQ Labs Android Driver)

Infrared Touch Screen Frame IR Touch Kit PQ Labs G4S

Product Details
