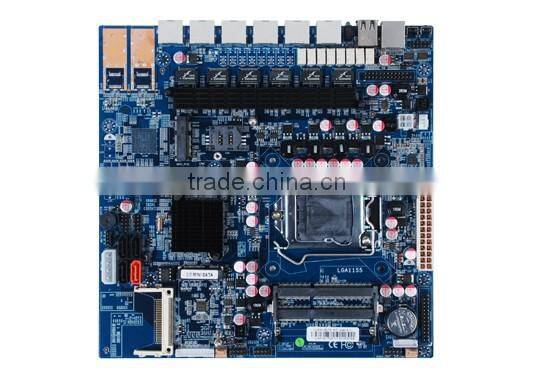

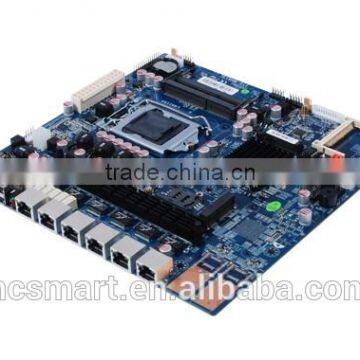

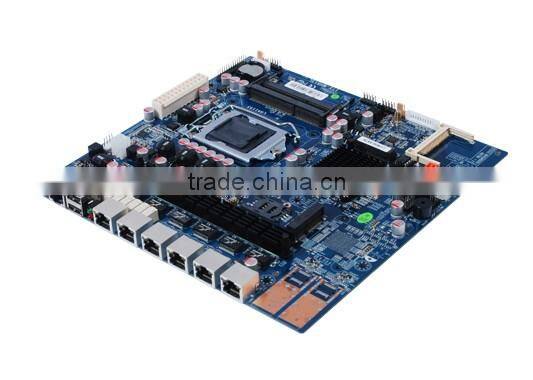

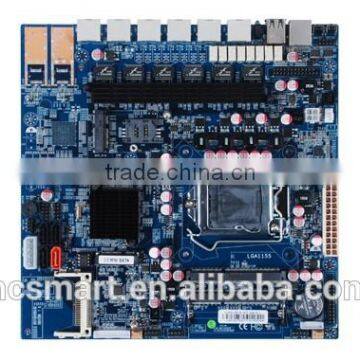

ITEM NAME: B85 network security firewall motherboard with 6 lAN
Intel B85 chipset,support Intel Haswell LGA1150 processor,support 6*Intel 82574 1000M ,4*SATAⅡ,2*MINI-PCIE(forM-SATA/WIFI/3G) , 1*CF ,1*PCIE8X,6*USB2.0(4*USB2.0 header),1*COM(1*Rj45 to COM)
Processor |
CPU |
support Intel Gen 4th Haswell Lga1150 processor |
Frequency |
Depend on cpu |
|
Chipset |
Intel B85 |
|
TDP |
Depend on cpu |
|
Memory |
Slot |
2*SO-DIMM,DDR3 800 MHz Memory |
capacity |
MAX to 16GB |
|
Storage |
connector |
4*SATA2.0 |
1*MSATA | ||
1*MINI PCIE (For WIFI) 1*SIM 1*CF 1*PCIE8X | ||
Display |
chipset |
|
output |
VGA header |
|
LAN |
chipset |
6*Intel 82574 1000M |
connector |
6*RJ45 |
|
Audio |
chipset |
|
connector |
|
|
|
I/O |
com |
2*COM header (1*RJ45-COM) |
Lpt |
|
|
USB |
2*USB2.0 connector,2*USB2.0 header (can expand to 4*USB2.0) |
|
GPIO |
|
|
|
Header |
1*IDE-PWR 1*F-PANEL 1*PS/2 1*SATA-PWR 3*SYS-FAN 1*CPU-FAN 1*JCMOS 1*AUTO-ON 1*COM-SET 1*LAN-LED
|
|
Power |
power supply |
ATX 24 pin |
OS |
Version |
Win7/Win8/Linux |
BIOS |
|
AMI BIOS |
working environment |
working temp |
-10~60℃ |
storage temp |
-10~70℃ |
|
relative humidity |
5%-95% non-condensing |
|
Form factor |
size |
230*230mm |
Carton box packaging, shipped by door to door express (Fedex, Dhl,Ups,Tnt etc,) or air
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
1.What is your payment terms ?
T/T, Paypal ,westunion ,money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
Application
B85 network security firewall motherboard with 6 lAN
B85 network security firewall motherboard with 6 lAN
B85 network security firewall motherboard with 6 lAN
