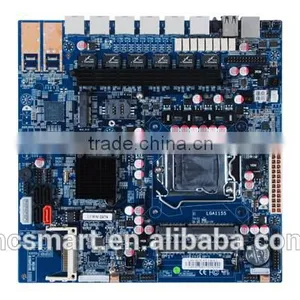

ITEM NAME : B75 LGA1155 6 LAN network security 1U firewall computer system
using Intel B75 chipset,support Intel SB/LVB 32nm/22nm LGA1155 processor,up to 16GB notebook DDR3,6*1000M,support M-SATA/WIFI,SIM,CF,size:230x230mm,ATX24+4 pin power supply
|
Processor |
CPU |
support Intel Sandybridge/Ivy Bridge/32nm/22nm/LGA1155 processor |
Frequency |
Depend on cpu |
|
Chipset |
Intel B75 |
|
TDP |
Depend on cpu |
|
Memroy |
Slot |
2*SO-DIMM,DDR3 Memory |
Capacity |
MAX to 16GB |
|
|
Storage |
connector |
3*SATA2.0 1*SATA3.0 |
1*MSATA | ||
1*MINI PCIE support Wifi 1*SIM 1*CF | ||
Display |
chipset |
Depend on cpu |
output |
1*VGA header |
|
LAN |
chipset |
6*Intel 82574 1000M |
connector |
6*RJ 45 |
|
Audio |
chipset |
|
connector |
|
|
|
I/O |
com |
1*RJ45 to com |
lpt |
1*LPT Header | |
USB |
2*USB2.0 connector 2*USB 2.0 Header |
|
GPIO |
1*GPIO header |
|
|
Header |
1*4pin ATX 1*24pin ATX 1*IDE-PWR 2*USB2.0 header(expand to 4*USB connector ) 1*12PIN VGA header 1*LPT header 1*GPIO header 1*PS/2 header 1*F-PANEL header 1-6 LAN-LED header 1*CLR_CMOS CMOS 1*SATA-PWR header 2*SYS-FAN header 1*CPU-FAN header 1*DEBUG-CON |
|
Power |
power input |
ATX 24+4 PIN |
OS |
version |
Win7/win8/XP/linux |
BIOS |
|
AMI BIOS |
|
working environment |
working temp |
-10~60 degree |
storage temp |
-10-70 degree |
|
relative humidity |
5%-95% non-condensing |
|
Form factor |
size |
230*230mm |
Carton box : 20pcs/ carton 15kgs/carton
Shipping by Air or express . you can reveive the cargo in 5-15 days
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
1.What is your payment terms ?
T/T Paypal westunion money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
Application
B75 LGA1155 6 LAN network security 1U firewall motherboard
B75 LGA1155 6 LAN network security 1U firewall motherboard
B75 LGA1155 6 LAN network security 1U firewall motherboard
