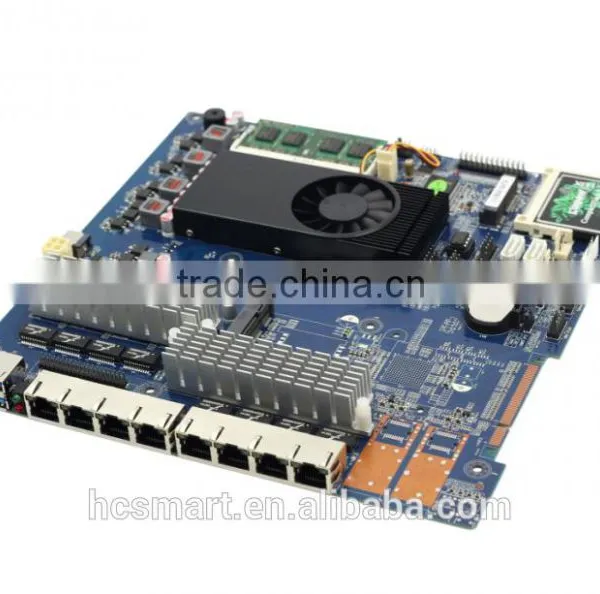

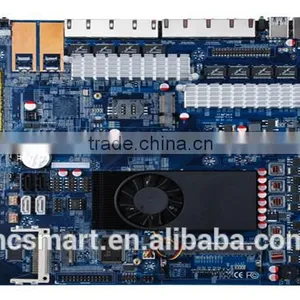

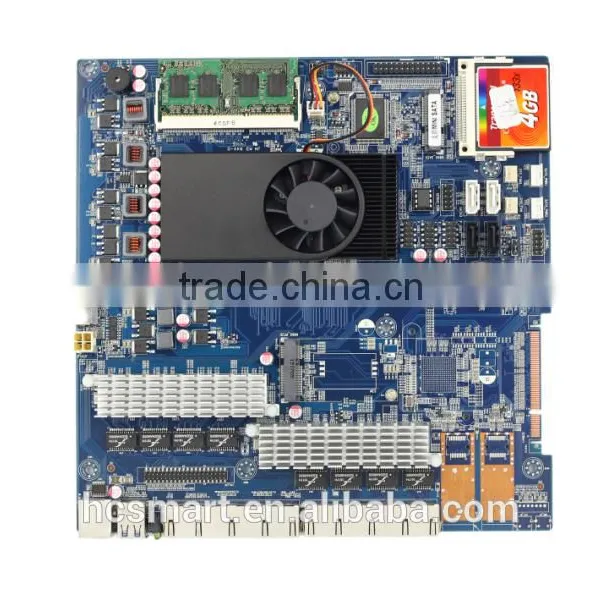

ITEM NAME : Intel C1037U 8 LAN network security firewall motherboard
using Intel Ivy Bridge celeron dual core C1037U 1.8GHz CPU(integrated HD Graphics),Intel HM77 chipset,support 8GB notebook DDR3,onboard Intel i350 chipset,8*1000M,PCIE8X,support M-SATA/WIFI,SIM,CF,size:230x230mm,12V DC power supply.
|
Processor |
CPU |
Intel Celeron dual core C1037U |
Frequency |
Dual core 1.8G |
|
Chipset |
HM77 |
|
TDP |
17W |
|
Memory |
slot |
1*SO-DIMM,DDR3 1600[3F6MHz Memory |
Capacity |
MAX to 8GB |
|
|
Storage |
connectors |
2*SATA2.0 2*SATA3.0 |
1*MSATA | ||
1*MINI PCIE support WIFI 1*SIM 1*CF 1*PCIE8X | ||
Display |
chipset |
HD integrated |
connector |
VGA header |
|
LAN |
chipset |
8*Intel 82583V 1000M |
connector |
8*RJ 45 |
|
Audio |
chipset |
|
connector |
|
|
|
I/O |
com |
2*com(1*RJ45 to com ) |
lPT |
|
|
USB |
2*USB2.0,2*USB2.0 header(expand to 6*USB2.0 connectors) |
|
GPIO |
1*GPIO |
|
Header |
1*F-PANEL 1*PS/2 2*SATA-PWR 2*SYS-FAN 1*CPU-FAN 1*CLR-CMOS 1*AUTO-ON 1*COM-SET 1*LAN-LED
|
|
Power |
power supply |
1*DC IN 12V/4 PIN ATX |
OS |
|
Win7/win8/xp/linux |
BIOS |
|
AMI BIOS |
|
Working environment |
working temp |
-10~60degree |
storage temp |
-10-70 degree |
|
Relative humidity |
5%-95% non-condensing |
|
Form factor |
Size |
230*230mm |
Carton box : 20pcs/ carton 15kgs/carton
Shipping by Air or express . you can reveive the cargo in 5-15 days
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
1.What is your payment terms ?
T/T Paypal westunion money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available

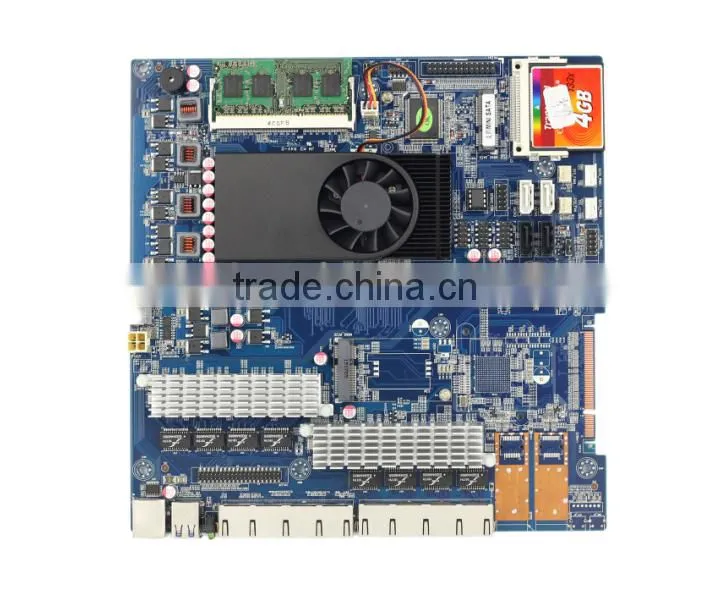

Intel C1037U 8 LAN network security firewall motherboard
Intel C1037U 8 LAN network security firewall motherboard
Intel C1037U 8 LAN network security firewall motherboard
Intel C1037U 8 LAN network security firewall motherboard
