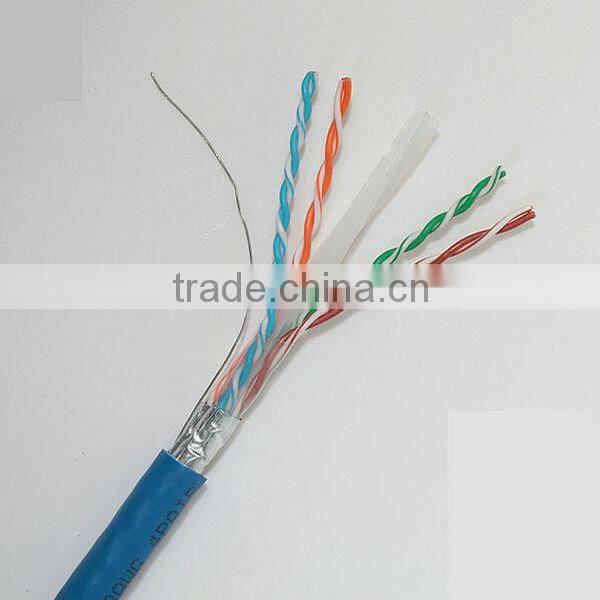

Help CenterBlue UTP Cat.6 4pairs Bare Copper Ethernet Cable Cat6 Lan Cable
Related Products
cat6 power cable
Specifications
1.Cat6 lan cable/network cable
2.ISO/IEC 11801,ANSI/TIA/EIA-568B/C
3.UL,ISO9001,Rohs, CE
4.Competitive price
Product Description
1.Reference standard: UL,ISO9001:2000,CE
2. Bare solid copper BC conductor
3. RoHS complied PVC, PE or LSZH jacket
4. Complies to TIA/EIA-568B&ISO/IEC 11801
Application
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Cable Construction
1. Conductor Dimension: 0.55mm
2. Core Dimension: 0.9mm
3. No. Of Pairs: 4
4. Nom. OD: 5.3mm 14.0mm 13.0mm
5. Type of Jacket: PVC/PE
Packing
1) Packing Lengths: 305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available
3) Outer packing: Carton box, pull out box, pallet available
4) Other packing available according to client's request
Electrical Characteristics
1.Frequency(MHz): 1 4 10 20 31.25 62.5 100
2. Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0
3. Impedance(ohm): 100 100 100 100 100 100 100
4. Return Loss(dB): 17 20 22 20 18 16 15
5. NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
6. ELFEXT: (dB/100m): 61 49 41 35 31 25 21
7. PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
8. PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21
