10.4 "TFT LCD display tft lcd module
This is a set of advanced Cortex-A8 CPU core (clocked at 600MHz), high-performance embedded integrated touch screen. The product is designed with a 10.4-inch high-brightness TFT LCD screen (800*600), four-wire resistive touch screen (resolution 4096 * 4096), but also comes with MCGS embedded configuration software (running version)
Product Specifications
Structure: of industrial plastic structure
Installation: Embedded installation
Power :DC24V / 30W
Overall dimensions: 315mm * 239mm * 56mm
The front panel: 315mm * 239mm * 8mm
Panel viewport: 213mm * 160mm
Chassis shape :300mm * 223mm * 48mm
Cabinet openings: 303mm * 226mm
Weight: about 2.1kg
Shell color :industrial gray
Product Features
LCD 10.4 "TFT LCD screen, resolution (800 * 600), LED backlighting
CPU motherboard Cortex-A8, CPU core, clocked at 600MHz
Touch screen :Four-wire resistive
Memory 128M DDR2
Storage device 128M FLASH,2G SD card,8K ferroelectric
Interface 2 * RS232.1 * RS232/485.1*RS485.1 * USB.1LAN
Applications Environment
Operating temperature :0 ℃ -50 ℃
Operating Humidity: 5% -90%
Storage temperature: -10 ℃ -60 ℃
Vibration frequency :10-57Hz, 57-150Hz
Vibration acceleration: 0.075mm, 9.8m / s ^ 2
Vibration sweep rate :Oct / min≤1

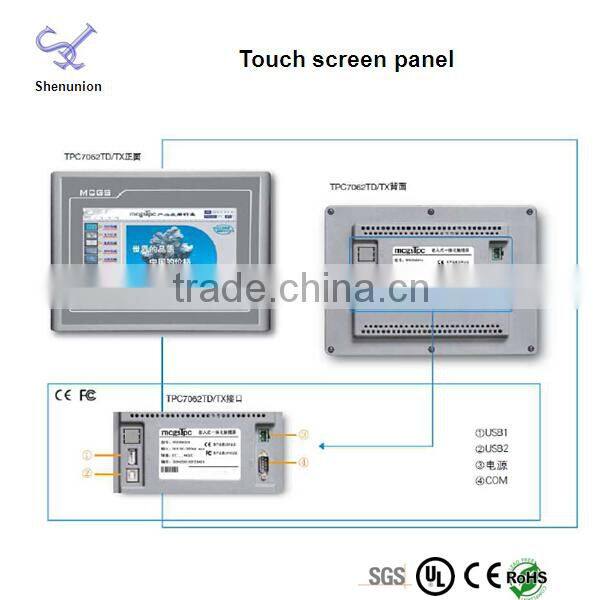

Picture:
Controller series:
Factory picture:
Logistics:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items normally will be shipped out within 3 working days after the payment confirmed.
2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.
You should pay attention to this:
3. Any accidents and delays or other issues caused by forwarder, please forgive that we can not take responsibility.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. One month for return policy from the arrival date.
2. Please simply return to us for replacement or refund, when you find the unperfected quality items or they don’t work well.
3. If the items are defective please notify us within 3 days after arrival.
4. Any items must be returned in their original condition to get a refund or replacement.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Skype:jessicaxx99
Other Policies:
1. About MOQ which depends on your order.
2. About warranty we give one month for refund or replacement.
3. About sample which needs your charge.
4. About inventory which changes everyday and depends on your order.
5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.
We also take OEM,ODM orders as your design, if you have any question, feel free to contact us.
