touch screen control panel 7 inches tft lcd color monitor
This is a low-power embedded CPU technology for the core (clocked at 400MHz), high-performance embedded integrated touch screen. The product is designed with a 7-inch high-brightness TFT LCD screen (800 * 480), four-wire resistive touch screen (resolution 4096 * 4096), but also comes with MCGS embedded configuration software (running version)
Product Specifications
Structure: of industrial plastic structure
Installation: Embedded installation
Power :DC24V / 15W
Overall dimensions: 226.5mm * 163mm * 36mm
The front panel: 226.5mm * 163mm * 6mm
Panel viewport: 154.8mm * 87.8mm
Chassis shape :213mm * 150mm * 30mm
Cabinet openings: 215mm * 152mm
Weight: about 0.8kg
Shell color :industrial gray
Product Features
LCD 7 "TFT LCD screen, resolution (800 * 480), LED backlighting
CPU motherboard with AR9 low CPU core, clocked at 400MHz
Four-wire resistive touch screen
64M DDR2 Memory
Storage device 128 FLASH (TPC7062TD no data storage function)
Interface 1 * RS232.1 * RS485.2 * USB (1master1slave)
Applications Environment
Operating temperature :0 ℃ -45 ℃
Operating Humidity: 5% -90%
Storage temperature: -10 ℃ -60 ℃
Vibration frequency :10-57Hz, 57-150Hz
Vibration acceleration: 0.075mm, 9.8m / s ^ 2
Vibration sweep rate :Oct / min≤1

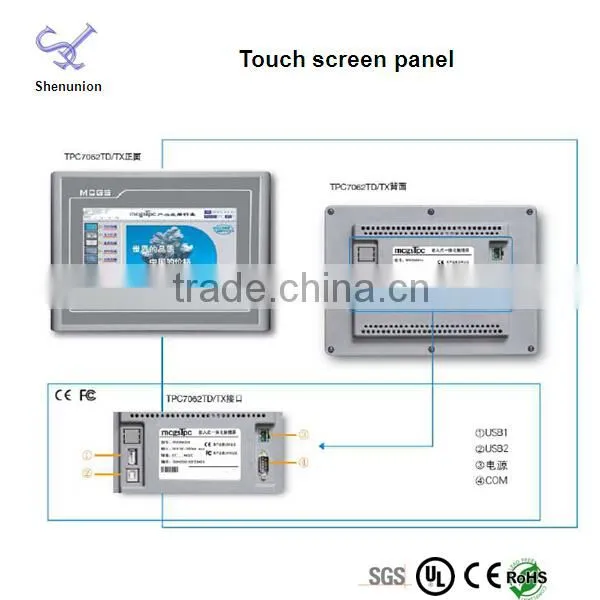

Picture:
