800x480 tft lcd display 7 inches tft lcd color monitor
- 100 Carton / Cartons per Month
- Dalian
- T/T
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Liaoning, China | Brand Name: | shenunion | Model Number: | TPC7062TD/TX-0 |
Type: | TFT |
Product Description
800x480 tft lcd display 7 inches tft lcd color monitor
This is a low-power embedded CPU technology for the core (clocked at 400MHz), high-performance embedded integrated touch screen. The product is designed with a 7-inch high-brightness TFT LCD screen (800 * 480), four-wire resistive touch screen (resolution 4096 * 4096), but also comes with MCGS embedded configuration software (running version)
Product Specifications
Structure: of industrial plastic structure
Installation: Embedded installation
Power :DC24V / 15W
Overall dimensions: 226.5mm * 163mm * 36mm
The front panel: 226.5mm * 163mm * 6mm
Panel viewport: 154.8mm * 87.8mm
Chassis shape :213mm * 150mm * 30mm
Cabinet openings: 215mm * 152mm
Weight: about 0.8kg
Shell color :industrial gray
Product Features
LCD 7 "TFT LCD screen, resolution (800 * 480), LED backlighting
CPU motherboard with AR9 low CPU core, clocked at 400MHz
Four-wire resistive touch screen
64M DDR2 Memory
Storage device 128 FLASH (TPC7062TD no data storage function)
Interface 1 * RS232.1 * RS485.2 * USB (1master1slave)
Applications Environment
Operating temperature :0 ℃ -45 ℃
Operating Humidity: 5% -90%
Storage temperature: -10 ℃ -60 ℃
Vibration frequency :10-57Hz, 57-150Hz
Vibration acceleration: 0.075mm, 9.8m / s ^ 2
Vibration sweep rate :Oct / min≤1

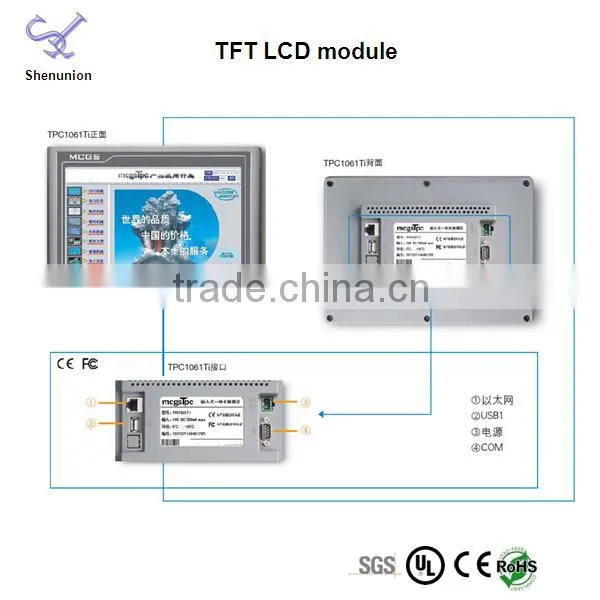

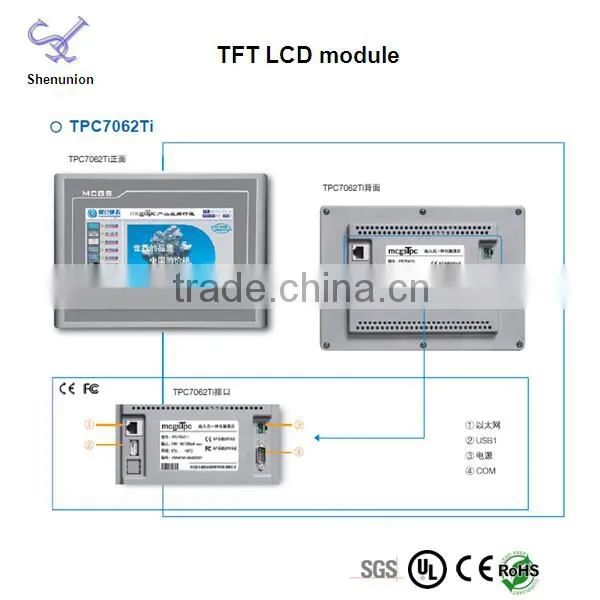

Picture:
Controller series:
Factory picture:
Logistics:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items normally will be shipped out within 3 working days after the payment confirmed.
2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.
You should pay attention to this:
3. Any accidents and delays or other issues caused by forwarder, please forgive that we can not take responsibility.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. One month for return policy from the arrival date.
2. Please simply return to us for replacement or refund, when you find the unperfected quality items or they don’t work well.
3. If the items are defective please notify us within 3 days after arrival.
4. Any items must be returned in their original condition to get a refund or replacement.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Skype:jessicaxx99
Other Policies:
1. About MOQ which depends on your order.
2. About warranty we give one month for refund or replacement.
3. About sample which needs your charge.
4. About inventory which changes everyday and depends on your order.
5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.
We also take OEM,ODM orders as your design, if you have any question, feel free to contact us.
