Customized Intelligent PIR Sensor Module

Customized Intelligent PIR sensor module

Introduction:

1. Customers can request a variety of features and specifications of the design build;
2. Based on infrared technology, automatic control products, high sensitivity and reliability;
3. For all types of induction electrical equipment, various types of automatic sensing of electrical equipment;
4. Suitable battery-powered electrical products;
5. Low voltage operation mode, various types of circuits can be easily and docking;
6. Small size, easy to install in all types of electrical equipment inside.

Parameters:

1. Working voltage: DC3.8V-20V;
2. Static power consumption: 1.5mA to 0.1mA (different voltage power is different from the low-voltage power the greater);
3. The open collector output (optional): Load current: <500mA (other current value to be made);
4. Delay Time: You can make a few tenths range - ten minutes;
5. embargo time: Range can be made zero seconds - a few tens of seconds (default: none);
6. Trigger Mode: L can not be repeated; H can be repeated (default);
7. sensing range: ≤130 degree cone angle, less than 8 meters (specific lens selected by the decision can also be made within a few tens of centimeters to 7 meters);
8. Working temperature: -20-70 degree;
9.PCB Dimensions :: 28 * 28mm, optional: 24 * 32mm, 34 * 17mm, 28 * 32mm, 100 * 15mm, 36 * 36mm, etc. 24 * 24 mm, 45 * 45 mm etc;
10. The induction of the lens size (diameter): 23mm (default); otherwise: 12.7mm; 8mm optional.

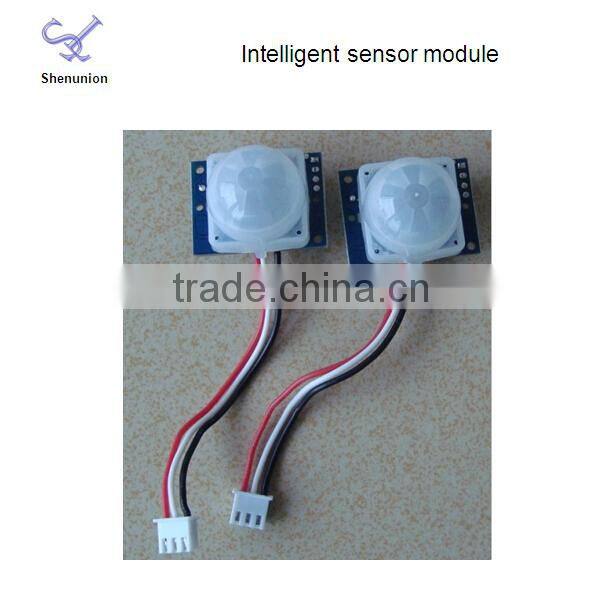

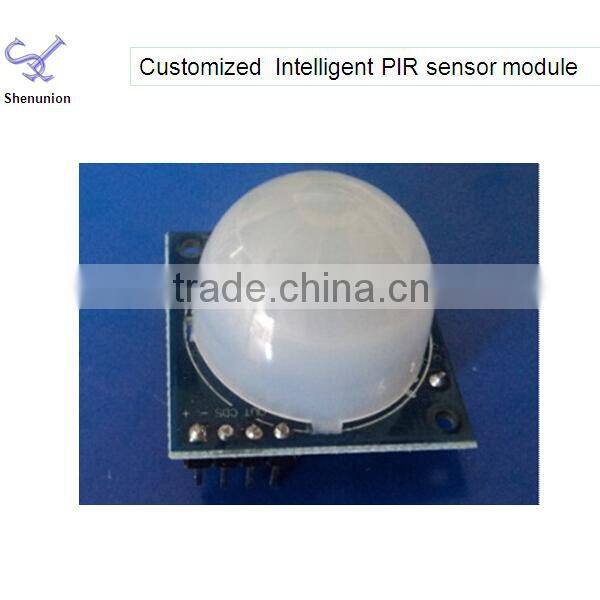

Picture:

We can also offer OEM/ODM service:

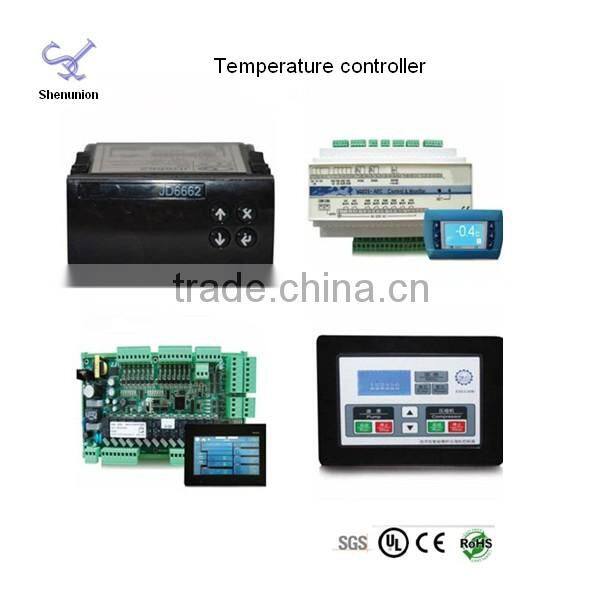

Controller series:

Logistics:

Corporate Vision:

1.Best service

2.Good quality

3.Competitive price

4.Sufficient supply

Shipping:

1. The items will normally be shipped within 3 working days after the payment confirmed.

2. Items will be shipped by DHL/FedEx /TNT/ UPS /EMS or others upon request. Please contact us to choose the best one.

Attention:

3. Shenunion cannot take responsibility for any accidents, delays, or other issues caused by forwarder.

4. Your payment for the shipping cost will be highly appreciated.

Refund & Replacement:

1. Standard return policy applies for one month after the arrival date of your order.

2. If you find the items you have received are not of the highest quality, please simply return them to us for replacement or refund.

3. If the items are defective please notify us within 3 days of their arrival.

4. Any items returned for refund or replacement must be returned in their original condition.

Contact information:

Tel : 86-411- 82556766

Fax: 86-411-82556988

Skype:jessicaxx99

 Other Policies:

1. Given MOQ’s are negotiable.

2. One month warranty for refund or replacement

3. Not all samples are free.

4. During the order process we will send you a PI (terms of shipping, aggregate amount, etc.) after receiving your parts list.

We also take OEM,ODM orders upon request, if you have any questions, feel free to contact us.
