Home > Electrical & Electronics > Passive Components > Capacitor > MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D

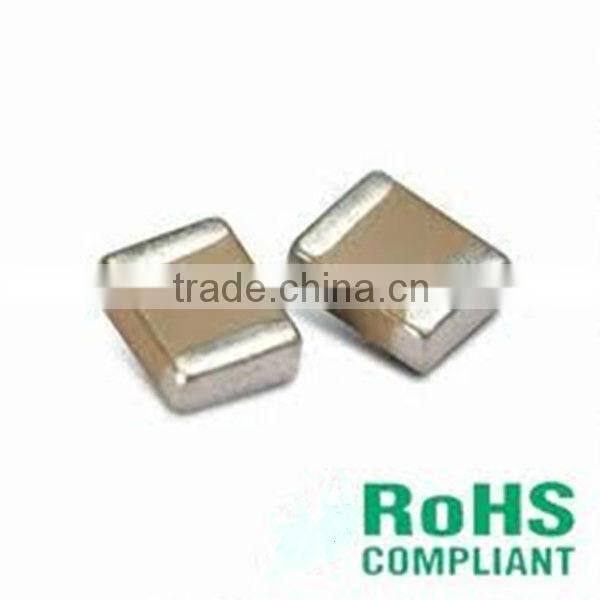

MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D

MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D photo-1
US$ 0.001 - 1 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
MURATA
Model Number:
GRM188R71H221KA01D
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Japan
Brand Name MURATA
Model Number GRM188R71H221KA01D
Type Ceramic Capacitor
Application General Purpose
Package Type Surface Mount
Capacitance 220pF
Rated Voltage 50Vdc
Operating Temperature -55 to 125℃

Specifications

Multiplayer Ceramic Chip Capacitors
MPQ:4000PCS
Price:FOB Dalian USD 0.001 to 1

MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D



Shape
L size1.6 ±0.1mm
W size0.8 ±0.1mm
T size0.8 ±0.1mm
External terminal width e0.2 to 0.5mm
Distance between external terminals g (Min.)0.5mm
Size code in mm(inch)1608 (0603)
Specifications
Capacitance220pF ±10%
Rated voltage50Vdc
Temperature characteristics (complied standard)X7R(EIA)
Capacitance change rate±15.0%
Temperature range of temperature characteristics-55 to 125°C
Operating temperature range-55 to 125°C
References
PackagingSpecificationsMinimum quantity
Dφ180mm Paper taping4000
Jφ330mm Paper taping10000
Mass (typ.)
1 piece6.3mg
φ180mm Reel144g

  MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D



MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D





MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D





MURATA Multiplayer Ceramic Chip Capacitors GRM188R71H221KA01D
