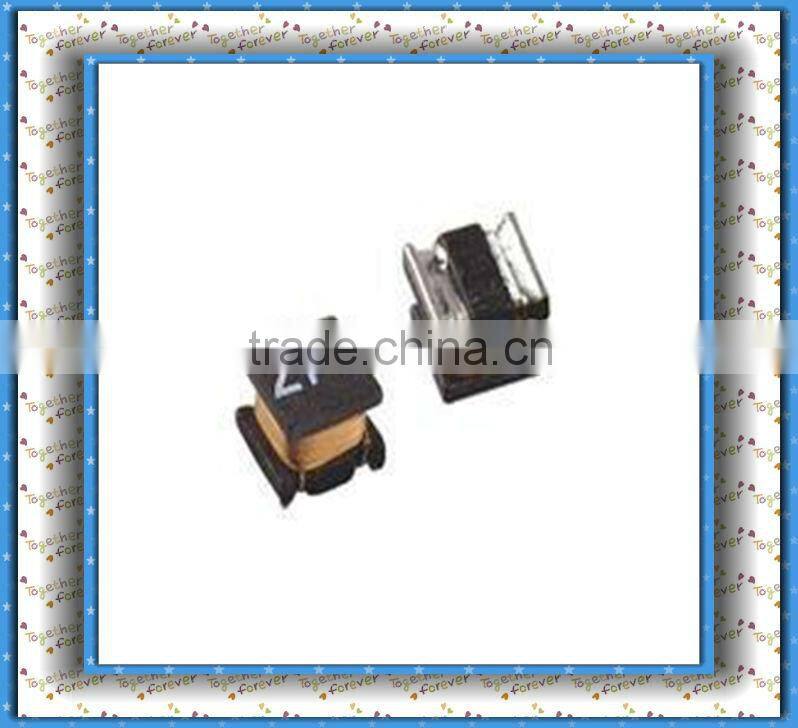

choke coil filter inductor LQH32CN100K53L

Specifications

choke coil filter inductor
Dimention 3.2x2.5x1.55mm
Size code mm (inch) 3225 (1210)
Inductance 10uH

MURATA  choke coil filter inductor   LQH32CN100K53L

Shape
L size	3.2 ±0.3mm
W size	2.5 ±0.2mm
T size	1.55 ±0.15mm
Size code mm (inch)	3225 (1210)
Specifications
Inductance	10µH ±10%
Inductance test frequency	1MHz
Rated current (Itemp) (Based on Temperature rise)	450mA
Max. of DC resistance	0.39Ω
Self resonance frequency (min.)	26MHz
Operating temperature range (Self-temperature rise is not included)	-40~85°C
Class of magnetic shield	No magnetic shield
References
Packaging	Specifications	Minimum quantity
code
L	φ180mm Embossed taping	2000
K	φ330mm Embossed taping	7500
Mass (Typ.)
1 piece	0.045g
