Specifications
GPS PCB module with antennaBuild on high performance, low-power UBLOX chipset
Ultra high sensitivity: -160dBm
GPS PCB module with antenna
Features
Build on high performance, low-power UBLOX chipset
Ultra high sensitivity: -160dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
Low power consumption: Max 45mA 5.0V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 3.3V--5.0V
Operating temperature range: -40 to 85°C
Patch Antenna Size:18.4(w)mmX18.4(d)mmX4(h)mm
Small form factor: 21x18.4x9.0mm
RoHS compliant (Lead-free)
Applications
LBS (Location Based Service)
PND (Portable Navigation Device)
Vehicle navigation system
Mobile phone
Parameter |
Specification |
|
Receiver Type |
L1 frequency band, C/A code, 50-channels SBAS: WAAS, EGNOS, MSAS, GAGAN |
|
Sensitivity |
Tracking Acquisition |
-160dBm -160dBm |
|
Accuracy
|
Position Velocity Timing (PPS) |
5m CEP without SA 0.1m/s without SA 60ns RMS |
Acquisition Time |
Cold Start Warm Start Hot Start Re-Acquisition |
38s 35s 1s <1s |
Power Consumption |
Tracking Acquisition Sleep/Standby |
40mA 5.0V Vcc 45mA TBD |
NavigationDataUpdate Rate |
1Hz |
|
Operational Limits |
Altitude Velocity Acceleration |
Max 18,000m Max 515m/s Less than 4g |

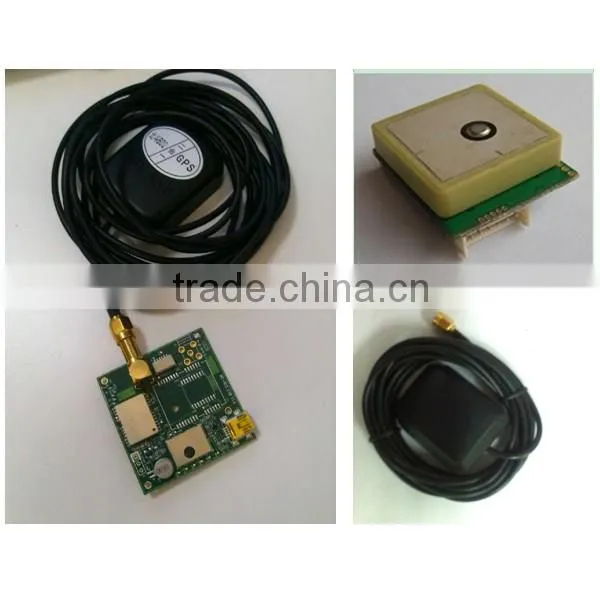

Picture:

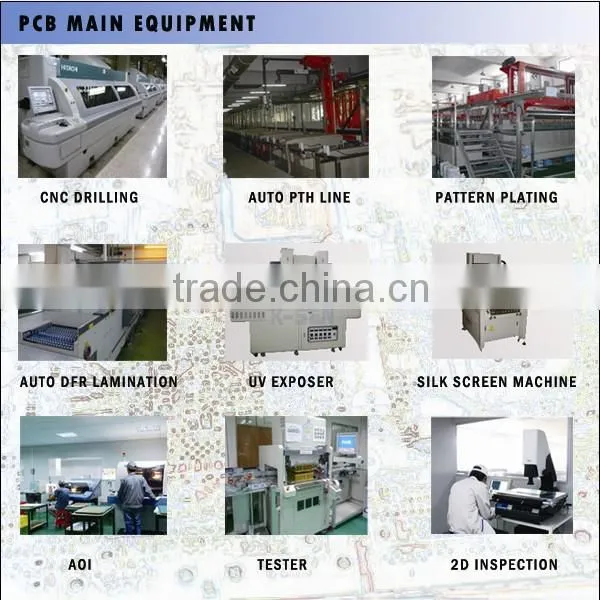

Factory picture:
Logistics:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items will normally be shipped within 3 working days after the payment confirmed.
2. Items will be shipped by DHL/FedEx /TNT/ UPS /EMS or others upon request. Please contact us to choose the best one.
Attention:
3. Shenunion cannot take responsibility for any accidents, delays, or other issues caused by forwarder.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. Standard return policy applies for one month after the arrival date of your order.
2. If you find the items you have received are not of the highest quality, please simply return them to us for replacement or refund.
3. If the items are defective please notify us within 3 days of their arrival.
4. Any items returned for refund or replacement must be returned in their original condition.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Skype:jessicaxx99
Other Policies:
1. Given MOQ’s are negotiable.
2. One month warranty for refund or replacement
3. Not all samples are free.
4. During the order process we will send you a PI (terms of shipping, aggregate amount, etc.) after receiving your parts list.
We also take OEM,ODM orders upon request, if you have any questions, feel free to contact us.
