Specifications
Low price GPS/GNSS smart antenna modules GPS receivers1,Personal positioning and navigation
2,Automotive navigation
Low price GPS/GNSS smart antenna modules GPS receivers
Introduction:
LS20030~3-G series products are complete standalone GNSS smart antenna modules, including an embedded antenna and GNSS receiver circuits, designed for a broad spectrum of OEM system applications. The product is based on the proven technology found in LOCOSYS GNSS SMD type receiver MC-1513-G that uses MediaTek chip solution. It can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS, GALILEO, QZSS and SBAS. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. Its far-reaching capability meets the sensitivity requirements of car navigation as well as other location-based applications.
Features
MediaTek high sensitivity solution
Support GPS, GLONASS, GALILEO and QZSS
Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
Support 99-channel GNSS
Ultra low power consumption
Fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
Free hybrid AGPS to achieve faster cold start
Built-in data logger
Up to 10 Hz update rate
Indoor and outdoor multi-path detection and compensation
Build-in micro battery to reserve system data for rapid satellite acquisition (not in LS20033-G)
LED indicator for position fix or not fix (not in LS20033-G)
Application
Personal positioning and navigation
Automotive navigation
Marine navigation

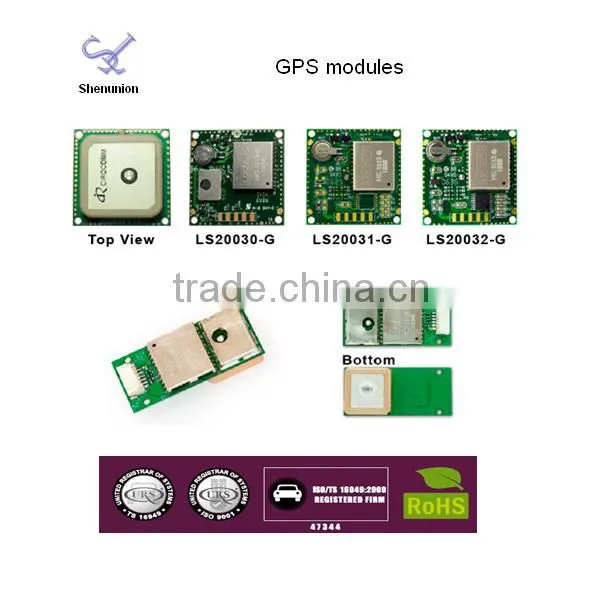

Picture:
OEM/ODM service:
Logistics:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items will normally be shipped within 3 working days after the payment confirmed.
2. Items will be shipped by DHL/FedEx /TNT/ UPS /EMS or others upon request. Please contact us to choose the best one.
Attention:
3. Shenunion cannot take responsibility for any accidents, delays, or other issues caused by forwarder.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. Standard return policy applies for one month after the arrival date of your order.
2. If you find the items you have received are not of the highest quality, please simply return them to us for replacement or refund.
3. If the items are defective please notify us within 3 days of their arrival.
4. Any items returned for refund or replacement must be returned in their original condition.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Skype:jessicaxx99
Other Policies:
1. Given MOQ’s are negotiable.
2. One month warranty for refund or replacement
3. Not all samples are free.
4. During the order process we will send you a PI (terms of shipping, aggregate amount, etc.) after receiving your parts list.
We also take OEM,ODM orders upon request, if you have any questions, feel free to contact us.
