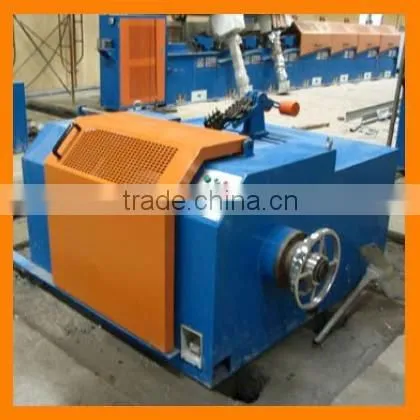

Help CenterWire Collecting Machine(760RSL)
Related Products
-
Straight Wire Drawing Machine(LZ560)US$ 50,000 - 5,000,000MOQ: 1 Set -
Steel Wire Drawing Machine LZ400US$ 500,000 - 5,000,000MOQ: 1 Set
-
Low Carbon Steel Wire Drawing Machine(LZ500)US$ 500,000 - 5,000,000MOQ: 1 Set
-
Low Carbon Steel Wire Drawing Machine(LZ550)US$ 50,000 - 500,000MOQ: 1 Set
-
Low Carbon Steel Wire Drawing Machine LZ350US$ 500,000 - 5,000,000MOQ: 1 Set
Specifications
Large coils can turnover contunously, high efficiency,energy saving,low labor intensity;used for steel wire plating.Technical parameter of Pay-off and take-up machine | ||||
Performance |
760RSL |
900RSL |
1150RSL |
1400RSL |
Range of wire diameter(mm) |
0.8~1.65 |
1.2~4.5 |
2.6~8.0 |
3.0~10 |
Maximum wire capacity of spooler |
800Kg |
1300kg |
2500kg |
5000Kg |
Way of pay-off |
Horizontal type or standing type,passive,damping-adjustable,rotating pay-off without torsion |
|||
Way of traction |
Centralized traction or single traction(AC frequency conversion dragging) |
|||
Way of take-up |
Single horizontal or standing spooler take-up,dragging by moment motor or frequency conversion motor |
|||
Way of configuration |
centralized configuration with much lines(maximum 40lines),each wire can be dragged seperately and have separate operation platform for take-up control also the digital show. |
|||
Machine feature |
Large coils can turnover contunously, high efficiency,energy saving,low labor intensity and so on;used for steel wire plating(copper coating,zinc coating)and heat treatment line. |
|||
