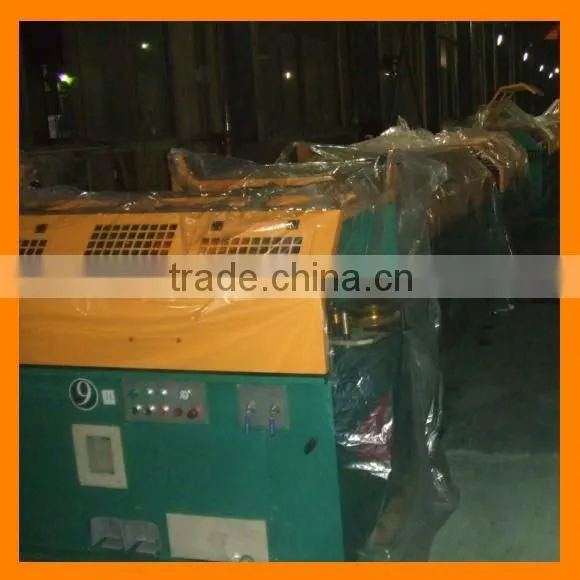

Low Carbon Steel Wire Drawing Machine(LZ550)
US$ 50,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Inlet Diameter:
2.8~16mmmm
Outlet Diameter:
0.5~5.0mm
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Carbon Steel Wire Drawing Machine LZ350US$ 500,000 - 5,000,000MOQ: 1 Set -
Low Carbon Steel Wire Drawing Machine LZ600US$ 500,000 - 5,000,000MOQ: 1 Set
-
High Speed Steel Wire Drawing Machine(LZ800)US$ 50,000 - 5,000,000MOQ: 1 Set
-
Pay off and Take up Machine/Wire Drawing MachineNegotiableMOQ: 1 Piece
-
WIRE DRAWING MACHINE(LZ300)US$ 50,000 - 500,000MOQ: 1 Set
Inlet Diameter
2.8~16mmmm
Outlet Diameter
0.5~5.0mm
Place of Origin
Zhejiang, China
Brand Name
Harbor
Model Number
LZ550
Voltage
-
Power(W)
7.5~160kw
Dimension(L*W*H)
-
Weight
3~5t
Certification
CE
Condition
New
Specifications

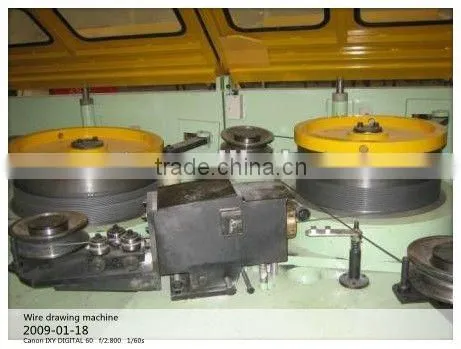

Wire Drawing Machine LZ550For high & low carbon steel wire,AC frequency-variation motor,PLC logical control,High efficiency
LZ550 Steel wire drawing machine:
Main technical parameters:
Material of treating wire: Low carbon steel wire;
Diameter range of treating wire: φ1.60mm~φ3.15mm;
Requirements of zinc coating: 145~350g/m²;
Power source for annealing furnace: Natural gas;
DV value of production line: 120mm·m/min;
Quantity of running wires: 18wires;
Designed speed: Max.75.00m/min for wire φ1.60mm
Capacity of production line: 1694.30kg/h for wireφ2.12mm;
Wire pitch: 40mm for galvanizing, 40mm for surface treating;
Total distance of wires: 680mm for galvanizing, 680mm for surface treating;
Standard running height of treating wire: 915mm;
Running way of treating wires during tanks: Directly running
Suitable material: for stainless steel wire,spring steel wire,steel rope wirewelding wire,steel fibre,tire bead wire,Al clad steel wire and PC strand wire.
| Technical parameter of straight wire drawing machine | |||||||||||

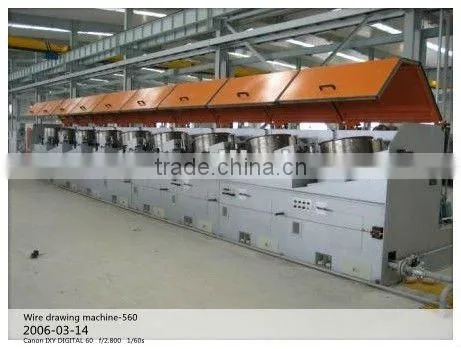

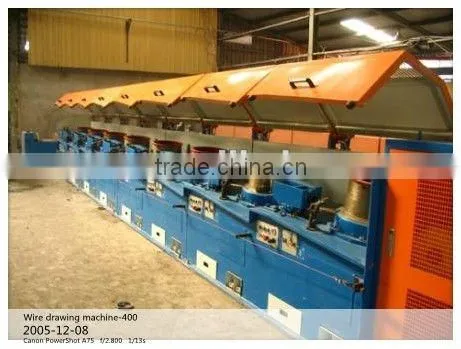

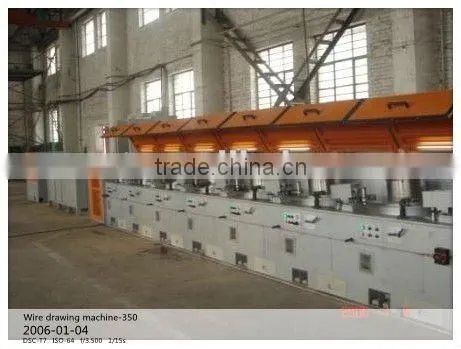

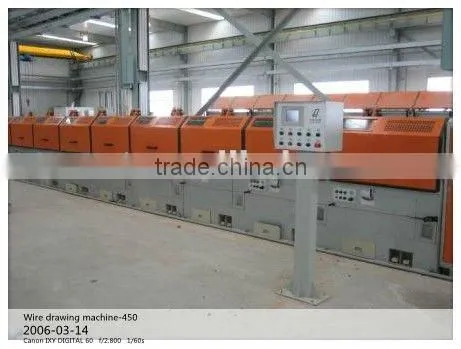

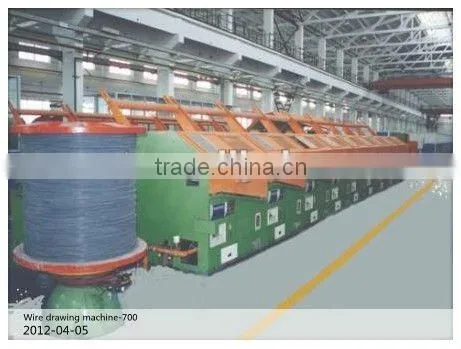

| Model(Block diameter) | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 | 900 | 1200 |
| Strength of inlet wire/MPa | ≤1250 | ||||||||||
| Number of Block | 2~11 | 2~11 | 2~11 | 2~12 | 2~12 | 2~12 | 2~12 | 2~9 | 2~9 | 2~9 | 2~9 |
| Maximum diameter of inlet wire(mm) | 2.8 | 3.5 | 4.2 | 5 | 5.5 | 6.5 | 8 | 10 | 12.7 | 14 | 16 |
| Minimum diameter of outlet wire(mm) | 0.5 | 0.6 | 0.75 | 1 | 1.2 | 1.4 | 1.6 | 2.2 | 2.6 | 3 | 5 |
|
Highest drawing speed(m/s) |
25 | 20 | 20 | 16 | 15 | 15 | 12 | 12 | 8 | 7 | 6 |
| Drawing power(kw) | 7.518.5 | 1122 | 1130 | 1537 | 2245 | 2255 | 3075 | 4590 | 55110 | 90132 | 110160 |
| Transportation system | two grade belt transmission;double enveloping worm wheels; gearbox with hard tooth sureface | ||||||||||
| Way of speed adjusting | AC Frequency conversion speed adjusting or DC speed adjusting | ||||||||||
| Way of control | Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function | ||||||||||
| Way of pay-off | Spooler pay-off,high pay-off frame,"" type pay-off,duck-nip pay-off,can pay-off without stop work | ||||||||||

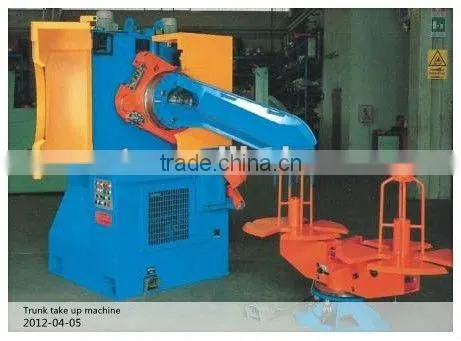

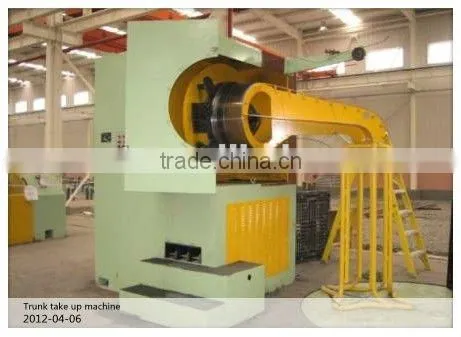

| Way of take-up | Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work | ||||||||||
| Main function | Slowdown to stop at fixed length automatically, wire broken test and stop work automatically,cut off any block to compose new technical process freely, slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information | ||||||||||
| Material that can be drawn | steel wire(High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire,rubber tube wire, spring steel wire,cord wire and so on), | ||||||||||
| Welding wire(Air protecting welding wire,submerged arc welding wire, flux cored wire and so on) | |||||||||||
| electric wire and cable(Aluminum-clad steel wire,copper wire, aluminum wire and so on) | |||||||||||
| alloy wire and other kinds of metal wire | |||||||||||
| Notes: All the parameters might be changed according to the actual situation. | |||||||||||
