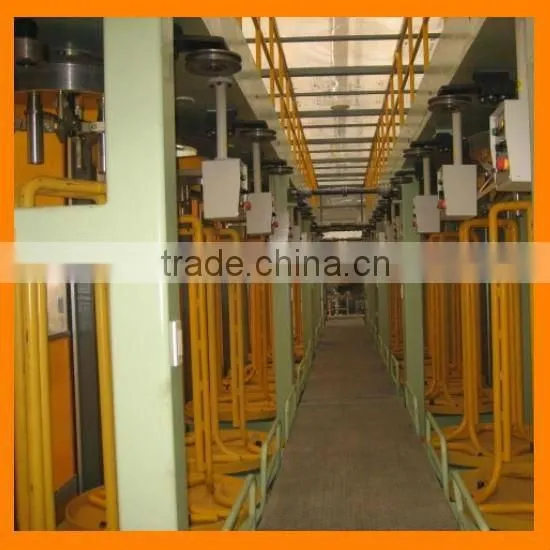

Pay-off and Take-up Machine/Wire Drawing Machine
US$ 50,000 - 5,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Harbor
Model Number:
LZ
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire Drawing MachineUS$ 50,000 - 5,000,000MOQ: 1 Set -
Straight Wire Drawing Machine(LZ700)US$ 50,000 - 5,000,000MOQ: 1 Set
-
PAY-OFF AND TAKE-UP MACHINENegotiableMOQ: 1 Set
-
Wire Collecting Machine(760RSL)NegotiableMOQ: 1 Set
-
Straight Wire Drawing Machine(LZ560)US$ 50,000 - 5,000,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Harbor
Model Number
LZ
Specifications
Pay-off and take-upturnover continuously, high efficiency,energy saving,low labor intensity;used for steel wire plating.
| Technical parameter of Pay-off and take-up machine | ||||
| Performance | 760RSL | 900RSL | 1150RSL | 1400RSL |
| Range of wire diameter(mm) | 0.81.65 | 1.24.5 | 2.68.0 | 3.010 |
| Maximum wire capacity of spooler | 800Kg | 1300kg | 2500kg | 5000Kg |
| Way of pay-off | Horizontal type or standing type,passive,damping-adjustable,rotating pay-off without torsion | |||
| Way of traction | Centralized traction or single traction(AC frequency conversion dragging) | |||
| Way of take-up | Single horizontal or standing spooler take-up,dragging by moment motor or frequency conversion motor | |||
| Way of configuration | centralized configuration with much lines(maximum 40lines),each wire can be dragged seperately and have separate operation platform for take-up control also the digital show. | |||
| Machine feature | Large coils can turnover contunously, high efficiency,energy saving,low labor intensity and so on;used for steel wire plating(copper coating,zinc coating)and heat treatment line. | |||
