Specifications
multi jet: dry type; remote reding with pulse output; Class B or Class C; PN 16bar or 10 bar; magnetic transmission
APPLICATION
Measuring the volume of cold potable water passing through the pipeline
FEATURES
Dry type, magnetic drive, antimagnetic function, pointer-roller indicator, easy and long term clear reading, frost resistance, long work life etc.
Available non-return valve, inlet strainer and pulse output on request.
WORKING CONDITION
Water temperature: ≤40 for cold water meter
≤90 for hot water meter
Water pressure: ≤1MPa or 1.6MPa optional
(10bar or 16bar optional)
MAXIMUM PERMISSIBLE ERROR
In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.
NOTE

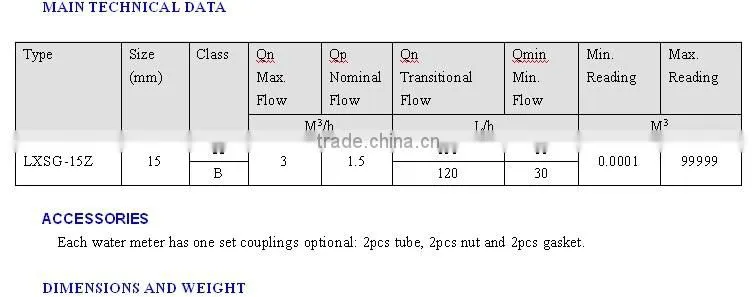

Technical data conform to International Standard ISO4064.
PRODUCTING PROCESS___________________________________________
PRODUCT DETAILS___________________________________________________________
Brass Connectors Option Plastic Connectors
Non-Return Valve
