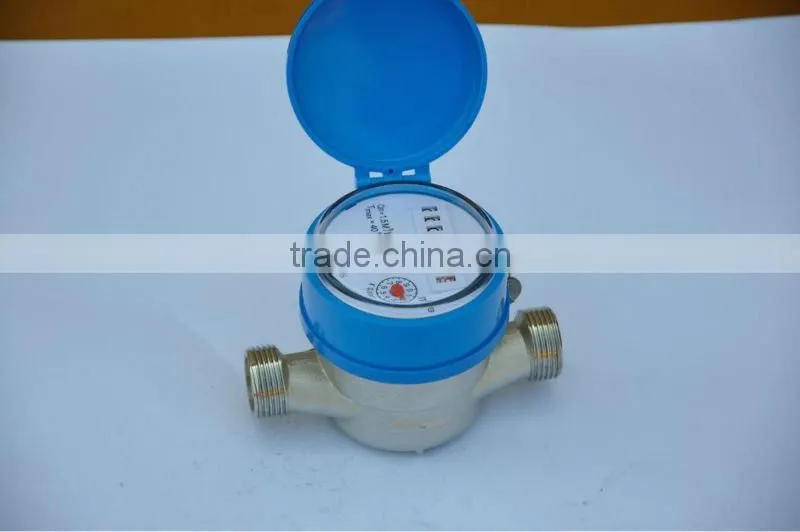

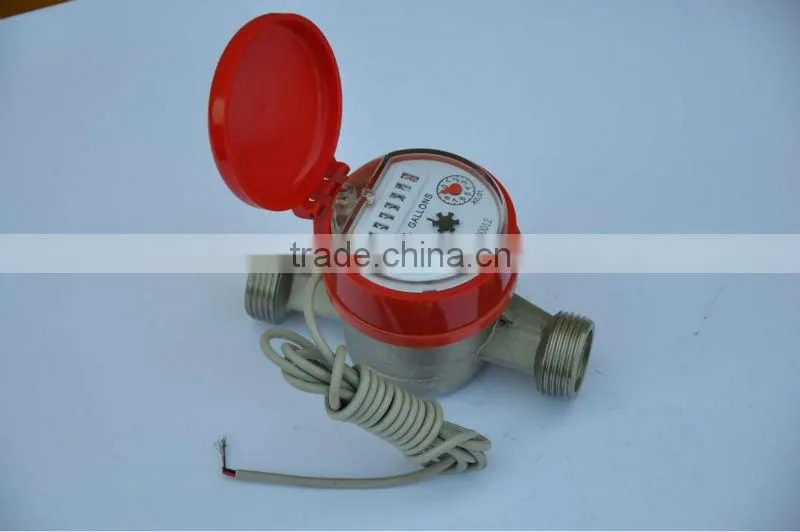

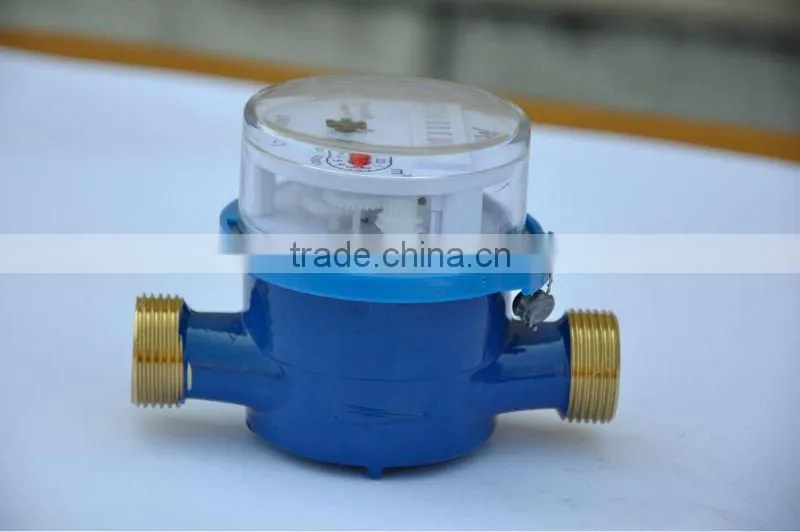

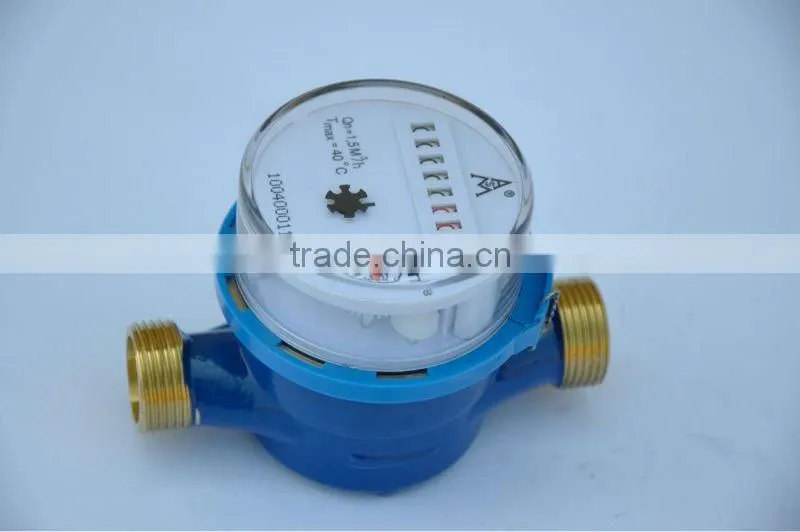

Single Jet Brass Water Meter LXSC-13D5-25D5
US$ 0.1 - 50
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aimei
Model Number:
LXSC-13D5-25D5
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Jet Brass Water MeterNegotiableMOQ: 1 Piece -
Volumetric Brass Water Meter LXH-15BUS$ 2 - 200MOQ: 1000 Pieces
-
Volumetric Brass Water Meter LXHY-15E-20E LXHG-15E-20ENegotiableMOQ: 1000 Pieces
-
Multi Jet Dry Type Water Meter MSA-15US$ 10.27 - 69.86MOQ: 1000 Pieces
-
Multi Jet Semi-dry(Liquid-sealed) Type Water Meter LXSY-15TNegotiableMOQ: 1 Unit
Place of Origin
Zhejiang, China
Brand Name
Aimei
Model Number
LXSC-13D5-25D5
Specifications
Measuring the volume of cold potable water passing through the pipeline.Application:
Measuring the volume of cold potable water passing through the pipeline
Features:
Dry type.small,light,magnetic drive,free rotating register,easy and long term clear reading etc.Magnet resistance with LXSC-13D3-25D3
Working Condition:
Water temperature: ≤40°Cfor cold potable water meter
pressure: ≤1Mpa
Maximum Permissible Error
a) In the lower zone from Qmin inclusive up to but excluding Qt is:Cold potable and Hot water meter±5% b)In the upper zone from Qt inclusive up to and including Qs is:Cold potable water meter±2% Hot water meter±3%
Measuring the volume of cold potable water passing through the pipeline
Features:
Dry type.small,light,magnetic drive,free rotating register,easy and long term clear reading etc.Magnet resistance with LXSC-13D3-25D3
Working Condition:
Water temperature: ≤40°Cfor cold potable water meter
pressure: ≤1Mpa
Maximum Permissible Error
a) In the lower zone from Qmin inclusive up to but excluding Qt is:Cold potable and Hot water meter±5% b)In the upper zone from Qt inclusive up to and including Qs is:Cold potable water meter±2% Hot water meter±3%
Type |
Size (mm) |
Class |
Qn Max. Flow |
Qp Nominal Flow |
Qn Transitional Flow |
Qmin Min. Flow |
Min. Reading |
Max. Reading |
|
m3/h |
m3 |
||||||||
LXSC-13D5 |
13 |
A |
3 |
1.5 |
150 |
60 |
0.0001 |
99,999 |
|
B |
120 |
30 |
|||||||
LXSC-20D5 |
20 |
A |
5 |
2.5 |
250 |
100 |
0.0001 |
99,999 |
|
B |
200 |
50 |
|||||||
LXSC-25D5 |
25 |
A |
7 |
3.5 |
350 |
140 |
0.0001 |
99,999 |
|
B |
280 |
70 |
|||||||
Type |
Size (mm) |
Length |
Width |
Height |
Connecting Thread D |
Weight (kg) |
mm |
D |
kg |
||||
LXSC-13D5 |
13 |
80/110 |
77 |
85 |
G 3/4B |
0.6/0.7kg |
LXSC-20D5 |
20 |
130 |
77 |
85 |
G 1B |
0.9 kg |
LXSC-25D5 |
25 |
160 |
77 |
92 |
G1 1/4B |
1.47kg |
