Specifications

multi jet: dry type; remote reding with pulse output; Class B or Class C; PN 16bar or 10 bar; magnetic transmission

APPLICATION  _____________________________________________________

Measuring the volume of cold potable water passing through the  pipeline



FEATURES ________________________________________________________

1/ Dry type, magnetic drive, antimagnetic function

2/ Pointer-roller indicator, easy and long term clear reading

3/ Frost resistance, long work life

4/ Available non-return valve, inlet strainer and pulse output on request.

5/ Class C water meter is available for 15mm (1/2 inch), 20mm (3/4 inch) and 25mm (1 inch).

6/ ISO 4064 & ISO 9001



≤90 for hot water meter

Water pressure≤1MPa or 1.6MPa   optional

(10bar or 16bar optional)

MAXIMUM PERMISSIBLE ERROR____________________________________

In the lower zone from Q_min inclusive up to but excluding Q_t is ±5% _ In the upper zone from Q_t inclusive up to and including Q_s is: cold water meter ±2%, hot water  meter    ±3%.

MAIN TECHNICAL DATA____________________________________________

Type	Size (mm)	Class	Qn Max. Flow	Qp Nominal Flow	Qn Transitional Flow	Qmin Min. Flow	Min. Reading	Max. Reading
			M3/h		L/h		M3
LXSG-15E	15	A	3	1.5	150	60	0.0001	99999
		B			120	30
		C			22.5	15
LXSG-20E	20	A	5	2.5	250	100	0.0001	99999
		B			200	50
		C			37.5	25
LXSG-25E	25	A	7	3.5	350	140	0.0001	99999
		B			280	70
		C			52.5	35
LXSG-32E	32	A	12	6.0	600	240	0.0001	99999
		B			480	120
LXSG-40E	40	A	20	10	1000	400	0.001	99999
		B			800	200
LXSG-50E	50	A	30	15	1500	600	0.001	99999
		B			1200	300



DIMENSIONS AND WEIGHT_________________________________________

Type	Size	Length	Width	Height	Connecting Thread D	Weight (kg)
	mm
LXSG-15E	15	165/190	99	104	G 3/4B	1.4/1.6
LXSG-20E	20	190/195	99	106	G 1B	1.7/1.8
LXSG-25E	25	260/225	103	114	G1 1/4B	2.6/2.4
LXSG-32E	32	260/230	104	117	G1 1/2B	2.8/2.7
LXSG-40E	40	300/245	124	147	G 2B	5.1/4.5
LXSG-50E	50	300/280	125	172	G2 1/2B	8.5/8.2
					Flange connect GB4216.4-84 D=165 D1= 125	11.5/11





PRODUCTING PROCESS___________________________________________



 PRODUCT DETAILS___________________________________________________________

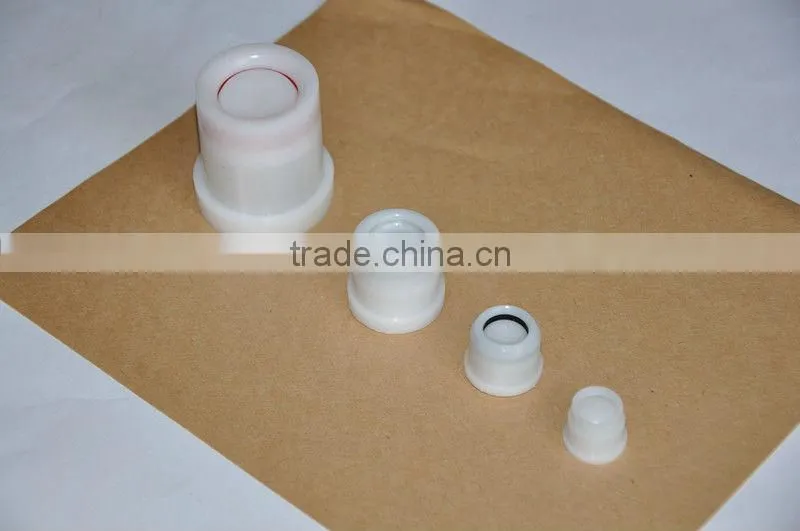

    Brass Connectors                             Option                             Plastic Connectors









Non-Return Valve
