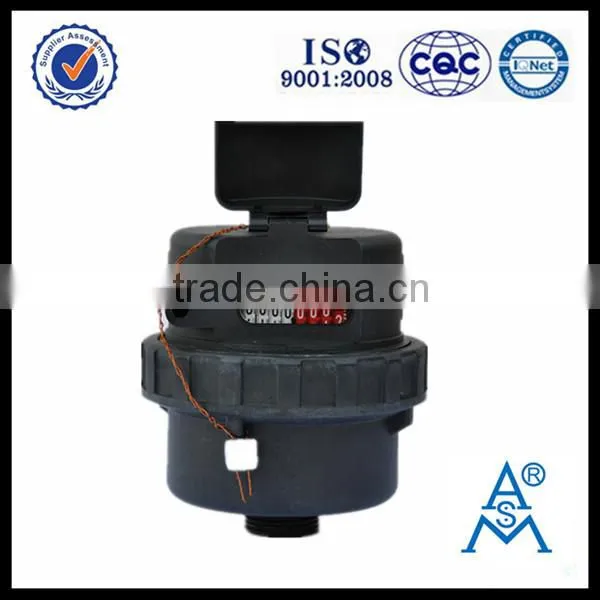

Help CenterVolumetric Rotary Piston Residential Water Meter LXH-15S-40S
Related Products
-
Single Jet Residential Water MeterNegotiableMOQ: 1 Piece -
Multi Jet Semi-dry(Liquid-sealed) Water Meter ISO 4064NegotiableMOQ: 1000 Pieces
-
Multi Jet Kent Water Meter ISO 4064US$ 2 - 50MOQ: 1000 Units
-
Woltman Bulk Water Meter ISO 4064US$ 50 - 2,500MOQ: 50 Pieces
-
Single Jet Mechanical Water MeterNegotiableMOQ: 1000 Pieces
Specifications
volumetric rotary piston plastic water meters1.ISO 4064 class C/D
2.installed at a horizontal, vertical
3. high-quality ma
volumetric rotary piston plastic water meters
APPLICATION
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline
FEATURES
Adopt volumetric rotary piston principle of measurement with conformity to ISO 4064 class C/D. High sensitivity enables the accurate measurement even at a low flow rate of 4 1/h No location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline. Register is sealed with a special liquid to keep a clear reading in long term service Mechanical parts use of high-quality material to ensure a stable performance.
WORKING CONDITION
Water temperature ≤50 °c
Water pressure ≤1.0 MPa (10 bar)
COMPLIANCE WITH STANDARD
ISO 4064 Class C / D
Type |
Size (mm) |
Class |
qs Max.Flow |
qp Nominal Flow |
qt Transitional Flow |
qmin Min. Flow |
Min.Reading |
Max.Reading |
m3/h |
L/h |
m3 |
||||||
LXH-15S |
15 |
C |
3 |
1.5 |
22.5 |
15.0 |
0.0001 |
9999 |
D |
17.25 |
11.25 |
||||||
LXH-20S |
20 |
C |
5 |
2.5 |
37.5 |
25 |
0.0001 |
9999 |
D |
28.75 |
18.75 |
||||||
Type |
Size |
Length |
Width |
Connection Thread |
Weight |
LXH-15S |
15 |
115 |
90 |
G3/4B |
0.6kg |
LXH-20S |
20 |
190 |
95 |
G1B |
0.8kg |
