Specifications
1.DC12V samsung 5630 led module2.3pcs LED 0.96W
3.Factory directly,best price
4.white/warm white/red/yellow/blue/green
Samsung 5630 LED Module specication
Dimension |
L84XW15XH6.2mm |
| LED quantity | 3 pcs 5630 SMD LED |
| Voltage | Input 12VDC |
| View angle | 120 degree |
| Current | 120mA |
| Consumption | 1.44 W |
| Luminance | 135 lm |
| Length between led modules | 60mm |
| Body | Injection PVC shell |
| Life | 50,000 hrs. |
| Lumen Maintenance:>95%@1,000hrs | |
| Color Temperature | 6000~6500K |
| Operation Temperature | -40°C- 60°C (-40°F~140°F) |
| Warranty | 36 months |
| IP | IP65 |
Samsung 5630 LED Module feature

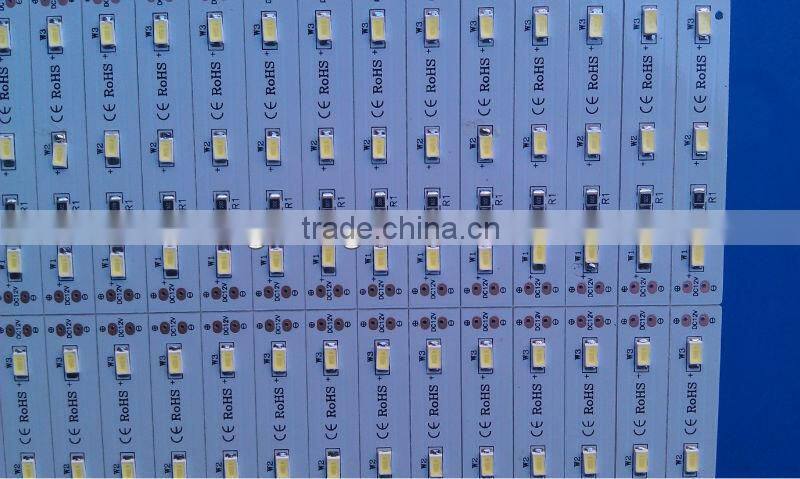

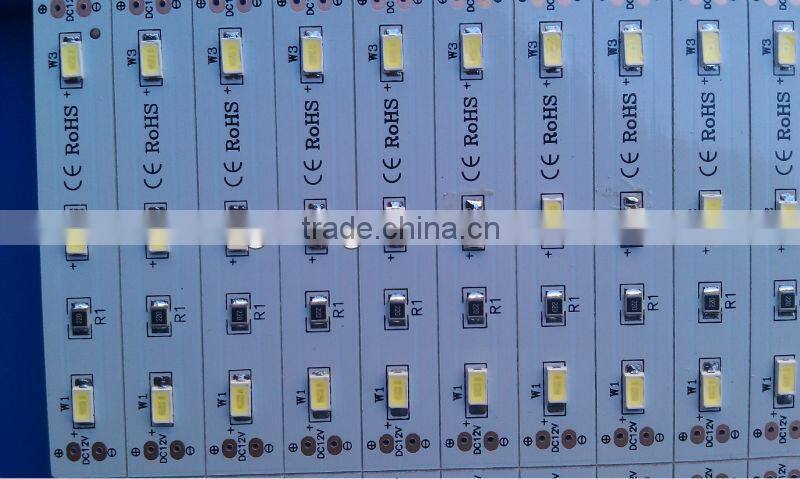

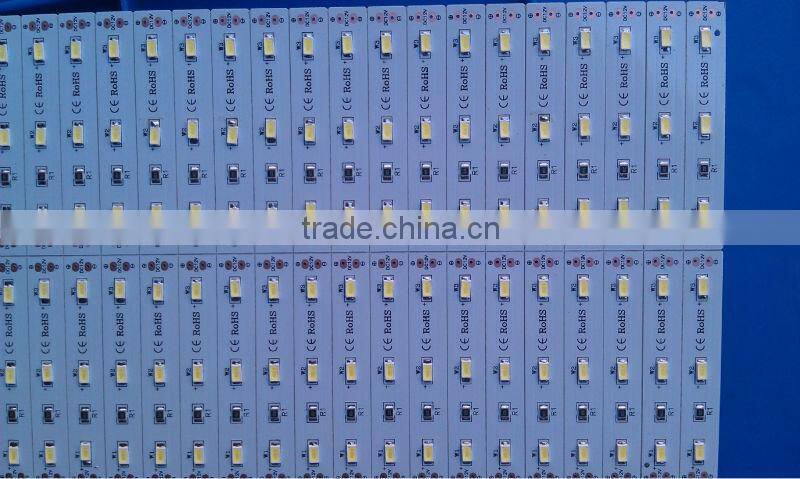

1.Each module contains 3pcs SMD LEDs. Has wide viewing angle
2.Super thin, only 5mm thick
3.High intensity of each module, suitable for big & medium-sized LOGO & signage
4.Perfect heat diffusion could prolong chips' lifespan

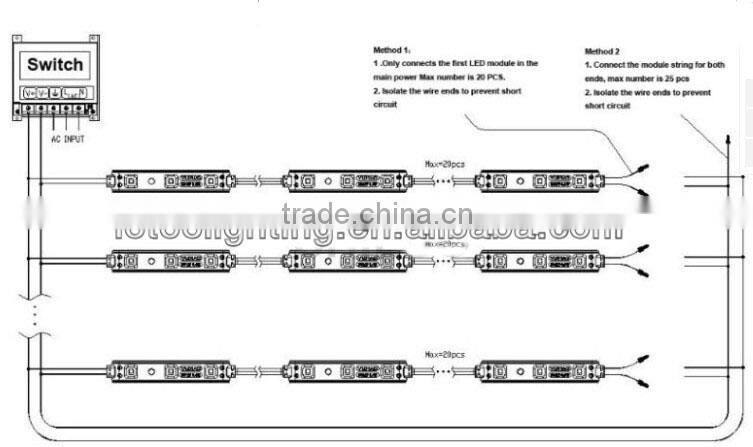

5.each strip is not more than 30 pieces if series connection is adopted
6.with hole on both ends, can be fixed by screw
7.Input: DC12V
8.IP rate: IP67
9.lifespan: 80,000hrs
Samsung 5630 LED Module advantage
Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and connectors.
·Extended Life
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenancetionsed module 5630:
Samsung 5630 LED Module application
1.Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements
2.Ideal for small channel letter & lighting box with depth about 10-15cm.
3.Edge lighting of transparent diffused materials
4.large area back lighting
5.Emergency / rescue signs
Our euipment show
