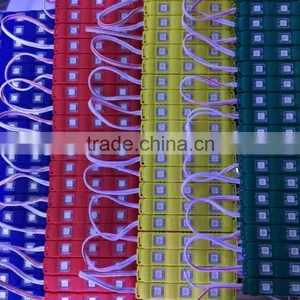

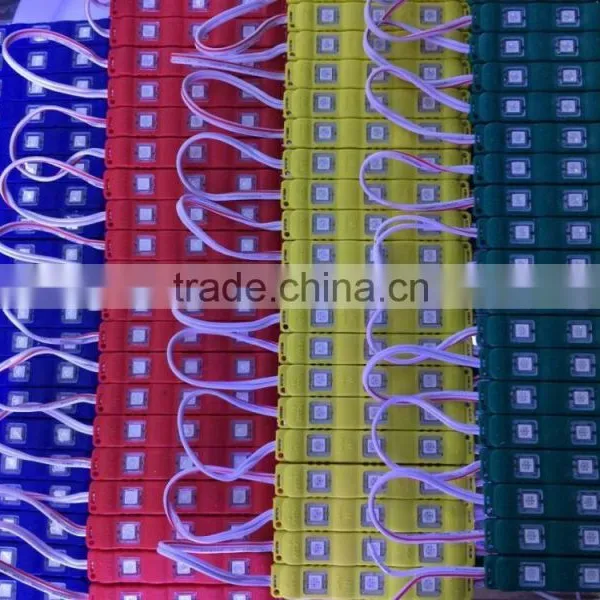

smd injection led module with lens details
Products Name |
smd5050 sigle color module |
Model NO. |
LT-7512-sigle color |
Power Consumption |
0.72W |
Work Voltage |
DC12V |
Beam Angle |
≥140 |
LED Quantity |
3pcs SMD5050 |
Color |
red,yellow,blue,green,white ,warm white and RGB |
Dimension |
75*12mm |
Waterproof Grade |
IP66 |
Work Temperature |
-40-60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2years |
SMD injection led module with lens specfication:
1,This product is applied to 4cm thickness,medium and large plastic light box.
2,No shadow,low thermal resistance,low brighless declines.
3,This module could be linked up to 40 pcs modules,more than 40pcs is stricty prohibited.
4,The diameter of the power cord should be based on the actual prohibited maxium current the product power,cabling length (recommended no more than 6 meters),and the voltage of transmission line.
5,Please connect wires following the positive and negative makings on the circuit board.
SMD injection led module with lens Feature:
1. High light efficiency
2. Elegant appearance with nice treated aluminum housing
3. Engineered to be cut every module for use
4. Weight only 13g each module
5. compact size for narrow space installation
6. Long life span up to over 30,000hours
7. IP65 waterproof for outdoor/Indoor.
8. Easy installation
smd injection led module with lens advantage
Adopt High brightness SMD led as light sources,
with high brightness, big viewing angle, and less light decay,
small design is the best choice for indoor signal and back lighting.
smd injection led module with lens Applications:
1. Channel letter backlighting
2. Advertisement sign backlighting, backlight or edge lighting for sign
3. Advertisement light box and billboard backlighting
4. Architectural lighting for window ,archway ,canopy and corridor
5. Decorative lights for holiday, event ,show, exhibition
6. DIY light for home use
Our euipment show
