Shanghai Towin Machinery Co.,Ltd. specializes in all kinds of silent oilfree air compressors,screw air compressors for years.We are leading manufacturer in Shanghai,China.With our professional team,we could satisfy your different air needs. Inquiry by phone will be warmly welcome, for more favourable prices. Also,you are warmly welcome to visit our factory and office in Shanghai. With the imported quality ,domestic price, we create the biggest value for our customers, products sell well in domestic, and export to nearly 200 countries and regions in the world.

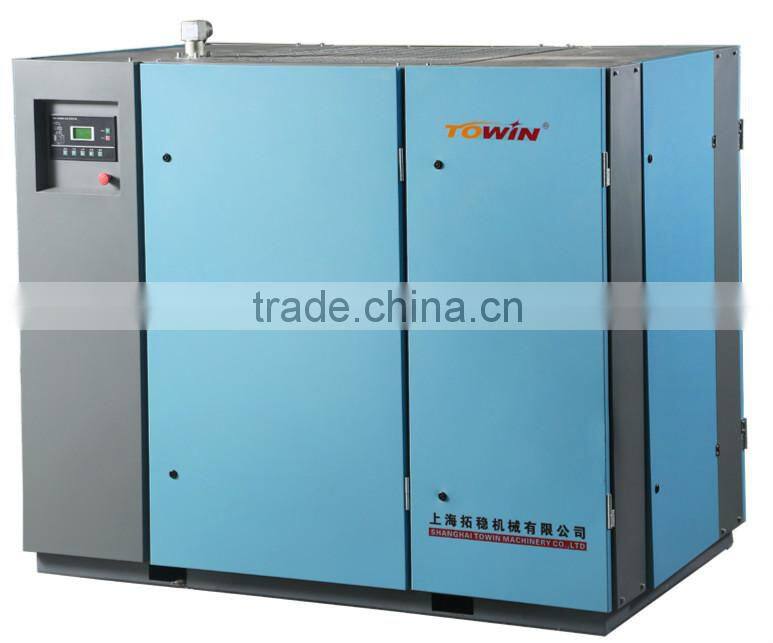

15KW 20HP air cooling screw air compressor China Products
BELT DRIVEN / AIR COOLING | ||
20HP 15KW screw type air compressor | ||
Model |
TW-20A |
|
Air Flow/Capacity (m³/ min) |
2.5 2.4 2.1 1.9 |
|
Pressure (MPa) |
0.7 0.8 1.0 1.2 |
|
Stage |
single |
|
Cooled Method |
Air Cooling |
|
Outlet Temperature |
≤Environment Temperature +15°C |
|
Noise level at 1 meter |
65±2 dB(A) |
|
Driven Way |
Belt Driven |
|
Electrical Supply |
110-660/3/50,60 V/ph/Hz |
|
Power |
15kw 20HP |
|
Starting Way |
Star-triangle Starting |
|
Dimension |
Length |
940 mm |
|
Width |
705 mm |
|
Height |
1120 mm |
Weight |
350 kg |
|
Outlet Connection |
G1 |
|
Oil Content |
1~3 ppm |
|

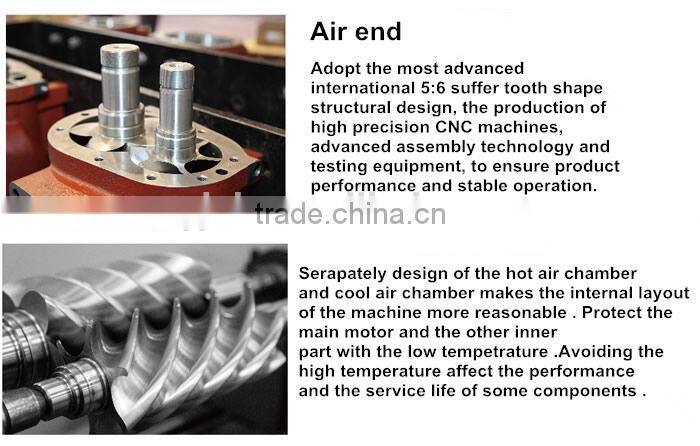

A.Rotors
The core of a screw compressor is the main engine ,the multi-stage fully automatic screw manufacturing technology operated by the latest CNC machine and the top grade materials ensure its least tolerance and greater reliability .The combining technology of the precise grinding processing and computer-controlled multi-step rotor 100% ensures the accuracy of the rotor shape.
B.Shaft Seal
Double rubber ring with metal frames could withstand quite certain pressure ,forming the lubricated shaft seal .The fixed bushings on the shaft adopting our company's exclusive technology for a special processing ensures its perfect sealing and longevity .
C.Bearings
In order to guantantee bearing's rotate speed and loading capacity ,our screw air compressors all equipped with imported SKF top-quality bearing with high bearing capacity ,which ensures its longevity and high performance.
Machine Manufacturing; Textile and Apparel; Building Material; Iron and Steel industry;
Non-ferrous Metal Metallurgy; Petrochemical Industry; Food and Drinks Industry;
Electrical and Electronic Industry; Military Industry.etc.
1.Original Manufacturer with 168 test before delivery.
2.Quality control each step from spare parts to production on the full of line.
3.Quality components and rigorous engineering ensure longer durability.
A.Pre-sales supports: Provide the best air solution according to customer's requirements and actual air condition,and then count the cost for full sets of equipment .
B.In-sales supports: Provide a full set of specification and user manual in English, as well as the general fault maintenance books, equipped with a remote call (computer) training user technology, and maintenance personnel to explain how to troubleshoot,until user can skillfully operate the equipment.
C.After-sales supports: We provide technical support to customers all the year around, and do not charge any service and consulting fee. Gurantee for 2 years.
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.
If you are urgent to get the price, please send the message on trade management or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost.
But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM / ODM for us?
Yes, the product packing can be designed as you want.
We have professional R&D deptartment to service for you.
Q4. Can I change the tank size?
Yes, we can make different tank size for you when the quatity of your order is above the MOQ.
Q5. Can I change the package?
Yes, you can choose carton, honey box or wooden case.
Q6. Can you make the air compressor with 110V, 60HZ?
Yes, we can make them 110V, 220V, 230V, 380V, 60hz or 50hz.
