100PSI-190PSI portable high flow screw air compressor
- 1600 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 2016 Christmas decoration wool felt balls
- Atlas Copco diesel portable compressor XAHS650E in stock
- Atlas Copco diesel portable air compressor Y1300 in stock
- Atlas Copco diesel portable air compressor XAS88 in stock
- Atlas Copco diesel portable air compressor XRHX930E in stock
- Atlas Copco diesel Medium and high pressure air compressor B7-41
Product Details
Condition: | New | Type: | Screw | Configuration: | Stationary |
Power Source: | AC Power | Lubrication Style: | Lubricated | Mute: | No |
Place of Origin: | Shanghai, China | Brand Name: | Towin air compressor | Model Number: | TW-50A AIR COMPRESSOR |
Voltage: | 380V 50Hz, 380~415V | Dimension(L*W*H): | 1170*870*1360 | Weight: | 700KG |
Certification: | CE,SGS, ISO9001 | Warranty: | 2 years | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
1. Screw air compressor
2. CE, SGS, ISO9001
3. China manufacturer
4. OEM accepted

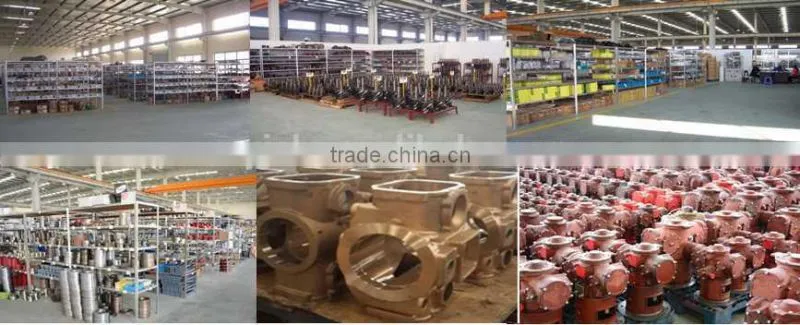

Company Information
Shanghai Towin Machinery Co. ltd. is a professional manufacturer in air compressing equipment industry which covers area about 10,000sqm . By the past several years of practice and research, we have developed not only a series of air compressor, but also more other air compressing treatment equipment. Our main products series: air compressor common piston type, oil free air compressor, air compressor screw type, air compressor AC/DC supply type, pressure vessel, explosion-proof device, air compressing treatment instrument, we offer OEM service.
Production Description
1). Germany tech core component,high performance and stable running.
2).the inverter can adjust the RPM of compressor automatically to keep the stable system pressure.
3). Directly and rapidly action based on air request,compressor can reach the best runing.
4).Energy Saving
5).5 years warranty period,you can trust our quality and servce.
Technical Parameters
BELT DRIVEN / AIR COOLING | ||

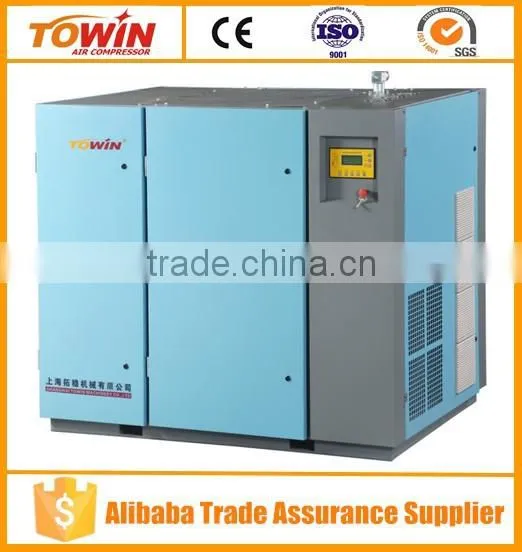

50HP 37KW screw type air compressor | ||
Model | TW-50A | |
Air Flow/Capacity (m³/ min) | 6.8 6.2 5.6 4.9 | |
Pressure (MPa) | 0.7 0.8 1.0 1.2 | |
Stage | single | |
Cooled Method | Air Cooling | |
Outlet Temperature | ≤Environment Temperature +15°C | |
Noise level at 1 meter | 65±2 dB(A) | |
Driven Way | Belt Driven | |
Electrical Supply | 110-660/3/50,60 V/ph/Hz | |
Power | 37kw 50HP | |
Starting Way | Star-triangle Starting | |
Dimension | Length | 1170mm |
| Width | 870 mm |
| Height | 1360 mm |
Weight | 700 kg | |
Outlet Connection | G1'' 1/4 | |
Oil Content | 1~3 ppm |
Main Engine Descriptions
A.Rotors
The core of a screw compressor is the main engine ,the multi-stage fully automatic screw manufacturing technology operated by the latest CNC machine and the top grade materials ensure its least tolerance and greater reliability .The combining technology of the precise grinding processing and computer-controlled multi-step rotor 100% ensures the accuracy of the rotor shape.
B.Shaft Seal
Double rubber ring with metal frames could withstand quite certain pressure ,forming the lubricated shaft seal .The fixed bushings on the shaft adopting our company's exclusive technology for a special processing ensures its perfect sealing and longevity .
C.Bearings
In order to guantantee bearing's rotate speed and loading capacity ,our screw air compressors all equipped with imported SKF top-quality bearing with high bearing capacity ,which ensures its longevity and high performance.

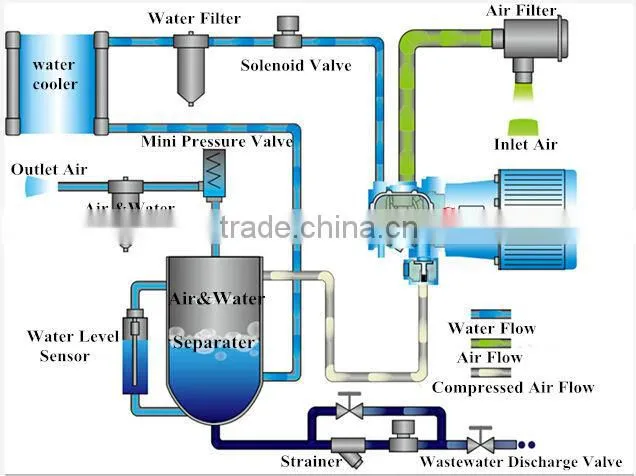

Working Flow Chart
Quality & Inspection:
1.Original Manufacturer with 168 test before delivery.
2.Quality control each step from spare parts to production on the full of line.
3.Quality components and rigorous engineering ensure longer durability.
Our services:
A.Pre-sales supports: Provide the best air solution according to customer's requirements and actual air condition,and then count the cost for full sets of equipment .
B.In-sales supports: Provide a full set of specification and user manual in English, as well as the general fault maintenance books, equipped with a remote call (computer) training user technology, and maintenance personnel to explain how to troubleshoot,until user can skillfully operate the equipment.
C.After-sales supports: We provide technical support to customers all the year around, and do not charge any service and consulting fee. Gurantee for 2 years.
FAQ:
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.
If you are urgent to get the price, please send the message on trade management or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost.
But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM / ODM for us?
Yes, the product packing can be designed as you want.
We have professional R&D deptartment to service for you.
Q4. Can I change the tank size?
Yes, we can make different tank size for you when the quatity of your order is above the MOQ.
Q5. Can I change the package?
Yes, you can choose carton, honey box or wooden case.
Q6. Can you make the air compressor with 110V, 60HZ?
Yes, we can make them 110V, 220V, 230V, 380V, 60hz or 50hz.
