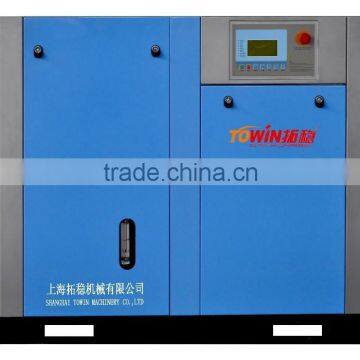

Help Center110KW Totally NO Oil Air Screw Type Compressors
Related Products
-
Oil Free Screw Air Compressor Water Lube CompressorUS$ 1 - 666MOQ: 1 Set -
75KW 100HP no Oil Screw Type Air CompressorUS$ 1 - 998MOQ: 1 Set
-
37KW 50HP Water Lube Screw Air CompressorUS$ 1 - 666MOQ: 1 Set
-
90KW 125HP Water Lube Screw Type Air CompressorUS$ 1 - 998MOQ: 1 Set
-
22KW Water Lube Oil Free Screw Air CompressorUS$ 1 - 666MOQ: 1 Set
Speccifications:
1. screw type air compressor
2. water lube, 100% oil free
3. OEM accepted
4. food medicine pharmaceuticals industry
Water-lube screw type air compressor
Towin oil-free scroll compressor using European technology to produce water-lubricated screw host, copper alloy casting, molding. Corrosion resistance, high temperature and low temperature without deformation, with a separate lubrication of internal waterways, to minimize wear of the host to reduce air pollution.
The compressor is matched with high-precision SKF bearing. The precise and even bite clearance ensures leak tightness, making sure the compressor become less power dissipation and lower energy consumption under the same working conditions, and achieve goals as following:
·Larger air capacity ·Higher efficiency
·More stability and reliable ·Longer service life
Screw air compressor parameters and showing :
| Model | TW110/150 water lube air compressor | ||
| Port | Shanghai | ||
| Air Flow (m3/min) | 20.5 | 18.0 | 17.0 |
| Pressure (bar) | 7 | 8 | 10 |
| Power | 11KW/55HP | ||
| Scape Pipe (inch) | DN80 | ||
| Noise dB(A) | 80 | ||
| Weight (KG) | 3100 | ||
| Dimensions (mm) | 2600*1480*1700 | ||
| Delivery | 25-30 working days after payment | ||
| Packaging | Standard foam blocked wooden box package | ||
screw air compressor features:
screw type air compressor main engine:
1)Using pure water for lubrication and cooling, the body's internal components combination is made of special material-copper alloy,never corrosion;
2)Always having pure water circulating in its systerm and the systerm will automatically change water at set time to ensure the quality of the water line and the body temperature is not higher than 50 degrees, so the water in the body will not suffer water scale problem;
3)Adopting high-end special bearing, silicone bearing, so there is no any problem using pure water for lubrication , high efficiency, lower noise,less shaft bearing combination;
4)Directly sprayed pure water in the body, because water has higher calorific value, so the compression chamber is almost in isothermal compression state, energy saving;
5)Direct-driven between body and motor,Lower rotation speed ,below 3000 RPM, No overdrive gear,longevity and low maintenance;
6)Apart from the air filter,pure Water will wash and filter the impurities in the air ,ensuring the outlet clean air, greatly reduce the load and supplies expense of post processing equipment .

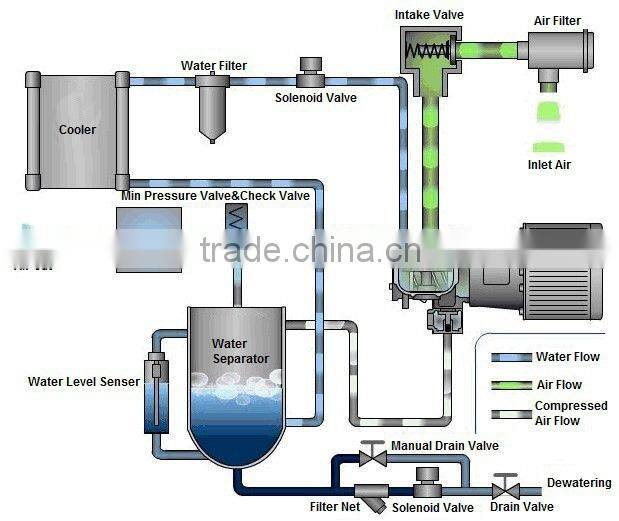

Water lube screw type air compressor workflow diagram:Comparision with oil lube screw air compressor:
| Water Lube: | Oil Lube: |
| 1. Water lubrication and cooling | 1. Oil lubrication and cooling |
| 2. Totally pure air | 2. Air quality could not reach to totally purity degree |
| 3. Low rotation speed, about 3000R.P.M. | 3. High rotation speed, about 3000R.P.M-high consumption |
| 4. Low temperature, about 55℃ | 4. High temperature, not safe |
| 5. Low maintenance cost | 5. High maintenance cost |
Water lube screw type air compressorApplication:
Applied Fields: Hospital, Chip, Textile, Biotechnology, Pharmaceuticals, Food Packing, Rice Mill etc.
These industries have to get rid of any impurity and oil pollution risk, otherwise it will lead to serious consequences:product damage, then credibility, economy will be badly ruined. So must using water lubrication oil-free air compressor, it is only it that could achieve to 100% absolute purity without any air pollution.
Our services:
A.Pre-sales supports: Provide the best air solution according to customer's requirements and actual air condition,and then count the cost for full sets of equipment .
B.In-sales supports: Provide a full set of specification and user manual in English, as well as the general fault maintenance books, equipped with a remote call (computer) training user technology, and maintenance personnel to explain how to troubleshoot,until user can skillfully operate the equipment.
C.After-sales supports: We provide technical support to customers all the year around, and do not charge any service and consulting fee. Gurantee for 2 years.
