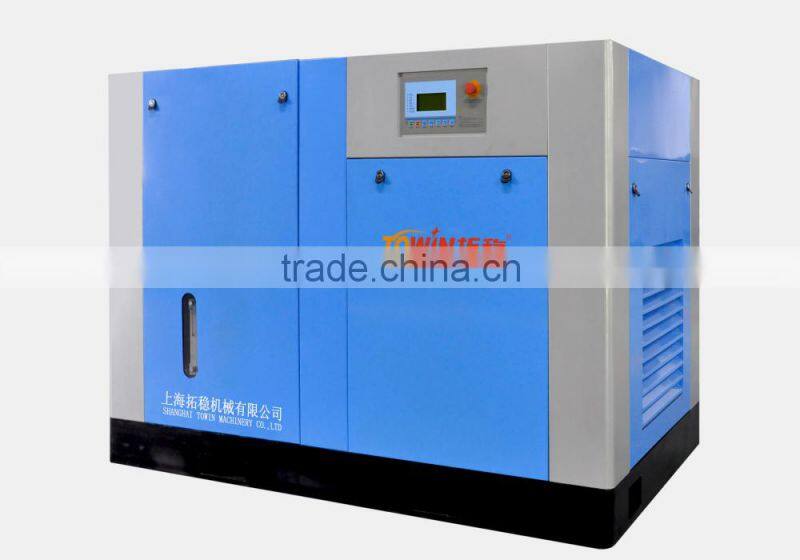

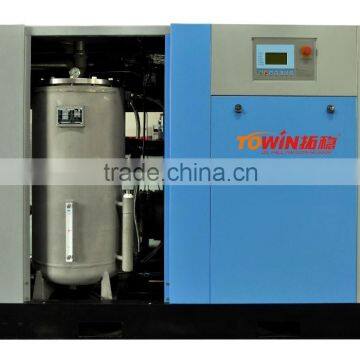

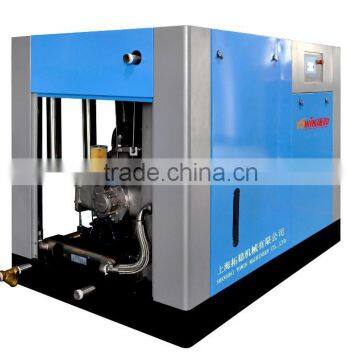

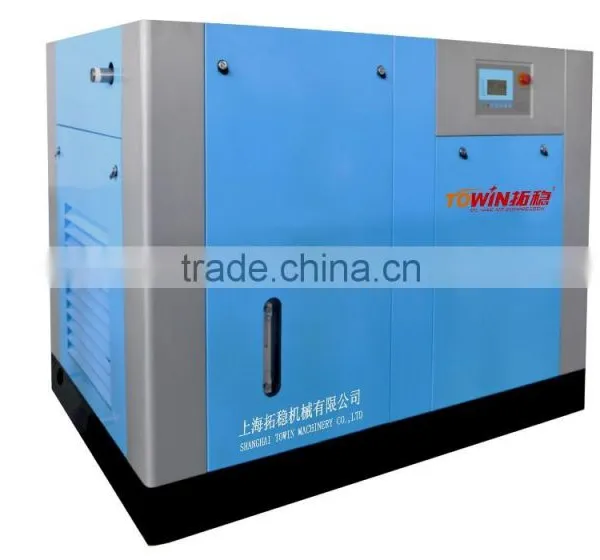

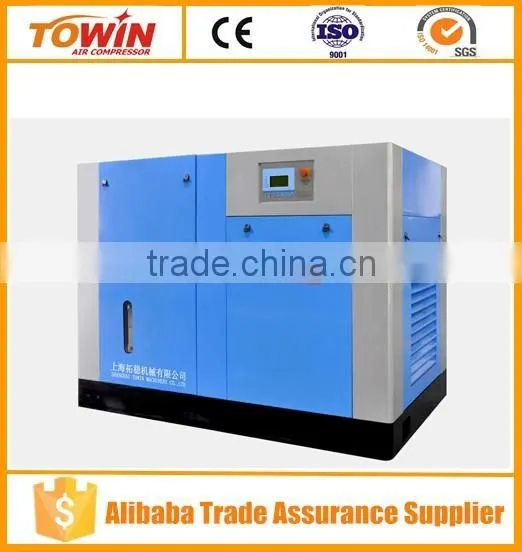

55KW 75HP oil free water lube air screw compressor Quality Choice

Specifications:

1. screw air compressor

2. water lube, totally oil free

3. CE,SGS, ISO9001 Certificate

4. OEM food and medicine

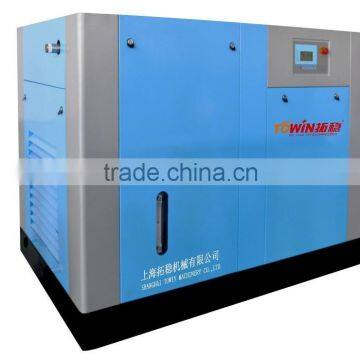

      55KW  75HP oil free water lube air screw  compressor

Towin oil-free scroll compressor using European technology to produce water-lubricated screw host, copper alloy casting, molding. Corrosion resistance, high temperature and low temperature without deformation, with a separate lubrication of internal waterways, to minimize wear of the host to reduce air pollution.

The compressor is matched with high-precision SKF bearing. The precise and even bite clearance ensures leak tightness, making sure the compressor become less power dissipation and lower energy consumption under the same working conditions, and achieve goals as following:

·Larger air capacity ·Higher efficiency

·More stability and reliable ·Longer service life

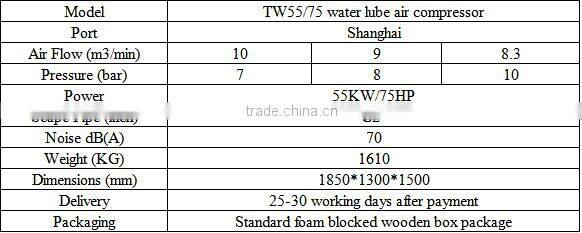

Oil free screw air compressor parameters

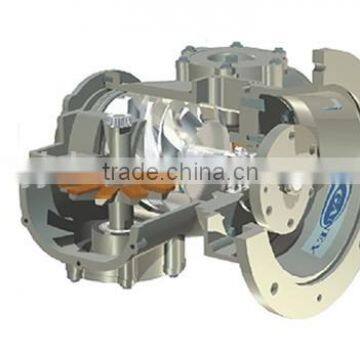

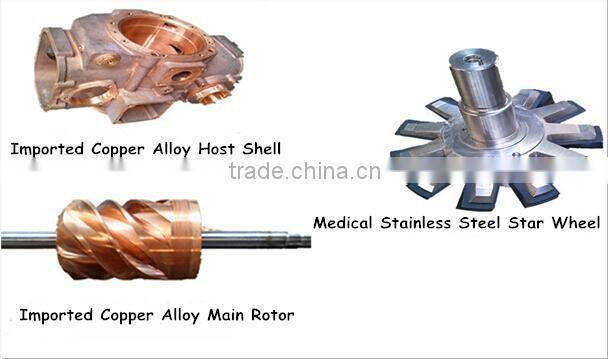

Oil free screw air compressor main engine

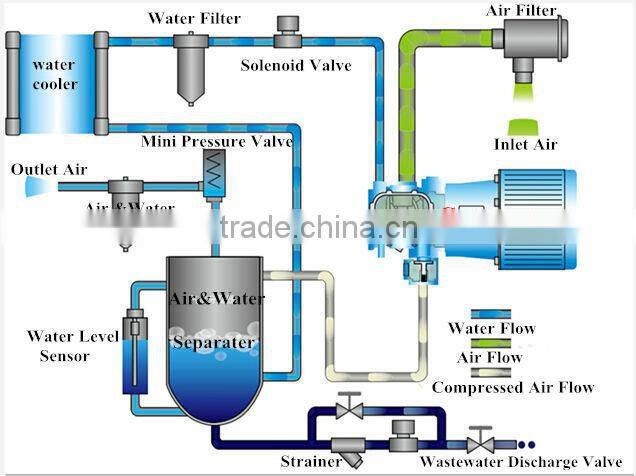

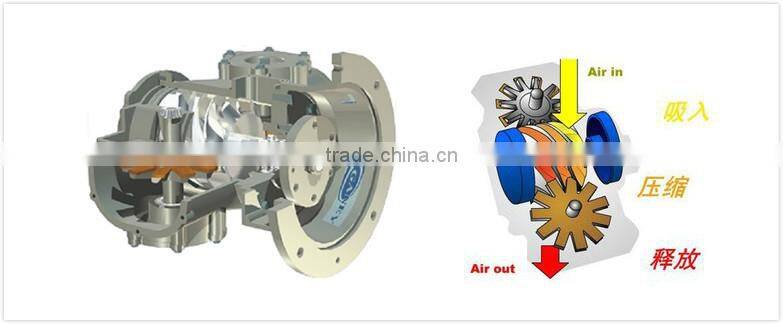

Oil Free Screw Air Compressor Workflow Diagram

1)Using pure water for lubrication and cooling, the body's internal components combination is made of special material-copper alloy,never corrosion;
2)Always having pure water circulating in its systerm and the systerm will automatically change water at set time to ensure the quality of the water line and the body temperature is not higher than 50 degrees, so the water in the body will not suffer water scale problem;
3)Adopting high-end special bearing, silicone bearing, so there is no any problem using pure water for lubrication , high efficiency, lower noise,less shaft bearing combination;
4)Directly sprayed pure water in the body, because water has higher specific heat value, so the compression chamber is almost in isothermal compression state, energy saving;
5)Direct-driven between body and motor,Lower rotation speed ,below 3000 RPM, No overdrive gear,longevity and low maintenance.
6)Apart from the air filter,pure Water will wash and filter the impurities in the air ,ensuring the outlet clean air, greatly reduce the load and supplies expense of post processing equipment .

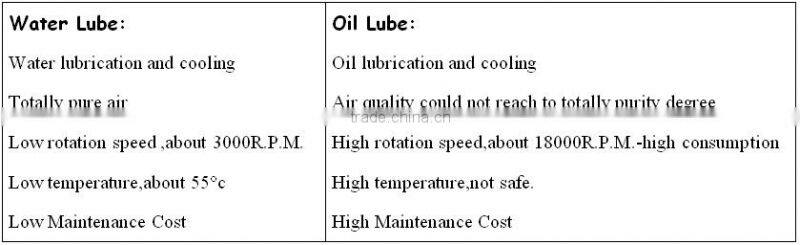

 Difference between Oil-lube and water-lube

 Oil free screw air compressor application:

Applied Fields:Hospital,Chip,Textile,Biotechnology,Pharmaceuticals,Food Packing,Rice Mill etc.

These industries have to get rid of any impurity and oil pollution risk, otherwise it will lead to serious consequences:product damage, then credibility, economy will be badly ruined. So must using water lubrication oil-free air compressor, it is only it that could achieve to 100% absolute purity without any air pollution.

Our services:

1) Reply your inquiry in 24 working hours
2) Experienced staffs answer all your questions in fluent English
3) Customized design is available. OEM&ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5) Special discount and sales area protection could be provided to our distributor and big regular customers.
6)2 years gurantee.
