Specifications

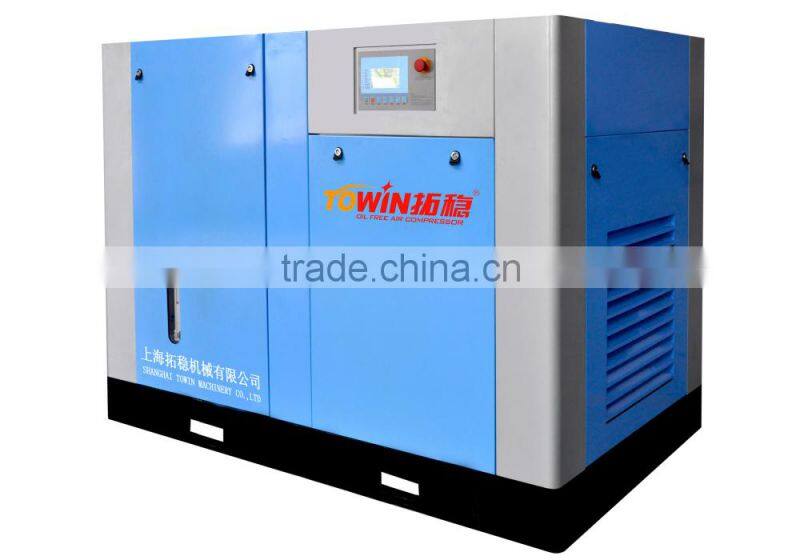

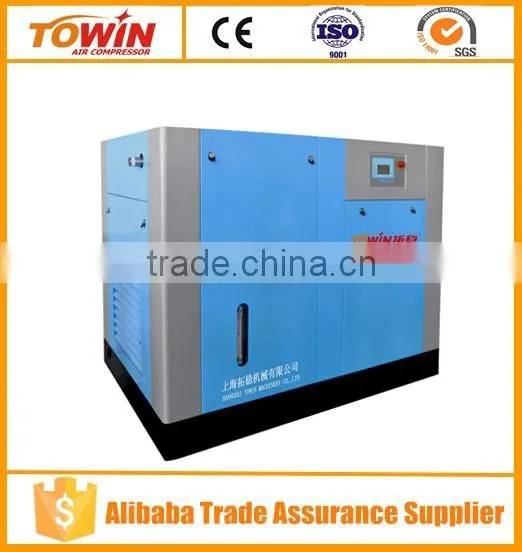

11~132KW oil free screw compressor manufacturer TW 11/15
1) Water Lube, 100% oil free screw air compress
2) CE, SGS, ISO9001 Certificate
3) OEM accepted
4) 2 years gurantee
Water-lube 100% oil free screw air compressor
1)Using pure water for lubrication and cooling, the body's internal components combination is made of special material-copper alloy,never corrosion;
2)Always having pure water circulating in its systerm and the systerm will automatically change water at set time to ensure the quality of the water line and the body temperature is not higher than 50 degrees, so the water in the body will not suffer water scale problem;
3)Adopting high-end special bearing, silicone bearing, so there is no any problem using pure water for lubrication , high efficiency, lower noise,less shaft bearing combination;
4)Directly sprayed pure water in the body, because water has higher calorific value, so the compression chamber is almost in isothermal compression state, energy saving;
5)Direct-driven between body and motor,Lower rotation speed ,below 3000 RPM, No overdrive gear,longevity and low maintenance;
6)Apart from the air filter,pure Water will wash and filter the impurities in the air ,ensuring the outlet clean air, greatly reduce the load and supplies expense of post processing equipment .

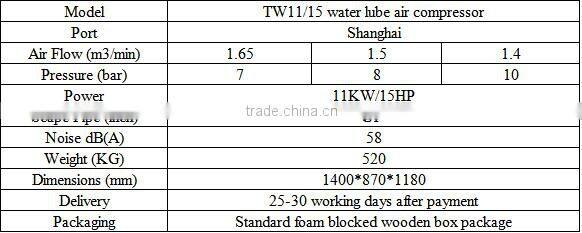

Water-Lube Screw Air Compressor Details
Model |
Power |
Pressure |
Volume Flow |
Noise |
Scape-Pipe |
Dimensions |
Weight |
KW/HP |
Mpa |
m³/min |
dB(A) |
inch |
mm |
KG |
|
PLGW11 |
11/15 |
0.7 |
1.65 |
58 |
G1'' |
1400*870*1180 |
520 |
0.8 |
1.50 |
||||||
1.0 |
1.40 |
||||||
PLGW22 |
22/30 |
0.7 |
3.60 |
61 |
G1'' |
1400*870*1180 |
560 |
0.8 |
3.50 |
||||||
1.0 |
3.20 |
||||||
PLGW37 |
37/50 |
0.7 |
6.60 |
66 |
G11/2 |
1850*1300*1500 |
1050 |
0.8 |
6.10 |
||||||
1.0 |
5.80 |
||||||
PLGW55 |
55/75 |
0.7 |
10.00 |
70 |
G2'' |
1850*1300*1500 |
1610 |
0.8 |
9.00 |
||||||
1.0 |
8.30 |
||||||
PLGW75 |
75/100 |
0.7 |
13.00 |
72 |
G2'' |
1850*1300*1500 |
1880 |
0.8 |
11.80 |
||||||
1.0 |
10.60 |
||||||
PLGW90 |
90/125 |
0.7 |
16.10 |
76 |
DN80 |
2600*1480*1700 |
2700 |
0.8 |
15.00 |
||||||
1.0 |
13.00 |
||||||
PLGW110 |
110/150 |
0.7 |
20.50 |
80 |
DN80 |
2600*1480*1700 |
3100 |
0.8 |
18.00 |
||||||
1.0 |
17.00 |
||||||
PLGW132 |
132/180 |
0.7 |
23.50 |
80 |
DN80 |
2600*1480*1700 |
3250 |
0.8 |
20.20 |
||||||
1.0 |
18.20 |
Main Engine Components
Why choose water lube screw compressor?
Applied Fields:Hospital,Chip,Textile,Biotechnology,Pharmaceuticals,Food Packing,Rice Mill etc.
These industries have to get rid of any impurity and oil pollution risk, otherwise it will lead to serious consequences:product damage, then credibility, economy will be badly ruined. So must using water lubrication oil-free air compressor, it is only it that could achieve to 100% absolute purity without any air pollution.
Work Folw ChartDifferences between water lube and oil lube
Our services:
1) Reply your inquiry in 24 working hours
2) Experienced staffs answer all your questions in fluent English
3) Customized design is available. OEM&ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5) Special discount and sales area protection could be provided to our distributor and big regular customers.
6)2 years gurantee.
