STRUCTURAL FEATURES:
The shredding chamber is closely mated with the left-hand drive. The cutter consists of blade and hooks. The function of hooks is to catch tires. Special anti-wear hard alloy is built-up welded on the working face of the cutter, which are durable and corrosion proof.
The shredding chamber is a combined structure and the cutter shaft is supported with rolling bearings, which is convenient for installation and maintenance.

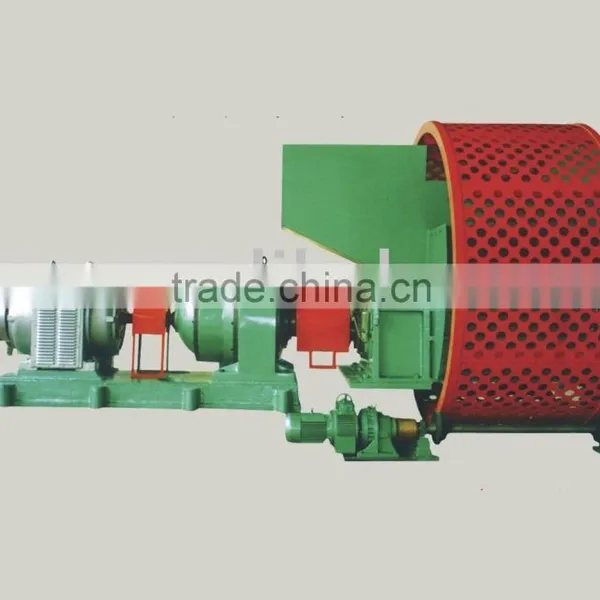

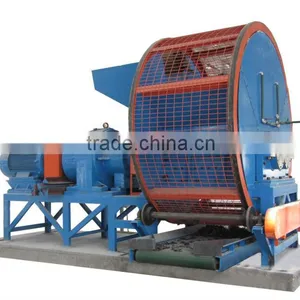

The cylinder sieve or back-feed conveyer (optional) will repeatedly send those unqualified chips or shivers back to the shredding chamber, and at the same time send out those qualified ones.
The transmission system adopts a Hard Face Gear Reducer, which has a compacted structured with higher transmission efficiency, lower noise and longer service life.
The shredder is compactly structured and practically collocated. It is easy and reliable for operation and convenient for both installation and maintenance.
APPLICATION:
The machine is applicable for breaking up complete bias or radial (steel) tires.
Technical Parameters:
Model & Spec. |
LP-1200 |
Cutter Number |
18 |
Rotating Speed of Cutter Shaft |
13(r/min) |
Capacity |
2000Kg/h |
Feeding Requirement |
Complete tires ≤Φ900) after taking off bead ring and all kinds of tread slabs |
Discharging Size |
Strips (60mm wide) or blocks (60×60mm) |
Main Motor Power |
90KW |
Speed Reducer |
Hard Face Gear Reducer |
Overall Dimensions |
5520×3300×3575 (mm) |
