Mining Machinery

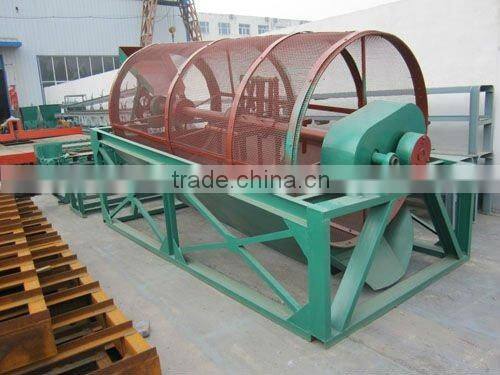

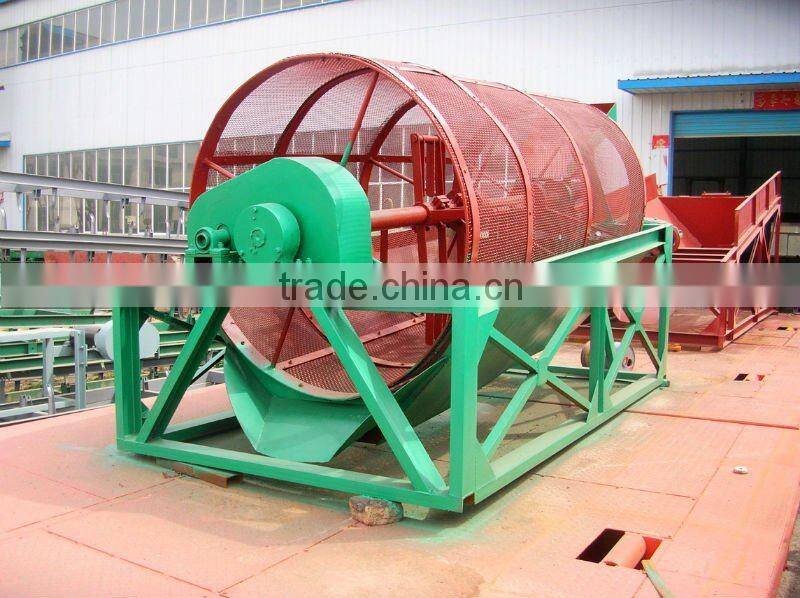

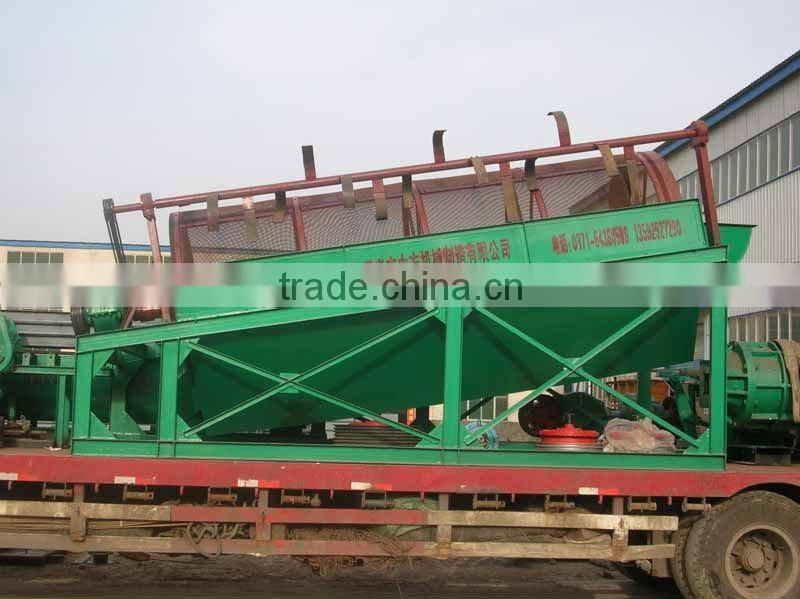

GTS1000*3000 Roller Screen
Work Principle:
1.Roller screen mainly consists of motor,reduction gear,roller device,frame,hermetic,seal material,in and out of mouth.
2.Roller device slantly put on the frame.The motor drive the roller device to move around axis.
3.Due to roller device's tilt and rotation, material put into the roller device begin rolling over.
4.Then the qualified material pass through the screen and the rest of material discharge from the bottom.
Work Range:
1 Select different size of stones
2 Separation of the mud and cement
3 Separation of stone and sand
4 Separation of coal briquette and pulverized coal
5 Select different sizes of mine and powdery material
Technical Parameters:
| Specification | Productivity(m3/h) | Motor power(kw) | Matched V-belt | Dimensions(mm) |
| GTS1000*3000 | 20-25 | Y112M-4-4KW | B*3-1800 | 4070*1300*2100 |
| GTS1000*4000 | 30-40 | Y132S-4-4.5KW | B*3-2200 | 5042*1500*2400 |
| GTS1500*5000 | 35-50 | Y132S-4-5.5KW | B*3-2200 | 6100*2000*3200 |
Service Policy:
1.Pre- sales
1>Help confirm the proper machine based on clients' need
2>Design customized project for clients based on clients' need
3>Design and manufacture machines based on clients' need
2.In sales
1>Deliver the machines to clients
2>Send engineers to customers' scene to guide the clients installation and debugging
3>Train technicists and workers for clients
3.After sales
1>Provide spare parts for clients
2>Check and maintain the machines regularly
