Efficient JK40 automatic clay brick making machine from China

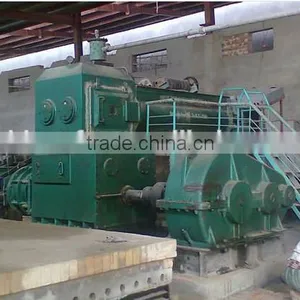

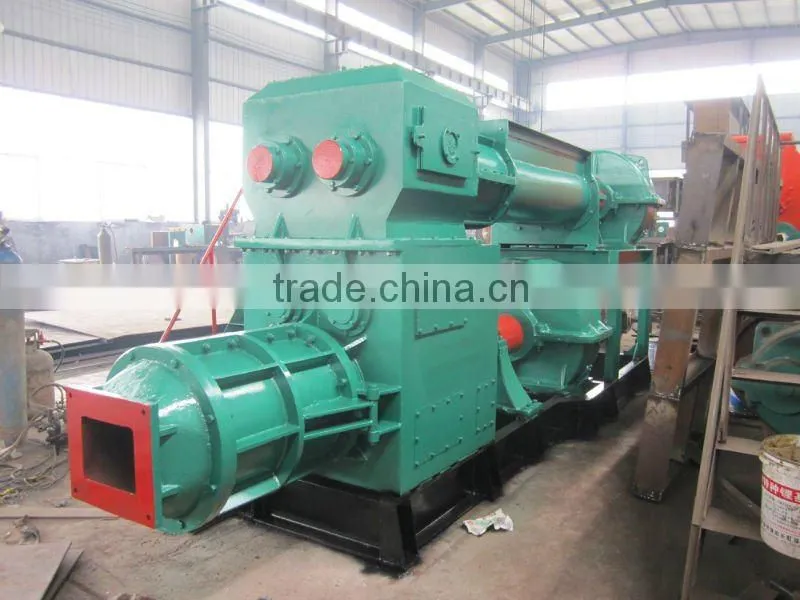

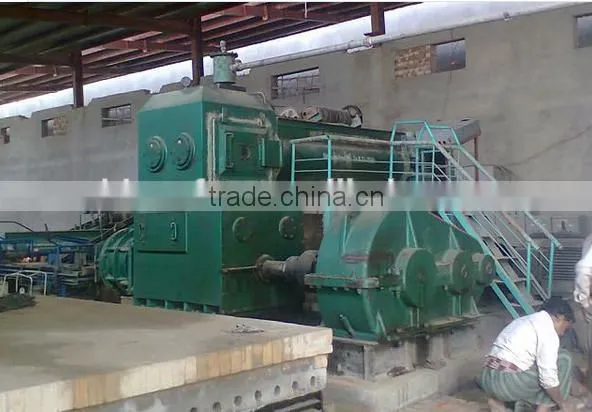

1.Product instruction for JK40 series vacuum brick machine:
Work rang:It is used to produce hollow and solid bricks which are to be fired.It can prodyce solid and hollow bricks with the materials of coal gangue,shale,high volume fly ash,urban construction waste,gangue waste,inferior soil.
Technology:It adopts the vacuum extruding technology.It makes material less impurity and strong hardness.Use a vacuum pump to create vacuum environment in the machine.
Structure:It is made from carbon steel and alloy steel and whole steel welding so that it has compact structure.
Process:The main parts,such as axles,gears,reamer,adopt high chrome casting,quenching,tempering process.So the machine have long service life.
Power:This machine is equipped with one motor to stirring and extrude.This design can save 30%energy.
Advantage:It has the same function with the German machine,while the price is much lower.
1.Compact and simple structure;
2.Easy operation;
3.Energy and labor saving;

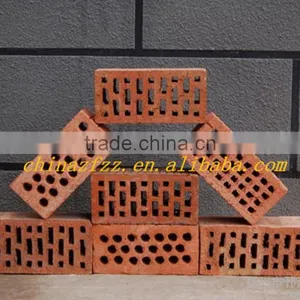

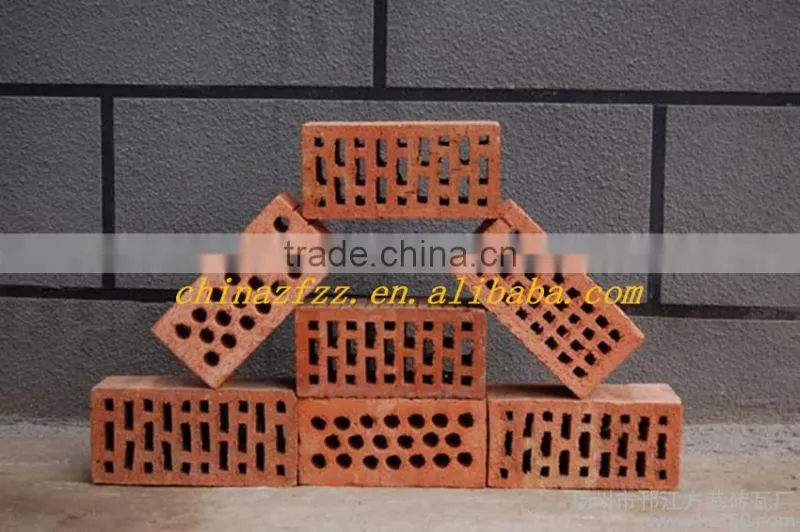

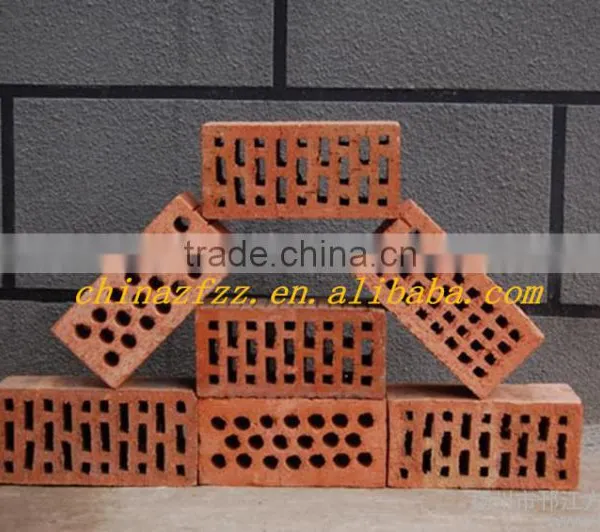

4.Can make solid and hollow bricks;
5.Perfect performance
Model |
Productivity (piece/hour) |
Power (KW) |
Spindle speed (r/min) |
Matched triangle belt(mm) |
External size(mm) |
JK60/5538 |
14000-20000 |
Y4-75 Y4-160-200 |
36 20 |
9SPB-5000 11SPC-6000 |
7500×3300×2800 |
JK50/45B-30 |
12000-16000 |
Y4-55 Y4-110-132 |
36 25 |
8SPB-4500 9SPC-5500 |
6500×3100×2500 |
JK45/40D-30 |
10000-14000 |
Y4-45 Y4-110 |
49 30 |
7SPB-4500 8SPC-5500 |
6320×2900×2300 |
JK40-40D-20 |
8000-12000 |
Y4-37 Y4-75-90 |
45 25 |
5SPB-4000 9SPB-5000 |
4000×2570×2000 |
JK35-35C-20 |
6000-9000 |
Y4-30 Y4-55-75 |
51 45 |
7C-4000 8SPB-4500 |
4600×2410×1775 |

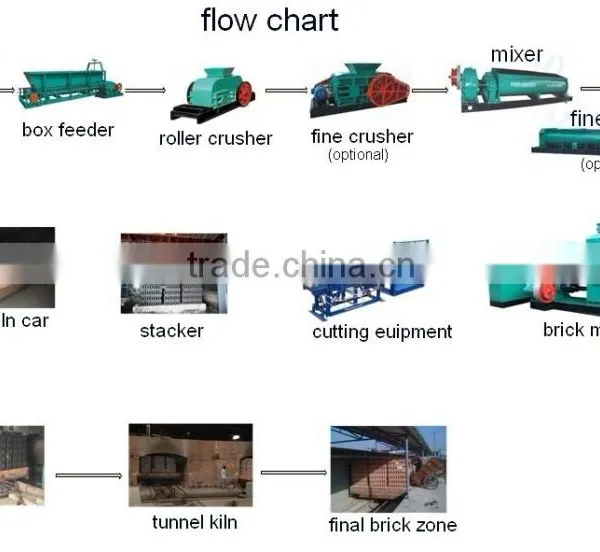

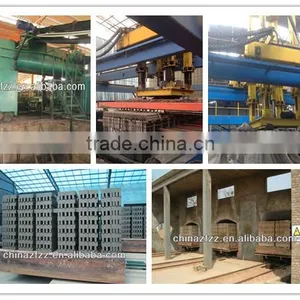

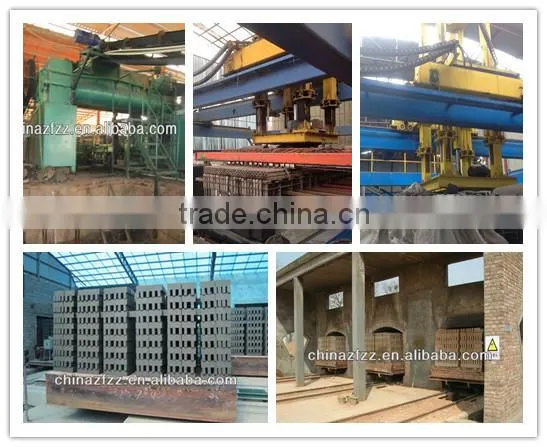

The whole set of machinery of clay brick making machine production line
No. |
Machinery |
1 |
Box feeder |
2 |
Belt conveyor |
3 |
Primary roll crusher |
4 |
Belt conveyor |
5 |
Double shaft mixer |
6 |
Belt conveyor |
7 |
High speed roll crusher |
8 |
Belt conveyor |
9 |
Double shaft mixer |
10 |
Belt conveyor |
11 |
single stage de-airing extruder |
12 |
Vacuum pump |
13 |
Air compressor |
14 |
Auto brick cutting system |
15 |
Belt conveyor (waste brick return to mixer) |
16 |
Control panels |
17 |
V Belt |
18 |
Spare parts |
19 |
dryer |
20 |
kiln |
1. Our company is a specialized brick making machine manufacturer. We can make brick making machines based on your demand such as brick size, capacity etc.
2. Our company can supply brick kiln building, make full complete kiln operating machines. Arrange engineer and technicians go to your area for installation machines and guiding the kiln building and design etc.
3. Our company keep a file for you begin you plan to buy brick machines, so that when you have questions, we can supply good suggestions for you without delay.
4. Our company supply matched spare parts for you when you in need any time.
After-sake service:
1.we design the brick project according to your site map.
2.we offer the whole brick production line and related equipments as contract;
3.we provide I piece of complete technical drawings for installation.
4.we send experienced professional engineers for installation and training until learned.
5.we provide your spare parts with cost price and brick making technology consultancy for free all the time.

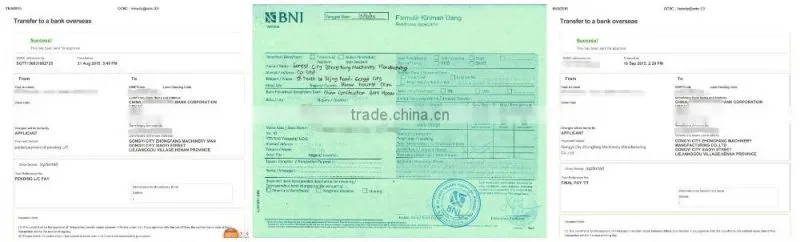

Part of engineer visa and bank slip:
1.Q: What’s your minimum order quantity?
A: One set.
2.Q: How long can you delivery the machine?
A: Generally, we can deliver the machine in 30 days.
3.Q: How much land area and how much investment do we need to open on clay brick plant:
A: Different daily capacity need different area and investment, we would give you suggestions after
getting your message to us.
4.Q: Are your products qualified?
A: All of our machines hold the ISO, CE certificate, and each set of machine must pass a great number
of strict testing ensure to offer the best quality to our customers.
5.Q: Are you trading company or manufacturer?
A: We are professional manufacturer of brick making machine,our products have been exported to
more than 18 countries of Asia, South Africa, and get a good reputation in the world.
6.Q:Are you website about you company?
/v_show/id_XNzAxMjg1MTQw.html?from=s1.8-1-1.2
/v_show/id_XNzAxMjQzNDA4.html?from=s1.8-1-1.2
/v_show/id_XNTIyOTQ0MzY4.html?from=s1.8-1-1.2
