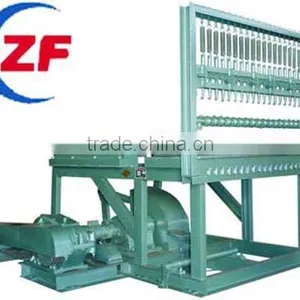

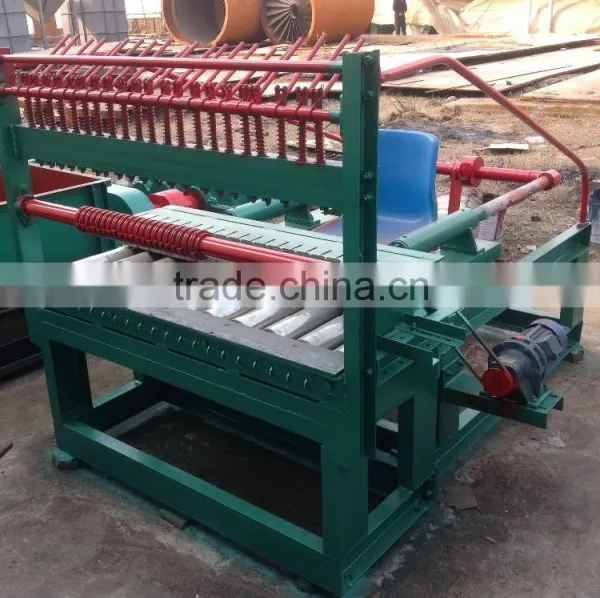

Cut Adobe Machine
Red Brick Making Machine
Product details:

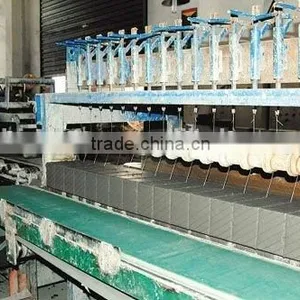

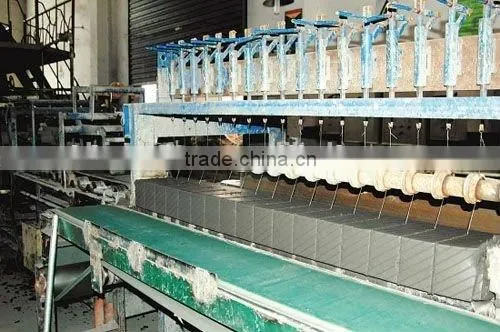

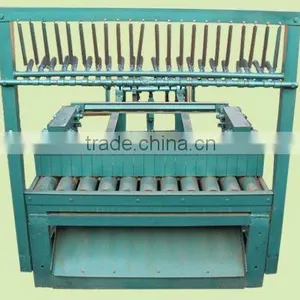

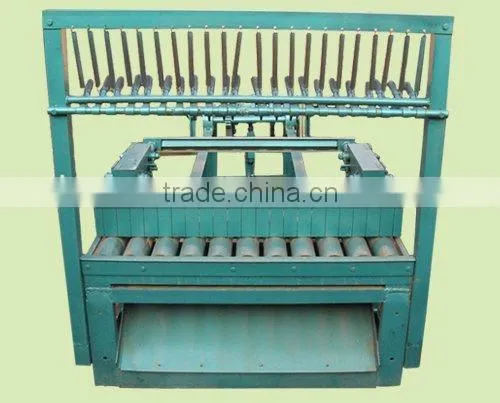

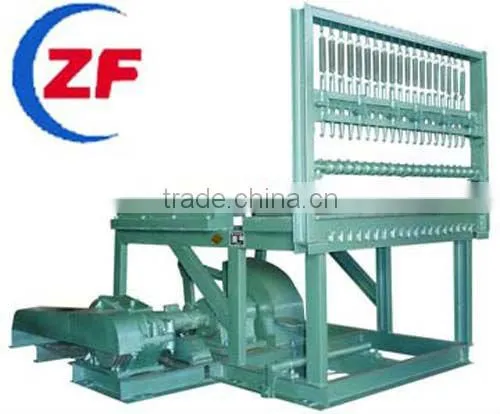

This kind of machine is used for cutting adobes according to technological need, adapted to electric tricycles for pulling unbaked bricks or by man, and plate trailer for unbaked bricks. We can also design and make other types of cutting machines according to users’ need. The cutting size can be adjusted and fixed exactly, positioning precision, cutting flat, smooth transit, sturdy and durable.
Structure characteristics:
1.Automatic freeing partial device, never cut obliquely, do not need to adjust.
2.Stainless steel drum dynamic table-board, mud bar can put in place automatically,
avoid waste mud, it can save oil than ordinary flat table-board.
3.Stainless steel push plate surface , the resistant gap, the work life can extend three times.
4.Orientation Angle with oriented arc make wire into groove accurately, it can reduce 70% wire for breaking on average.
5.High wear-resisting material craft, guide bar for hard chromium plating,
cooperate with composite guide bearing, small resistance, long service life.
6.High strength, big thrust ,applies for coal gangue and shale hard plastic and semi-plastic extruded products,
7.Suitable for all kinds of plastic & soft mud bar.
8.Even soft mud bar should be stated inadvance , using encryption roller table-board.
9.Push board maximum reciprocating frequency 41 times per minute. Can cut down and up double mud
bar,high block.
Technical parameters:
Model |
Air-operated strip cutter |
Synchronic cutting adobe machine |
Max.frequency |
22 times/min |
41 times/min |
Route |
|
430~460mm |
Platform height |
700mm |
700mm |
External size(L×W×H) |
1970×890×1030mm |
2000×1560×1700mm |
Weight |
0.24t |
1.4t |
Gongyi City Zhongfang machinery manufacturer company ltd. is a large brick machine manufacture and exporter. Our factory has around 100 workers and covers 26,000M2. We have 30-year experience specializing in double-stage, single-stage vacuum brick machine, energy-saving vacuum brick machine, non-vacuum cay brick machine, crusher, feeder, mixer, rolling screen, belt conveyor, hydraulic pusher, ferry car and other kiln auxiliary equipments. Our brick making machines are suitable for many kinds of materials, such as clay, shale, coal gangue, fly ash, etc. We also help to build brick plant & kiln, and provide strong technical support. Our products have passed ISO 9001: 2008 certificate and are sold very well in more than 20 provinces. They are also exported to Bangladesh, Sudan, Vietnam, Mongolia, Kazakhstan and other countries with high reputation from our clients.
FAQ
1.Can we help you provide the brick plant?
Yes,We can provide project design and feasibility study, sourcing reliable and suitable machinery accord the design, do the kiln construction and supervision .
2. What kind of material can be done brick?
Clay ,shale,coal gangue,industrial slag,oil shale etc.
3.Can we design kiln?
Yes , we can provide one-stop service and take whole responsibility. And we can provide clay brick making project design, kiln(oven) construction and project contracting
4. What is your delivery time?
Normally with delivery time within 30 days after deposit.
5 .Are you a factory or trading company?
We are the professional manufacturing factory and we have exported our block machines to many foreign countries.
6.Could you do blocks with our requirement sizes?
Yes, and please tell us your sizes, then we could design moulds accordingly
If you have any question ,please contact us for further information.
