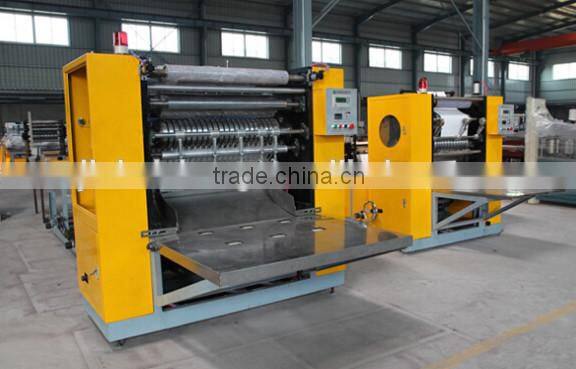

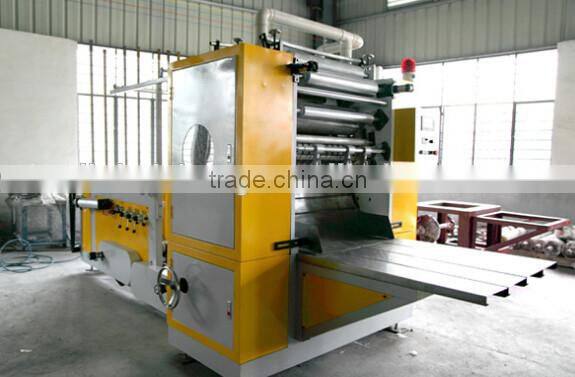

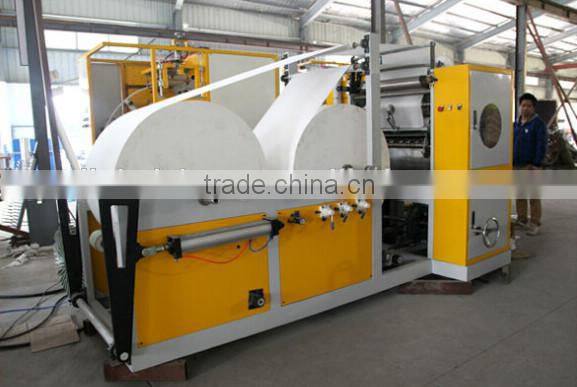

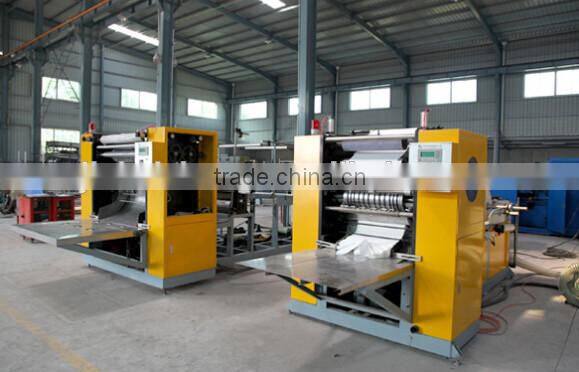

Automatic Facial Tissue Making Machine Price
1. Easy and simple to handle
2. High capacity
3. Non-pollution
4. Running stably
Facial Tissue Making Machine Main Functions:
1.Folding type: V type folding,paper in upper and lower positon are jointed and folded with auto counting unit and output in stack,folding with vcacuum adsorption.
2. Paper is conducted by spira cutting by sections with convenient adjustment in cutting tool
3.Unwinding of jumbo roll is pushed an fed by the flat belt,equipped with stepless speed regulator to adjust tension of unwinding.
4.Slitting width can be adjustable while products are in trim.
5. It can be equipped with embossment unit as per client's requirement
6. Adopt PLC and frequency speed regulator control
Model(Lane) |
2L |
3L |
4L |
5L |
6L |
Max raw Paper Roll Width |
420mm |
630mm |
840mm |
1050mm |
1260mm |
Raw Paper Material |
12-18g/m x 2layers |
||||
Max Raw Paper roll Dia |
Standard φ1100mm |
||||
Raw Paper Roll Core Dia |
3'(76.2mm) |
||||
Finished Products Opened Size |
(140,150,160-210)x(140-210)(mm) |
||||
Finished Products Folded Size |
(70-105)x(140-210)(mm) |
||||
Operate Speed(sheets/min) |
1600 |
2400 |
3200 |
4000 |
4800 |
Finished |
Production Rate≥98% |
||||
Mechanical Driving |
Driven by stepless frequency control system |
||||
Programme Controller |
PLC control,Touch Screen |
||||
Edge Embossing |
Steel to Steel,Independent Adjustment |
||||
Slitting Unit |
Full Cutting |
||||
Lubricating System |
Key Parts Regularly Lubricaing Automatically |
||||
Counting System |
Alternate Stack by Stack |
||||
Pneumatic System |
3HP Air Compressor, Mini Pressure 5kg/cm2 Pa |
||||
Paper Layer |
2-3Layer |
||||
Machine Speed |
60-100m/min |
||||
Vacuum System |
5.5kw |
7.5kw |
11kw |
13.5kw |
16kw |
Main Power |
2.2kw |
3kw |
4kw |
5.5kw |
7.5kw |
Machine Size(m) |
4.1x1.3x2.1 |
4.1x1.5x2.1 |
4.1x1.7x2.1 |
4.1x2x2.1 |
4.1x2.3x2.1 |
Weight(ton) |
1.8T |
2.2T |
2.6T |
3.0 T |
3.5T |
Packaging and shipment:
Factory:
We specialize in facial tissue machine, toilet paper machine, kinds of paper packing machine and baby diaper machine. Our designing team is very strong. We offer high quality machine for our customer, every part we use has quality certificate and electric parts we used is world brand.
The current production capacity is around 120 sets per month. We have comfortable staff quarters, and
every week we have staff training. In factory we have raw material warehouse, workshop production scen,equipment, sample display, laboratory, producing testing department. We will always do our best to provide high quality products and service to our customers.
Producing department:
Office:
Clients:
Certificate:
Install:
1) Don't need to install.
2) If need to installation and commissioning, we provide one technician to install, all the tickets and accommodation by the buyer
Guarantee & Service:
1) We shall guarantee that the goods, when correctly mounted and properly operated and maintained, shall give satisfactory performance for a period of 12 MONTHS counting from the date of its normal running or for 18 MONTHS after delivery.
2) One year for mechanical parts(excluding the easy damaged parts like knife, timing belt etc.), after-sales service is lifelong, and we offer the Shipping List
3) Online technical support for 24 hours
4) At preferential price long.
