Specifications

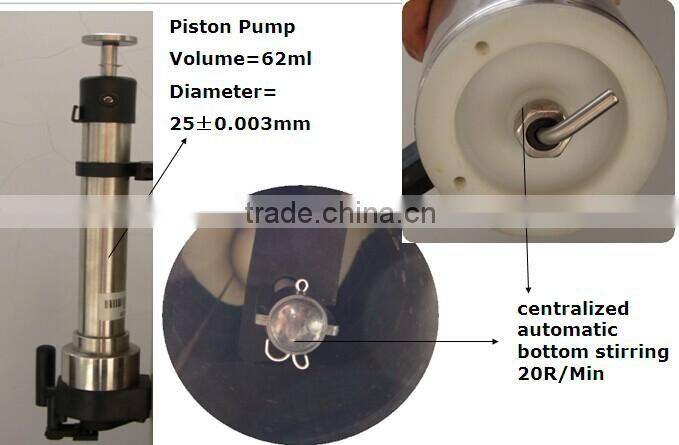

automatic paint color tinting equipment1Precise dispensing,
2Resorption keep nozzle from block
3Mixing motor keep colorant w
I. automatic paint color tinting equipment
The paint tinter is our new model for sequential dispensing and especially designed for small to medium retail operations with limited floor space available. It features well-known piston pump system (40ml/stroke), centralized automatic bottom stirring and attractive appearances.
II. automatic paint color tinting equipment Technical Specification
Item | Content | Item | Content |
Number of Canisters | 16/14/12/10/8/6 | Min Dispensing | 0.077ml(1Y/384) |
Max Flow Rate | 0. 60ltr/min | Canister Size | 3.8/2.3/1.8 Ltr |
Pump Size | 62mltr | Stirring Speed | 20RPM |
Power | 100W | Power Supply | 220V/110V±5% 50/60HZ |
Can Size (D x H) | Max320X450mm | Stirring Timing | Stir 10 minutes every 4 hours |
Min80X100mm | |||
Noise Level | <70dBA | Weight: | 175±3 kg |
Machine Size (HxWx D) | 720X840X1300(mm) | ||

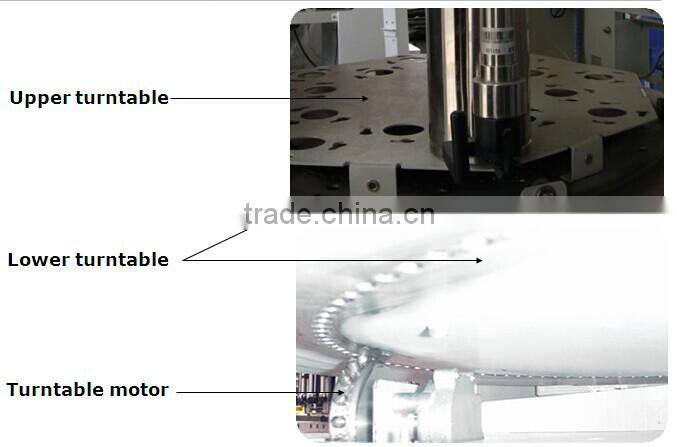

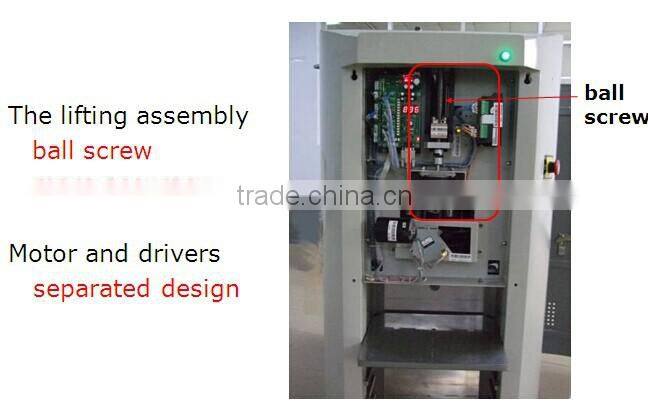

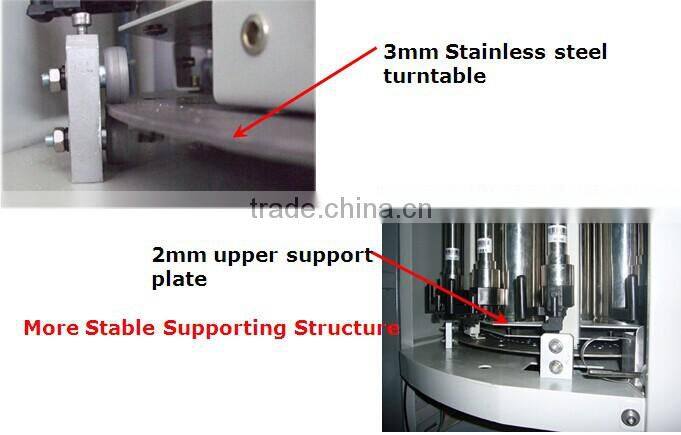

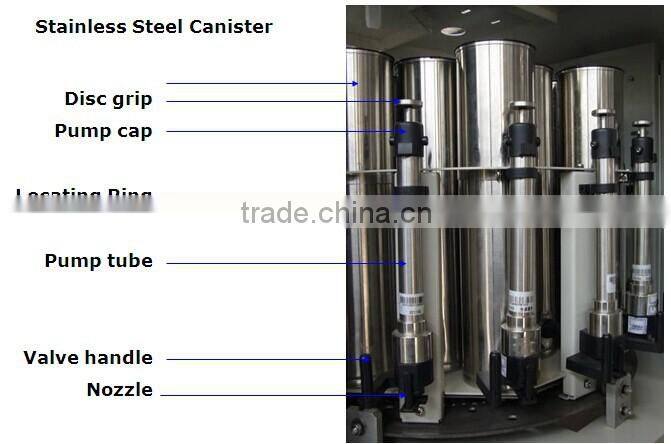

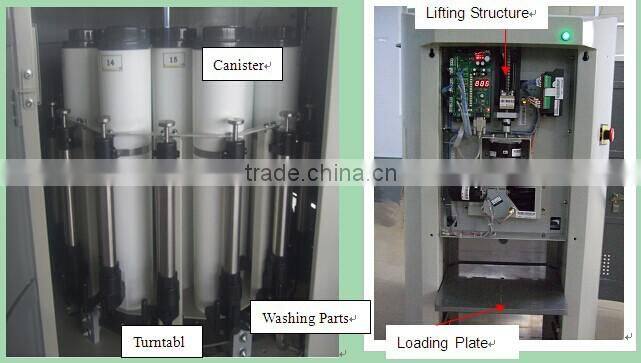

III. automatic paint color tinting equipment Main Composition
IV. Paint tinter Software

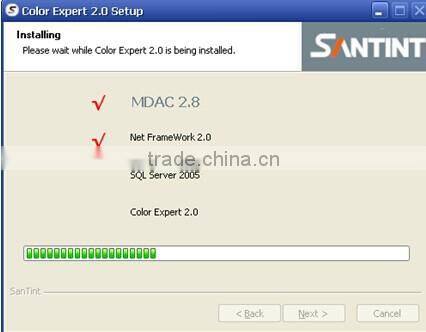

a.installation

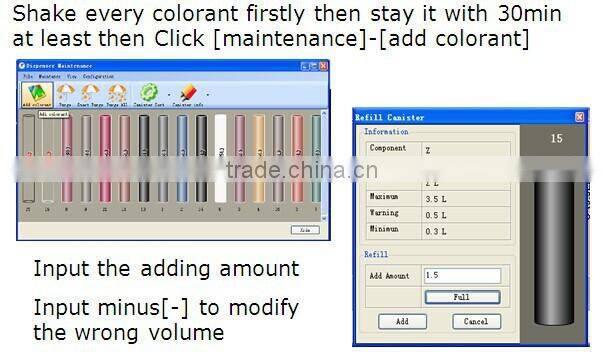

b. fill colorant

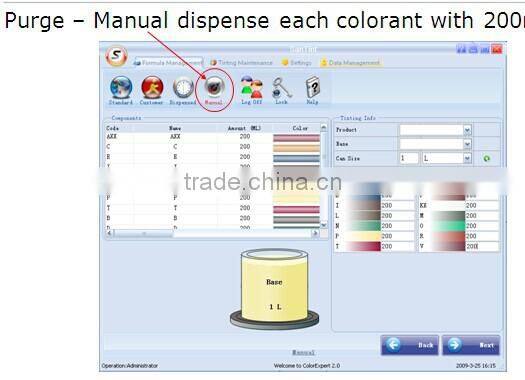

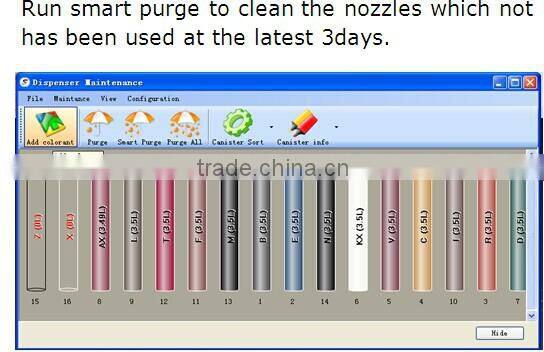

c. purge and clean

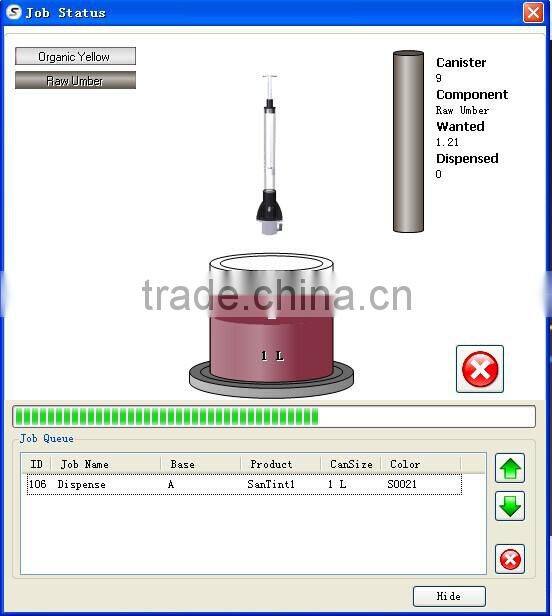

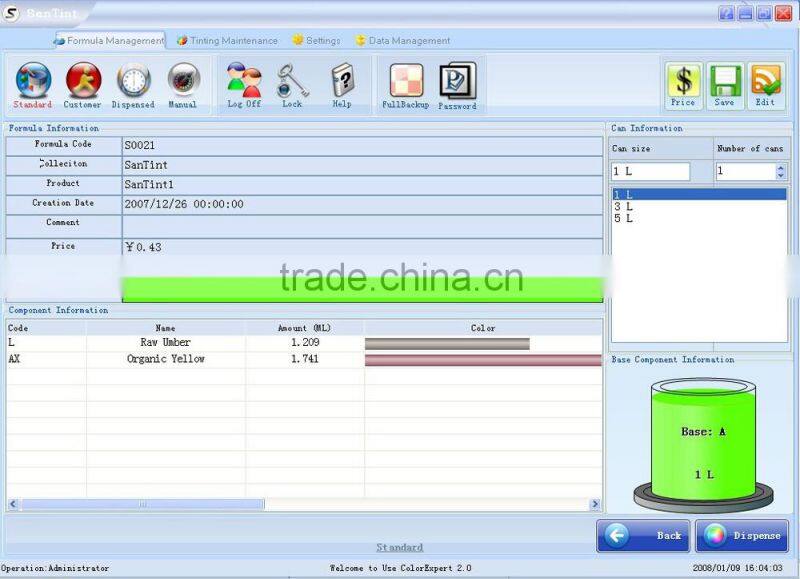

d.dispense and tinting

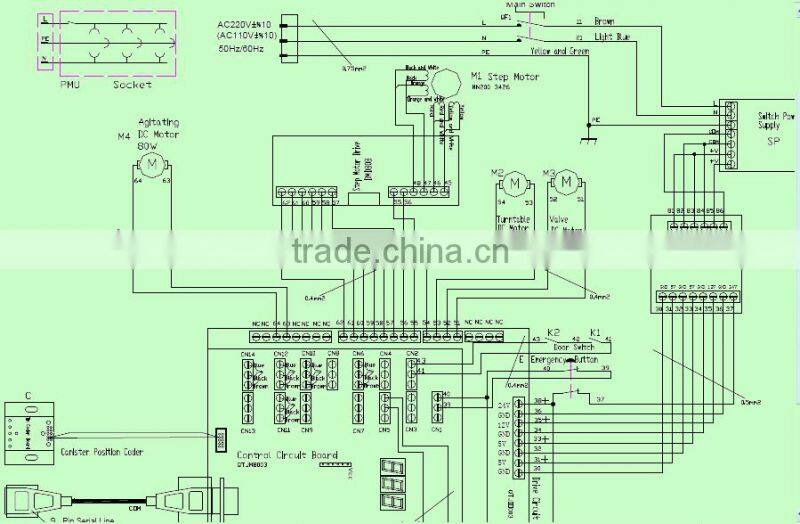

V. Paint tinter Electric Diagram.
VI.Trouble Shooting
Problem | Cause | Action |
Stirring motor doesn’t work. | 1. A4 is not power on. 2. Fuse is broken. 3. Motor is not connected. 4. Motor is broken. | 1. Check the power. 2. Change the fuse. 3. Open the side door, reconnect wire. 4. Change the motor. |
Colorant dispense out not continually. | 1. There is air in the pump cylinder. 2. Colorant level is too low. 3. Colorant is dry and blocked. | 1. Purge cylinder. 2. Add colorant. 3. Clean canister. |
Canister is loosed. | Fasten screw is loosed. | Fasten screw. |
Dispensing colorant is difficult. | 1. Nozzle is blocked. 2. Valve motor is broken. 3. Valve handle cannot open. | 1. Clean Nozzle. 2. Change valve motor. 3. Adjust the motor and valve position. |
Piston difficult to move.
| 1. Colorant is dried inside. 2. Screw drive and guiding rod are not lubricated. 3. Fastening screw is loosed. | 1. Empty colorant, clean canister and pump cylinder. 2. Lubricate screw drive and guiding rod 3. Fasten screw. |
Abnormal noise from step motor. | 1. Voltage is out of normal range. 2. Screw drive and guiding rod are not lubricated. 3. Fastening screw is loosed. | 1. Check the power supply. 2. Lubricate screw and guiding rod 3. Fasten screw. |
Colorant appears on the nozzle. | Sealing washer is damaged. | Change sealing washer. |
LCD shows “Emergency Button Pressed”. | 1. Emergency button is pressed. 2. Emergency button is broken or the wire is disconnected. | Release emergency button. Replace emergency button or connect wire. |
LCD shows “Door Open”. | The door is not closed well. | Close the door. |
