home use silent type , small power Weichai 12kw 15kva diesel generators
- 30 Set / Sets per Month
- SHANGHAI Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | CHENLONG | Model Number: | CLW-12WG |
Output Type: | AC Three Phase | Speed: | 1500RPM | Frequency: | 50HZ AC |
Rated Power: | 12KW | Rated Voltage: | 400V/230V | Rated Current: | 21.6A |
Product Description

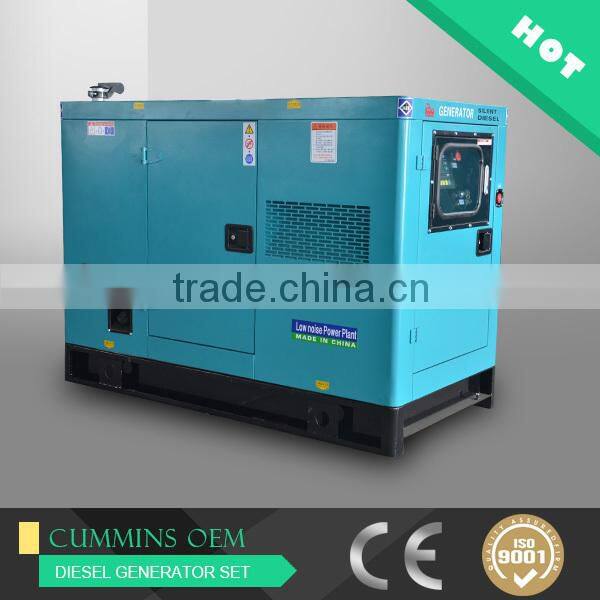

Features of silent type diesel generator
1.Beatiful shape, rational construction,
2.The canopy is made by steel plate, nice performance, rain-proof, the gen-sets can work in any rugged environment
3.Perfect sound-proof, the inner of the canopy is made use of Fire-resistant acoustic cotton textile(high, mid &low frequency)to effectively reduce the noise spread. the exhaust pipe is packec by the insulation material, the noise can be reduced with in 72db(A)
4.doors&windows: int the front has hopper window, and in the back has the split door, the operater can do operation from the doors.
5.lighting: the inner canopy has blast-proof ceiling light, and work table with the desk lamp at right side, all convenient for operating.
MODEL CLW-12WGS
home use silent type , small power Weichai 12kw 15kva diesel generators
Technical specification
The data for the 15kva diesel generators | ||
1.1 | model | CLW-12WG |
1.2 | Rate voltage | 400V/230V 3phases and 4 wires |
1.3 | Output power | 12KW/15KVA |
1.4 | Power Factor | 0.8(lagging) |
1.5 | Frequency | 50HZ AC |
1.6 | Current(A) | 900 |
1.7 | Dimension(L*W*H) | 2200mm*1000mm*1460mm |
1.8 | Weight(KGS) | 1030 |
1.9 | The regulating rate of steady voltage | ≤±0.5% |
1.10 | The regulating rate of instantaneous | ≤-15%/ +20% |
1.11 | The time of steady voltage | ≤1.5sec |
1.12 | The waving rate of voltage | ≤1.0% |
1.13 | The regulating rate of steady frequency | ≤3% |
1.14 | The regulating rate of instantaneous | ≤±10% |
1.15 | The time of steady frequency | 3sec |
The data for the engine | ||
2.1 | Brand | WEICHAI |
2.2 | Model | K4100D |
2.3 | Engine structure | In line 4 cylinder, 4 stroke |
2.4 | Bore*Trip | 100mm*115mm |
2.5 | Displacement | 3.6L |
2.6 | Lube Capacity | 10L |
2.7 | Fuel Consumption | 236g/KW.H |
2.8 | Cooling method | water cooling, Radiator for ambient temp 40℃, |
2.9 | Governor System | precise electrical governor system |
2.10 | Starting method | electric |
2.11 | Filter system | dry type air filter, fuel filter, oil filter |
The data for the Alternator | ||
3.1 | Excite Type | Brushless |
3.2 | No load voltage | ≥95%105% |
3.3 | Steady voltage | ≤±1% |
3.4 | Insulation degree | H degree |
3.5 | Enclosure degree | IP23 |
Control Panel | ||
The control panel is standard control panel, it is the LCD panel , with the display of voltage, current,
frequency, water temperature, oil pressure
|
Relative photos
CHENLONG diesel generator sets company is the professional manufacture in China mainland. We have modernize assembling workroom, and focus on the diesel generatore sets like soundproof type (3KW-1500KW), containerized rainproof type (3KW-1500KW), mobile power plant type(3KW-1500KW), automatic type, multiple incorporative type, remote centrallizing monitoring type.
About ENGINE for alternative
1.CUMMINS (original or JVC)
2.PERKINS (original or JVC
3.DEUTZ (original or JVC)
4.VOLVO PENDA (original or JVC)
5. MTU (original)
6.MITSUBISHI (original)
7.DOOSAN (original)
8.GOOGOL (JVC)
9.WEICHAI (home brand)
10.SHANGCHAI (home brand)
11JICHAI (home brand)
12.SHANGCHAI (home brand)
13.YUCHAI (home brand)
14WUDONG (home brand)
About MOTOR for alternative
1.STAMFORD
2.MARATHON
3.SHANGHAI HENGSHENG
About CONTROL for alternative
1.Deepsea
2.ComAp
3.Harsen
4.Smartgen
Before sales service
According to clients requirements, we recommend the cost-effective power sets, assist clients to lay out the machinery room and assemble the equipment.
Under sales service
For better using and maintaining, we offer the free training session on site in our company.
After sales service
We build the data for following up service and periodic inspection. And we have the quick reaction service department what can resolve clients every question and trouble. We can say FINISH the order when the clients satisfy with our service.
What’s the Frequency of the diesel generator sets?
50HZ AC, 60HZ AC
What’s the Voltage of the diesel generator sets?
380V/220V,400V/230V or as requirement
What’s your power scope of the diesel generator sets?
3KW --2000KW
What’s the type about your control?
We have five types, Ordinary integrative, Quadruplication protection control panel, Auto start-up control panel, Automatic cnotrol panel and Automatic parallel synchronizing control panel.
Which industries need the diesel generator sets?
Building, Hospital, Telecom, Banks,Train station,Metallurgical & Mining,Municipal Engineering and so on.
What’s your payment&delivery time?
T/T, L/C, West union.
Generally, we delivery the goods with in 7workdays after your deposit arrive in our account.
What’s your warranty?
12 months or 1000 hours of warranty time for all of our products. We take all responsibility only in the fault what is created by the quality,not include in the wearing-parts, daily consumables and human error of operating & maintenance.
