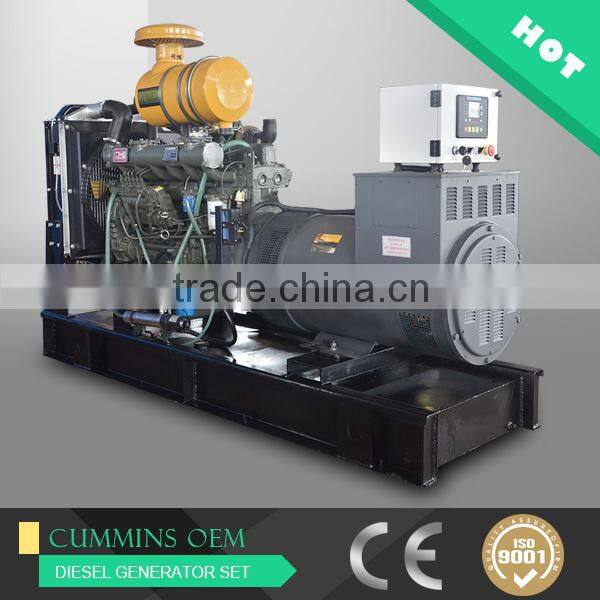

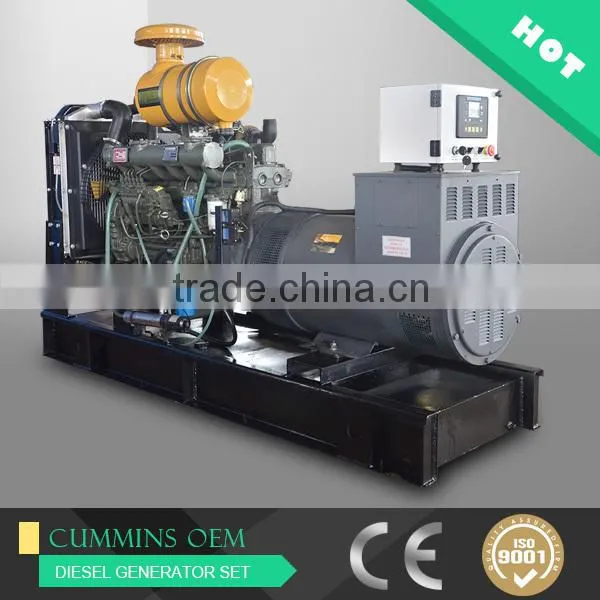

Lower Price Better Quality, Chinese Famous Brand, Weichai, 30kw Diesel Generator Sets
Weichai is the Chinese famous brand diesel generator sets, adopts four stroke direct injection diesel engine, small size, large power, The generator is STC series or brushless series of three times harmonic wave self-excitation constant pressure, strong motor-start ability, fine apperance and reliable performance, low price best quality can satisfy all user.
MODEL: CLW-30WG 37.5KVA Diesel generator, with lower price better quality
1.Components of Weichai 30KW Diesel generator sets(OPEN STYLE)
1a. Diesel engine
1b. Alternator
1c. Control panel
1d. The accessories, Wave pipe, Curved Pipe, Muffler, Accumulator, The connecting wires, Shock absorber spacer, Bellows, Documents and data and so on
2.Technical specification
The data for the power generator | ||
1.1 | model | CLW-30WG |
1.2 | Rate voltage | 400V/230V 3phases and 4 wires |
1.3 | Output power | 30KW/37.5KVA |
1.4 | Power Factor | 0.8(lagging) |
1.5 | Frequency | 50 HZ AC |
1.6 | Current(A) | 54 |
1.7 | Dimension(L*W*H) | 1650mm*700mm*1120mm |
1.8 | Weight(KGS) | 3900 |
1.9 | The regulating rate of steady voltage | ≤±0.5% |
1.10 | The regulating rate of instantaneous | ≤-15%/ +20% |
1.11 | The time of steady voltage | ≤1.5sec |
1.12 | The waving rate of voltage | ≤1.0% |
1.13 | The regulating rate of steady frequency | ≤3% |
1.14 | The regulating rate of instantaneous | ≤±10% |
1.15 | The time of steady frequency | 3sec |
The data for the engine | ||
2.1 | Brand | Weichai |
2.2 | Model | WP3.9D33E2 |
2.3 | Engine structure | In line 4 cylinders, 4 stroke |
2.4 | Bore*Trip | 100mm*115mm |
2.5 | Displacement | 3.6L |
2.6 | Lube Capacity | 10L |
2.7 | Fuel Consumption | 236g/KW.H |
2.8 | Cooling method | water cooling |
2.9 | Governor System | machinery |
2.10 | Starting method | electric |
2.11 | Filter system | dry type air filter, fuel filter, oil filter |
The data for the Alternator | ||
3.1 | Excite Type | Brushless |
3.2 | No load voltage | ≥95%105% |
3.3 | Steady voltage | ≤±1% |
3.4 | Insulation degree | H degree |
3.5 | Enclosure degree | IP23 |
Control Panel | ||
The control panel is standard control panel, it is the LCD panel , with the display of voltage, current, frequency, water temperature, oil pressure | ||

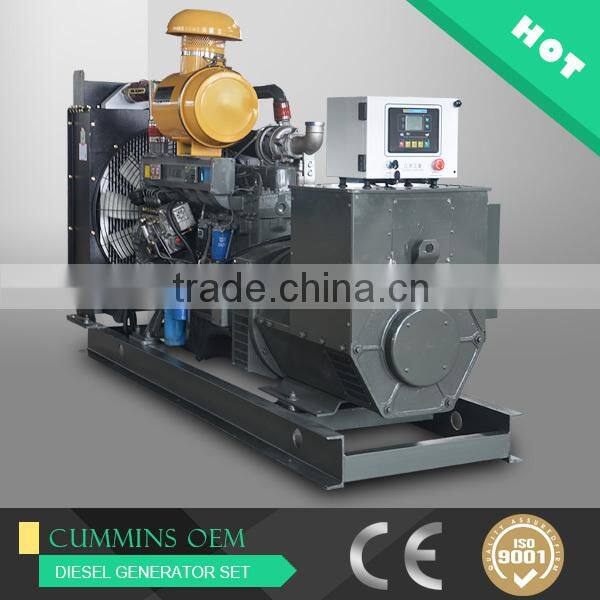

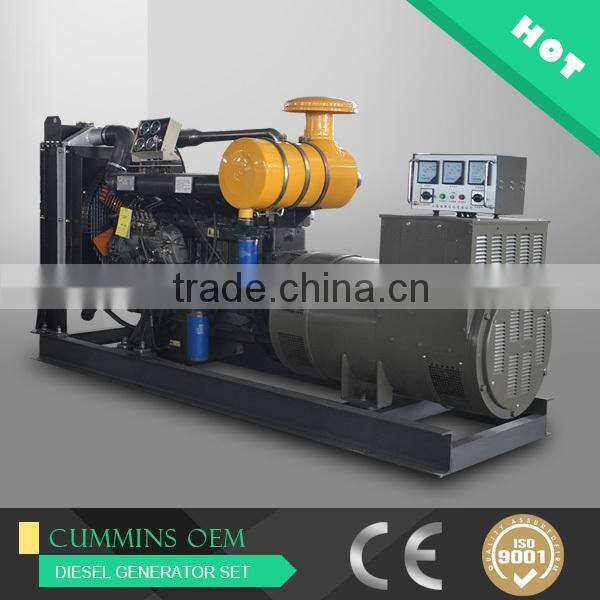

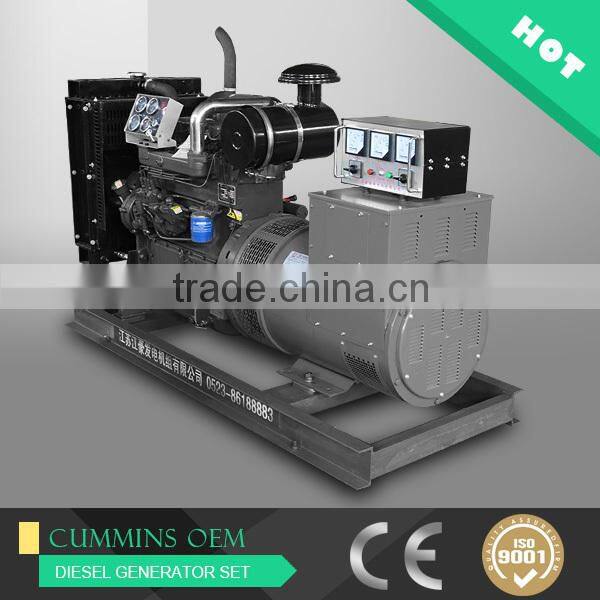

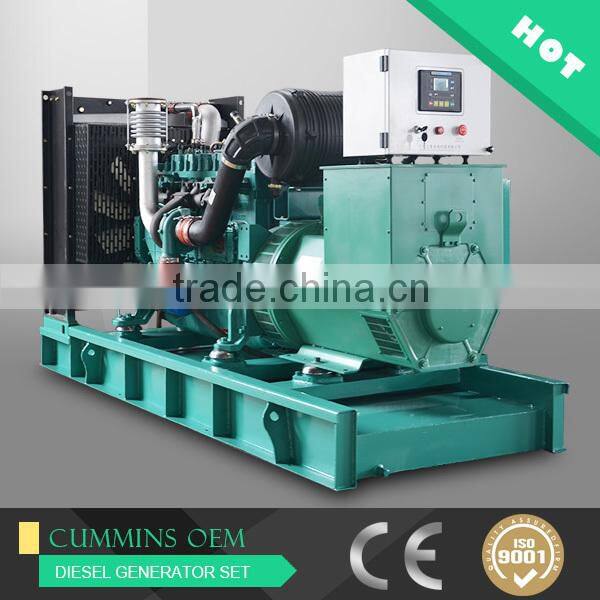

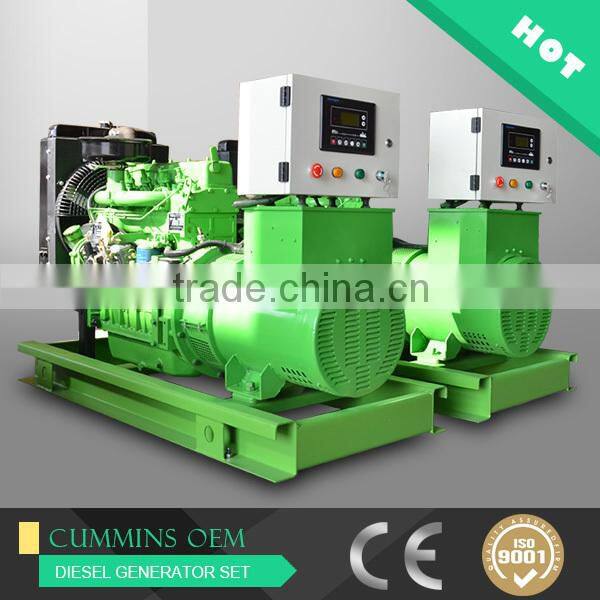

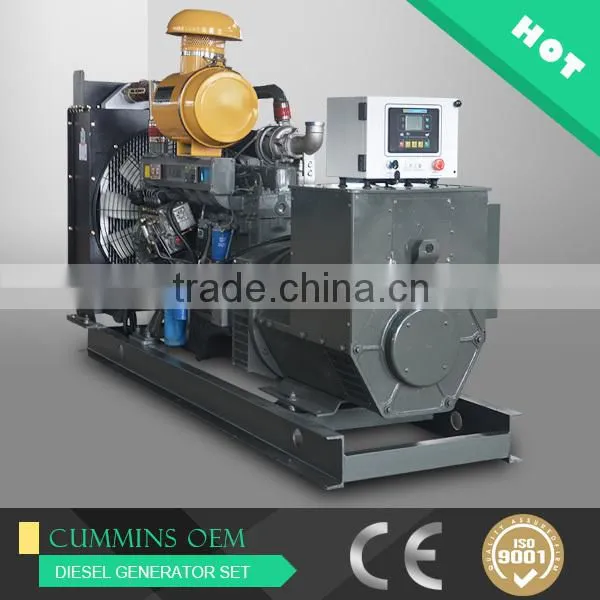

Relative model photos
MODEL CLW-50WG 50 KW Weichai diesel generator
MODEL CLW-100WG 100 KW Weichai diesel generator
MODEL CLW-200WG 200 KW Weichai diesel generator(huayaun)
MODEL CLW-200WG 200 KW Weichai diesel generator(longxin)
MODEL CLW-200WG 200 KW Weichai diesel generator(dongli)
CHENLONG diesel generator sets company is the professional manufacture in China mainland. We have modernize assembling workroom, and focus on the diesel generatore sets like soundproof type (3KW-1500KW), containerized rainproof type (3KW-1500KW), mobile power plant type(3KW-1500KW), automatic type, multiple incorporative type, remote centrallizing monitoring type.
Before sales service
According to clients requirements, we recommend the cost-effective power sets, assist clients to lay out the machinery room and assemble the equipment.
Under sales service
For better using and maintaining, we offer the free training session on site in our company.
After sales service
We build the data for following up service and periodic inspection. And we have the quick reaction service department what can resolve clients every question and trouble. We can say FINISH the order when the clients satisfy with our service.
What’s the Frequency of the diesel generator sets?
50HZ AC, 60HZ AC
What’s the Voltage of the diesel generator sets?
380V/220V,400V/230V or as requirement
What’s your power scope of the diesel generator sets?
3KW --2000KW
What’s the type about your control?
We have five types, Ordinary integrative, Quadruplication protection control panel, Auto start-up control panel, Automatic cnotrol panel and Automatic parallel synchronizing control panel.
Which industries need the diesel generator sets?
Building, Hospital, Telecom, Banks,Train station,Metallurgical & Mining,Municipal Engineering and so on.
What’s your payment&delivery time?
T/T, L/C, West union.
Generally, we delivery the goods with in 7workdays after your deposit arrive in our account.
What’s your warranty?
12 months or 1000 hours of warranty time for all of our products. We take all responsibility only in the fault what is created by the quality,not include in the wearing-parts, daily consumables and human error of operating & maintenance.
