Specification
100kva generation
With VOLVO engine TAD530GE
Strong loading capacity
Nice cold-start perfomance
Less oil consumption

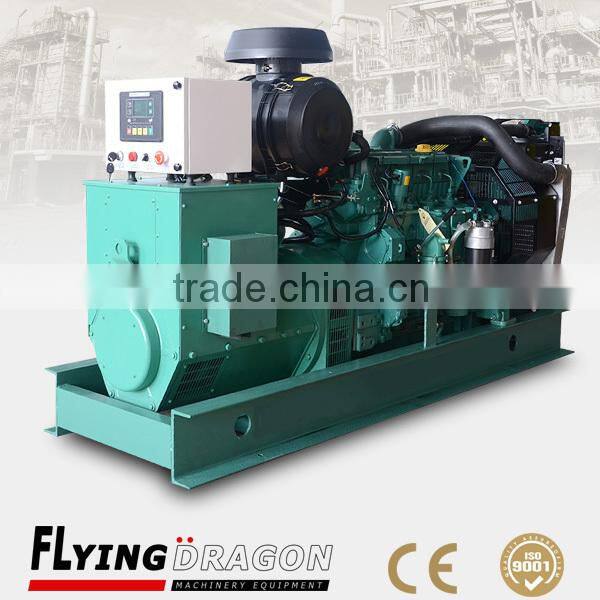

Strong loading capacity 80kw diesel power genset 100kva industrial power generation with Volvo Penta engine
100kva generation is adopted environment-friedly diesel engine, it meets the emssion standard EU Ⅱor Ⅲ and also the EPA.It adopts the advanced design idea and technology, featured with good economic performance, low oil consumption, small volume, compact structure, great power and running stabilty.
The main parameter list of 100kva generation
| GENSET DATA of 100kva generation | |
| Item no.: | CLV-80VG |
| Output power: | 80KW/100KVA |
| Standby power: | 89KW/111.25KVA |
| Power factor: | Cos=0.8(lagging) |
| Rated voltage: | 400V/230V |
| Rated frequency: | 50HZ AC |
| Rated current: | 144A |
| Fuel: | Diesel |
| The regulating rate of steady voltage: | ≤±0.5% |
| The regulating rate of instantaneous voltage: | ≤-10/+15 |
| The time of steady voltage: | 1.5 sec |
| The waving rate of voltage: | ≤0.5% |
| Voltage waveform distortion degree: | ≤5% |
| The regulating rate of steady frequency: | ≤±2% |
| The regulating rate of instantaneous frequency: | ≤±5% |
| The time of steady frequency: | 3 sec |
| The waving rate of frequency: | ≤±0.5% |
| Fuel consumption for full load(g/kw.h): | 216 |
| Overall dimension (L*W*H) (mm*mm*mm): | 2100*700*1450(open type) 3300*1400*1950( with silent canopy) |
| Weight(kgs) | 1050(open type) 2000(with silent canopy) |
| THE ENGINE DATA OF 100kva generation | |
| Brand & model: | VOLVO PENTA TAD530GE |
| Configuration: | 4-cycle, in-line 4-cylinder waste gas turbine boost,direct spurting type |
| Aspiration | Turbocharge |
| Engine rotating speed: | 1500 RPM |
| Compression ratio | 13.9:1 |
| Cooled way: | Radiator cooled, fans driven by belt, with safety guard |
| Start way: | DC 24V charge battery |
| Governor system | precise electric governor system |
| Filter system: | Air filter, oil filter, fuel filter |
| Bore *Trip(mm*mm): | 108*130 |
| Displacement(L): | 4.76 |
| Lube capacity(L): | 13 |
| THE ALTERNATOR DATA OF 100kva generation | |
| Brand: | Stamford, Marathon,Hengsheng (optional) |
| Structure: | Brushless single bear 4 poles drip-proof |
| Excited type: | Self excited |
Voltage regulating type: |
Automatic voltage regulating |
| The connecting way of phase: | 3 phase 4 wires Y connecting |
| Winding: | 100% copper |
Insulation degree: |
H |
| Protection grade: | IP23 |
| TIF: | <50 |
| THF: | <2% |
| THE CONTROLLER DATA OF 100kva generation | |
| Brand: | Smartgen, Harsen, Deepsea, ComAP (optional) |
| Type: | Standard equipment, Auto start and stop, Auto transfer between mains and gensets |
| The controller panel is LCD panel, it can display a variety of electricity and oil machine parameters in Chinese and English; with automatic and manual, shutdown(Emergency stop) etc. control functions, it can protect aganist low oil presssure, high temperature, low or high voltage, high or low frequency, over current etc. can meet the needs of various gensets. | |
Package of Strong loading capacity 80kw diesel power genset 100kva industrial power generation with Volvo Penta engine
Usually, it is with plywood case.
Shipping of Strong loading capacity 80kw diesel power genset 100kva industrial power generation with Volvo Penta engine
We ship the goods by sea after receiving the balance.
Service of Strong loading capacity 80kw diesel power genset 100kva industrial power generation with Volvo Penta engine
- Free loading capacity analysis
- Free technology consulations
- Free testing and debuging
- 12 months or 1000 hours warranty service
- Spare parts offered
- OEM service buyer label offered
- 24/7 on-line technical serivce
Products show
What's the frequency of the diesel generator sets?
50HZ AC or 60HZ AC.
What's your voltage of the diesel generator sets?
380V/220V,400V/230V or as requirement.
Which industries need the diesel generator sets?
Building, Hospital, Telecom, Banks, Train station, Metallurgical & Mining, Municipal Engineering and so on.
What's your payment & delivery time?
T/T, L/C, West union.
Generally, we delivery the goods within 7 working days after receiving your deposit.
What's your warranty?
12 months or 1000 hours of warranty time for all of our products, not include the wearing-parts, daily consumable and human error of operating & maintenace, but we can offer the cheaper spare parts than other factory.
