Our Diesel Generator Production Range is as follows:
* Engine (motor) for Choice
Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA
Perkins Engine(UK) 8KVA - 2000KVA
Volvo Engine(Sweden) 85KVA - 700KVA
Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA
Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA
Shanghai Engine (China) 60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA

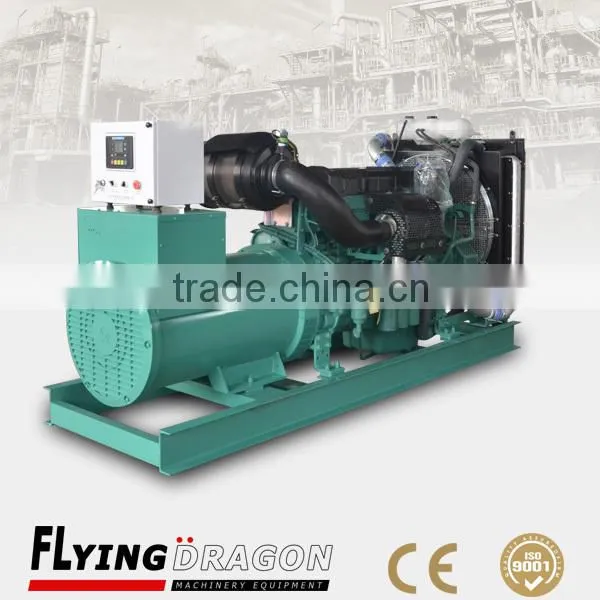

Volvo 3 phase 625kva gensets
are environmental-friendly generators,it meets the emission standard EU II or III and also the EPA.
Its E-jet diesel engine is from Volvo Group in Sweden which established in 1927,and hi-quality,
safety,environmental protection is the core value for this brilliant company over the years.Volvo series has the features of nice cold-start performance,strong loading capacity,small volume,less oil
consumption as well as long service time.
625kw electrical power plant price 500 kw power genset factory 500kw generator
1. The main parameters of 500kw generator | |
The model of the unit: |
CLV-500VG |
Power: |
500KW/625KVA |
Rated voltage: |
380V/220V |
Rated current: |
900A (adjustable) |
Rated frequency: |
50Hz/60Hz |
The factor of rated power |
COS=0.8(lag) |
The regulating rate of steady voltage: |
≤±0.5% |
The regulating rate of instantaneous voltage: |
≤-10%/ +15% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤0.5% |
The regulating rate of steady frequency: |
≤3% |
The regulating rate of instantaneous frequency: |
≤±5% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤0.25% |
The waste of fuel with full load: |
199g/kw/h |
size(mm): |
3350*1350*1950 |
weight: |
3600KG |
2.The main parameters of the 500kw generator engine | ||
Brand: |
VOLVO |
|
Model: |
TAD1643GE |
|
Type: |
four strokes, waste gas turbine boost,direct spurting type |
|
Cooling way: |
water cooling |
|
With Type: |
Inline type |
|
Bore *Trip : |
144mm*165mm |
|
Displacement |
16.12L |
|
Lubricating oil capacity: |
48L |
|
Cylinder: |
6cylinders |
|
Rotating speed: |
1500r/min or 1800r/min |
|
The regulation of rotating speed: |
E-Speed |
|
Starting way: |
DC24V starting with electricity |
|
3.The main parameters of the alternator for the 500kw generator | |
Brand: |
ComAp,Stamford,Marathon |
Type: |
brushless (AVR automatic voltage regulating) |
The connecting way of the phase: |
three phases four lines |
Insulation degree: |
H degree |
Grading Protection: |
IP21/23 |
Main Parts Feature:
Engine Feature for 500kw generator
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
Alternator Feature for 500kw generator
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
Control System Feature for 500kw generator
1.manual / auto start and protection module
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.
3.New integrated controllers in manual and remote start application.
4.Featuring full gen-set monitoring and protection.
5.Powerful graphic display, Icons, symbols and bar graphs
6. High functionality set new standards in gen-set control.
Our 500kw generator service quality assurance:
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and
optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent
maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
Our Products display
1.Open type for Cummins generator 50kva
2.Silent type for Volvo generator 350kva
3.Rainproof type for Volvo generator 350kva
4.Trailer type for Volvo generator 250kva
5.Container type for Cummins generator 1mw
1.What's your power range of diesel generators?
Answer: We can offer the range from 5kva~3000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T, L/C,and 30% T/T as the deposit,the balance payment should be
paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty or 1000 hours which comes first.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6.What’s the frequency of diesel generators?
Answer: 50/60HZ
7.Do you have single phase or three phase diesel generators?
Answer: Yes,we have single phase and three phase diesel generators.
8.What’s the voltage of your diesel generator?
Answer:Generally,the voltage is 220/380V,230/400V,240/415V or according to your
requests.
