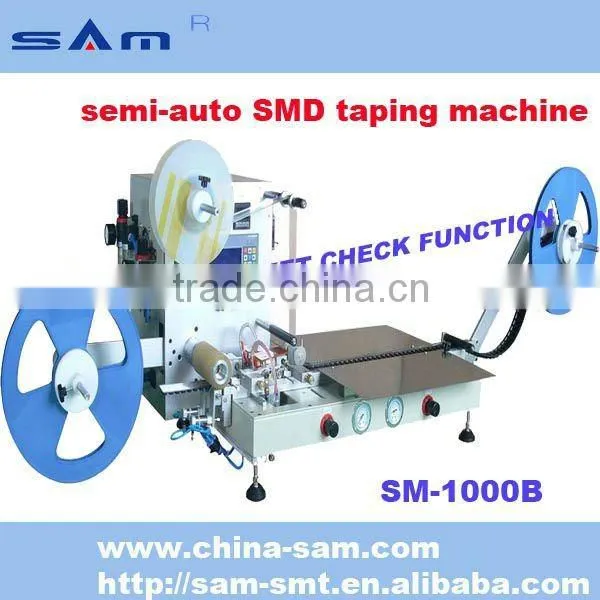

SM-1000B Leak Detection Semi-auto SMD Taping MachineUS$ 3,000 - 4,000MOQ: 1 Set
-
SM-1000B Leak Detection Embossed Taping MachineUS$ 3,000 - 4,000MOQ: 1 Set
Specifications
1.low-cost solution for packaging 8-72 mm width carrier tape2.easy operate
3.Taping speed: 3000-7000pcs/hr,denpend on parts.

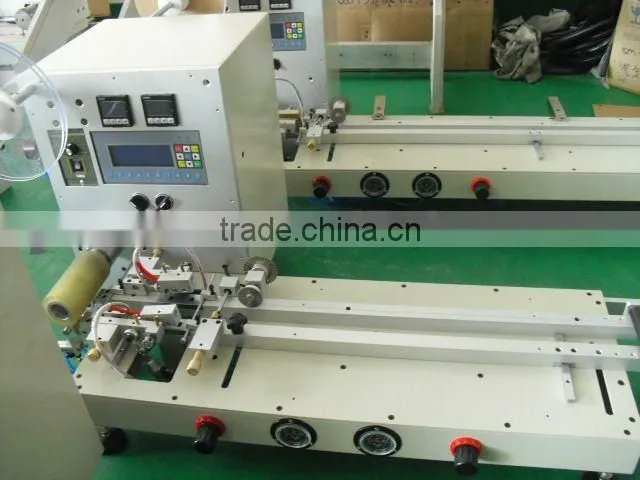

Semi-auto SMD taping machine
Features:
1, Track width can work freely in the range of 8mm to72mm, the screen is easy and convenient for operate and control.
2, Fine adjustment head installed in hot-press device, adjustment of sealing position can accurate to±0.1mm, independent PID temperature control accurately and steadily.
3,The position of cover tape can make fine adjustment by adjust the tension of the moving cover tape, count by fiber-optical sensitive and equipped with leakage detection make braiding accurately.
4, Moving tape speed can be adjusted continuously and control by pedal, compatible with all ELA-481 standard plastic reels.
Specifications:
Mchine Dimension: |
1650(L)*460(W)*580(H)(MM |
Feeding: |

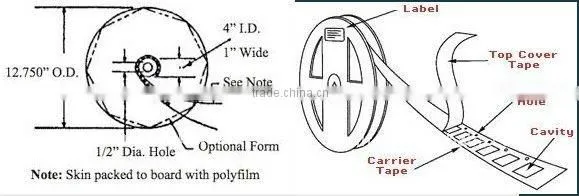

suitable with ELA-481 standard wheel and cover tape |
Power supply: |
AC200V50HZ |
Pressure: |
3.0kg/cm2 |
Temperature control: |
two heads and independent PID temperature control, temperature range is 20-200°C |
Taping speed: |
3000-7000PCS/hr. According to specific Component |
Calculator: |
count by fiber-optical sensitive |
Package type: |
self adhesive or hot sealing |
Weight: |
50KG |
System Operation Plantform
Heating device
Work plant
Unfinished machine
