Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > SM-1000B Leak Detection Semi-auto SMD Taping Machine

SM-1000B Leak Detection Semi-auto SMD Taping Machine

SM-1000B Leak Detection Semi-auto SMD Taping Machine photo-1
US$ 3,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Other, plastic /PS
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Machinery & Hardware
Packaging Type Other, plastic /PS
Packaging Material Other, electronic parts/component
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Power AC200V50HZ
Place of Origin Guangdong, China
Brand Name SAM
Model Number SM-1000B

Specifications

1.low-cost solution for packaging 8-72 mm width carrier tape
2.easy operate
3.Taping speed: 3000-7000pcs/hr,denpend on parts.

Feature:

1,Track width can work freely in the range of 8mm to 72mm,the screen is easy and convenient for operate and control.

2, Fine adjustment head installed in hot-press device, adjustment of sealing position can accurate to 0.1±mm,independent PID temperature control accurately and steadily.

3,The position of cover tape can make fine adjustment by adjust the tension of the moving cover unt by fiber-optical sensitive and equipped with leakage detection make braiding accurate.

4,Moving tape speed can be adjusted continuously and control by pedal,compatible with all ELA-481 standard plastic reels.





Specifications:

Mchine Dimension:

1650(L)*460(W)*580(H)(MM

Feeding:

suitable with ELA-481 standard wheel and cover tape

Power supply:

AC200V50HZ

Pressure:

3.0kg/cm2

Temperature control:

two heads and independent PID temperature control, temperature range is 20-200°C

Taping speed:

3000-7000PCS/hr. According to specific Component

Calculator:

count by fiber-optical sensitive

Package type:

self adhesive or hot sealing

Weight:

50KG

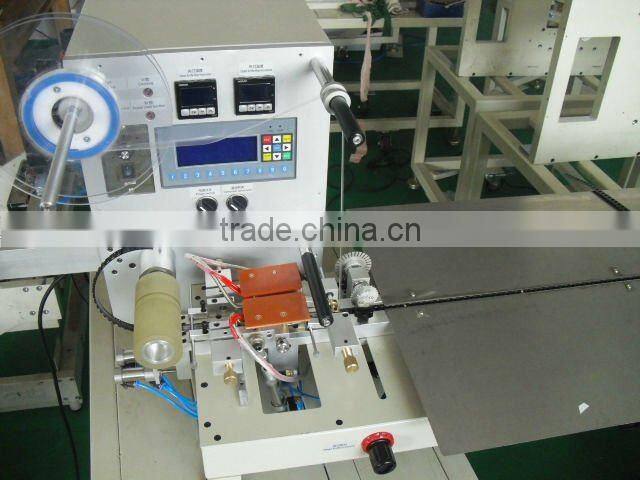

Parts display



SM-1000B leak detection Semi-auto SMD taping machineSM-1000B leak detection Semi-auto SMD taping machine

SM-1000B leak detection Semi-auto SMD taping machine SM-1000B leak detection Semi-auto SMD taping machine





SM-1000B leak detection Semi-auto SMD taping machine

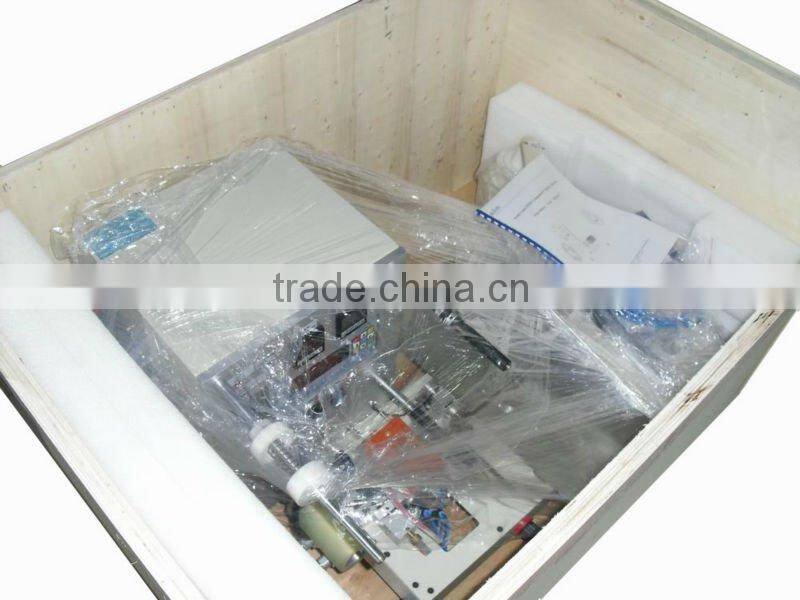

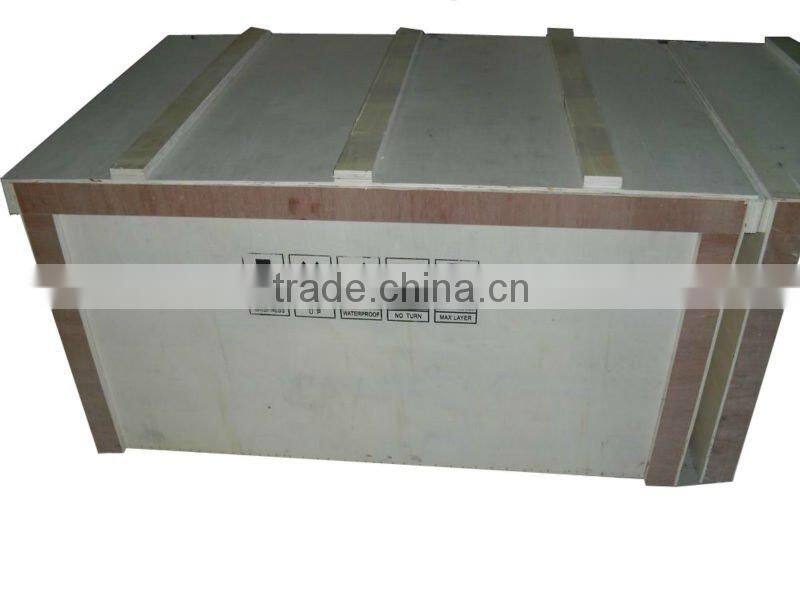

Package:

SM-1000B leak detection Semi-auto SMD taping machineSM-1000B leak detection Semi-auto SMD taping machine
